Time Constant Calculator

Calculate the time constant of RC and RL circuits and visualize how voltage or current changes over time. Enter resistance, capacitance or inductance to see charge, discharge and transient response curves.This calculator is part of Xindustra’s Industrial Electrical Calculation Tools, a collection of practical calculators designed for electrical and automation applications.

Input
Voltage (V)
Capacitance (C)
Load Resistance (R)
Output
Time Constant (τ)
s
Energy (E)
J
FORMULA
E = V² × C 2
τ = R C

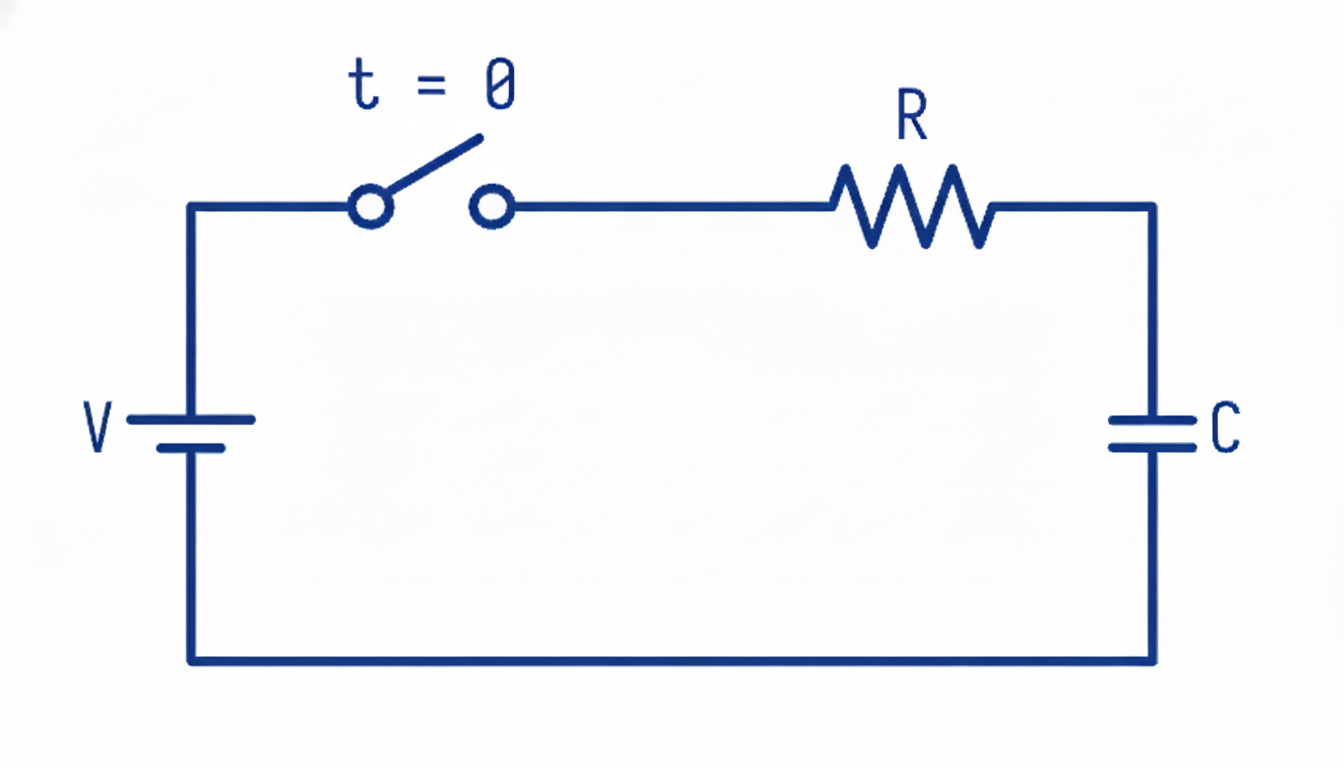

RC circuit diagram
Enter voltage, capacitance and resistance to view the RC charging / discharging curves.

Understanding time constants in RC and RL circuits

The time constant is a fundamental parameter describing how quickly a circuit responds to changes in voltage or current. In both RC (resistor–capacitor) and RL (resistor–inductor) networks, the time constant determines the speed of charging, discharging or current rise and decay.

This calculator computes τ (tau), the circuit’s time constant, and shows how the voltage or current evolves over time using standard exponential response curves.

Time constant formulas

RC circuit

For a resistor R in series with a capacitor C:

τ = R × C

where:

  • R = resistance (Ω)
  • C = capacitance (F)

RL circuit

For a resistor R in series with an inductor L:

τ = L / R

where:

  • L = inductance (H)
  • R = resistance (Ω)

Exponential response behavior

RC charging

The capacitor voltage follows:

V(t) = Vin (1 − e−t/τ)

RC discharging

V(t) = V0 e−t/τ

RL current rise

I(t) = Imax (1 − e−t/τ)

RL current decay

I(t) = I0 e−t/τ

Key time markers

Time constant τ indicates how fast the circuit approaches its final value:

Time RC Charging RC Discharge RL Rise/Decay
1 τ 63.2% of final value 36.8% remaining 63.2% of final
3 τ 95% of final 5% remaining 95% of final
5 τ 99.3% of final 0.7% remaining 99.3% of final

How to use the Time Constant Calculator

  1. Select circuit type: Choose RC or RL.
  2. Enter component values: Input R and C for RC circuits or R and L for RL circuits.
  3. Review τ (time constant): The calculator outputs the time constant in seconds, milliseconds or microseconds depending on values.
  4. View transient curve: A plotted waveform shows charging, discharging or current rise/decay over multiple time constants.

Applications of time constant analysis

  • Signal filtering (cutoff frequency directly related to RC/RL time constant)
  • Debouncing switches using RC networks
  • Timing circuits in analog/digital electronics
  • Soft-start and ramp control using RC charging
  • Transient response in motor drives and inductive loads
  • Pulse shaping and smoothing in communication systems

The time constant calculator provides a clear visualization of exponential behavior, helping designers understand dynamic circuit response and select optimal component values for timing, filtering and control applications.

FAQ about Time Constant Calculator

Why is the time constant important in filtering?

Yes.

If the capacitor or inductor interacts with additional resistances or impedances, the effective R in the circuit changes.

This modifies τ, especially in:


  • voltage dividers feeding RC networks

  • RL circuits with parasitic resistance

  • sensor interfaces
Why does 5τ represent “fully charged” even though it’s not 100%?

Exponential curves never mathematically reach the final value.

At 5τ, the output reaches 99.3% of final—close enough that engineers treat it as fully settled for practical purposes.

Is τ affected by load or external circuitry?

RC and RL filters derive their cutoff frequency from τ:

<code>f<sub>c</sub> = 1 / (2π τ)</code>

A larger τ = slower response = lower cutoff.

Time constant directly shapes how signals are attenuated or smoothed.
