Allen-Bradley PowerFlex 525 AC Drives
Bulletin 25B compact AC drives with built-in EtherNet/IP, hardwired Safe Torque Off and flexible motor control. This first selection covers filtered 380–480 V three-phase, IP20/open-type drives from 0.75 to 22 kW normal duty.
View productsPowerFlex 525 drives
Select by supply, output current, duty rating, frame and EMC configuration. Normal Duty and Heavy Duty motor-power ratings are listed separately for the higher-power models.
Showing 1–6 of 6
Drives and motion
Allen-Bradley 25B-D010N114 PowerFlex 525 4 kW 480 V AC Drive
25B-D010N114
New Original
$999.00
Drives and motion
Allen-Bradley 25B-D013N114 PowerFlex 525 5.5 kW 480 V AC Drive
25B-D013N114
New Original
$999.00
Drives and motion
Allen-Bradley 25B-D017N114 PowerFlex 525 7.5 kW 480 V AC Drive
25B-D017N114
New Original
$999.00
Drives and motion
Allen-Bradley 25B-D024N114 PowerFlex 525 11 kW 480 V AC Drive
25B-D024N114
New Original
$999.00
Drives and motion
Allen-Bradley 25B-D030N114 PowerFlex 525 15 kW ND 480 V AC Drive
25B-D030N114
New Original
$999.00
Drives and motion
Allen-Bradley 25B-D037N114 PowerFlex 525 18.5 kW ND 480 V AC Drive
25B-D037N114
New Original
$999.00

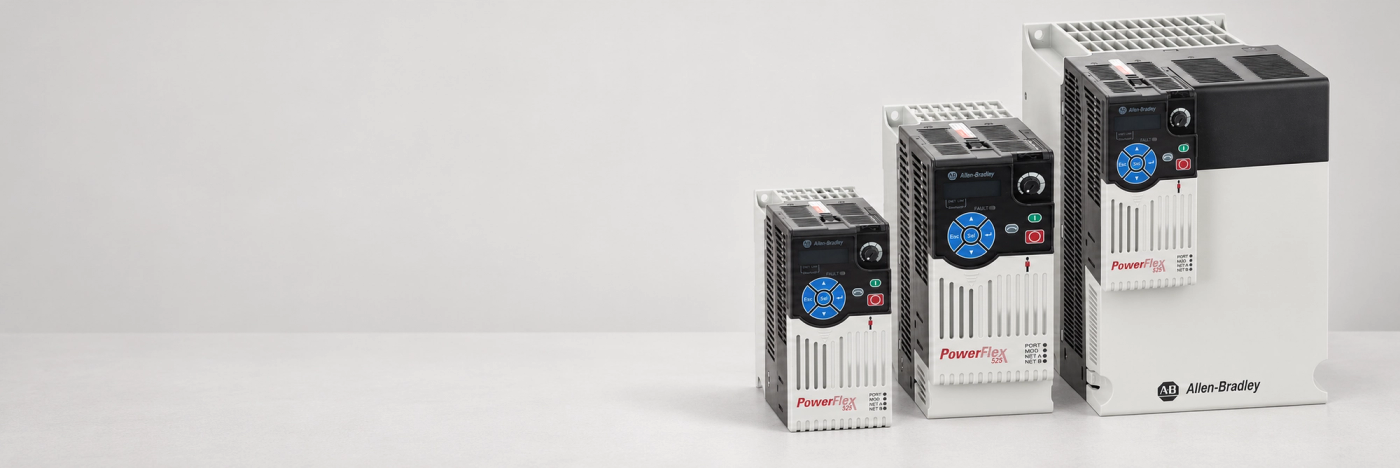

One PowerFlex 525 platform, several cabinet frames
PowerFlex 525 is the Bulletin 25B base-drive family. This batch keeps the 380–480 V three-phase input and filtered N114 configuration consistent while stepping through the current and power range.
Frames A–C: compact machine drives

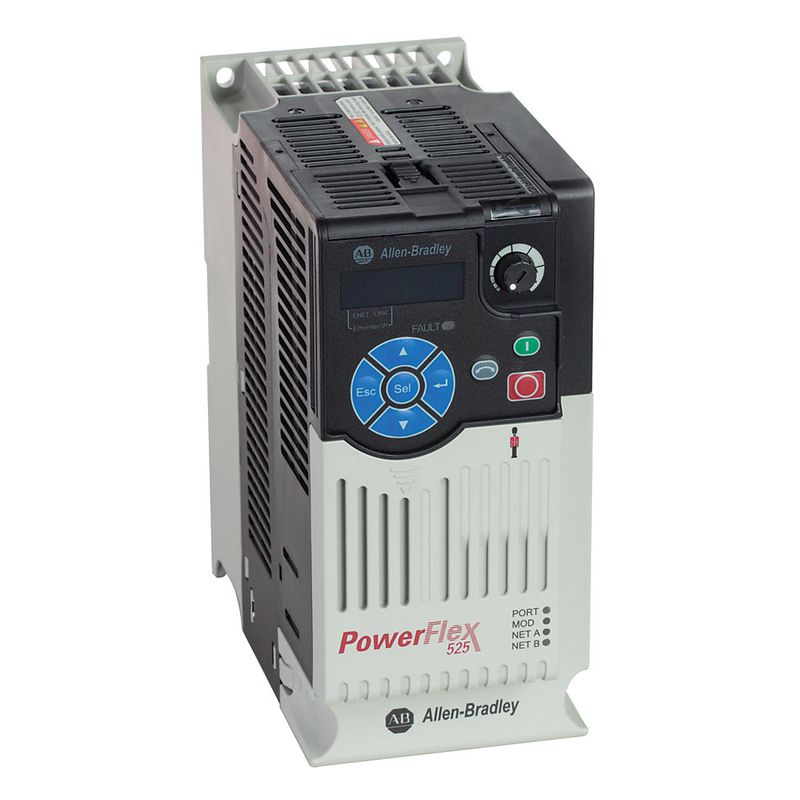

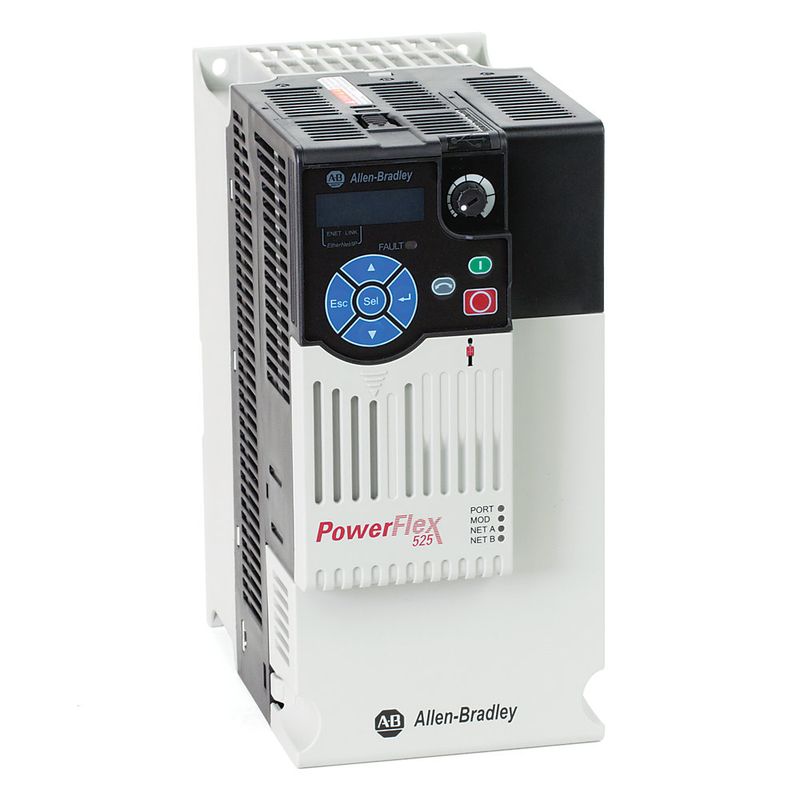

The selected 0.75–7.5 kW models span Frames A, B and C. They combine the common keypad, EtherNet/IP and STO functions with increasing output current and cabinet dimensions.

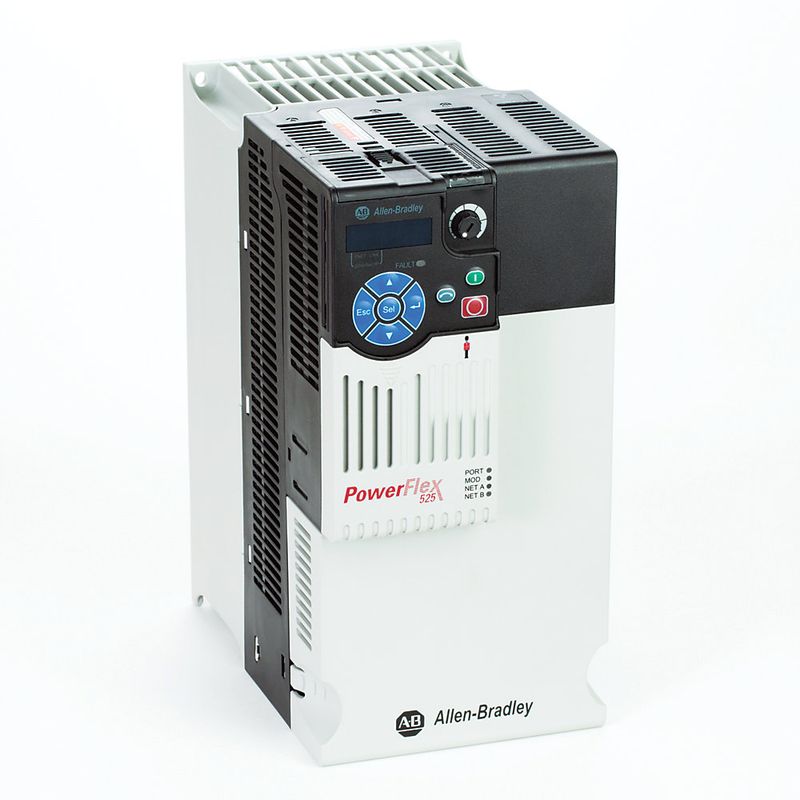

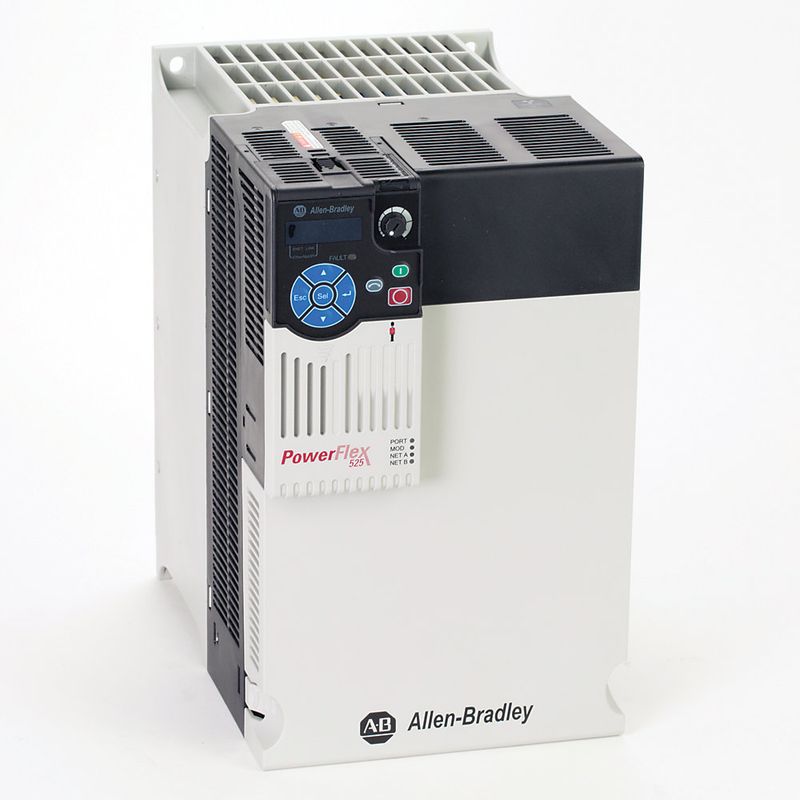

Frames D–E: larger loads and distinct duty ratings
The selected 11–22 kW normal-duty models use Frames D and E. The 15, 18.5 and 22 kW ND drives have lower heavy-duty motor-power ratings; these larger frames use screw mounting.
Match the motor, duty and installation
The motor-power label is only one part of drive selection. Keep the load’s duty, nameplate current, supply and cabinet conditions in the same decision.
- 01
Normal Duty is not always Heavy Duty
D030 is rated 15 kW ND / 11 kW HD; D037 is 18.5 / 15 kW; D043 is 22 / 18.5 kW. The smaller selected drives have equal listed ND/HD motor-power ratings.
- Match the motor nameplate current as well as kW or HP.
- Allow for the actual overload duty, temperature and carrier frequency.
- 02
480 V class with an integrated EMC filter
All first-batch models use a 380–480 V three-phase supply, IP20/open-type housing and N114 filtered configuration. N104 is unfiltered; the 18.5/22 kW 480 V entries are available only filtered.
- The wider PowerFlex 525 family also has other voltage and input-phase classes.
- Supply grounding affects the MOV and embedded-filter earth connection.
- 03
Choose the frame and ventilation together
Higher current increases the frame width, depth and heat load. Standard vertical IP20 installation allows full rated operation up to 50 °C; zero-side-clearance installation lowers that threshold to 45 °C.
- Frames A–C allow DIN-rail or screw mounting; D–E use screws.
- Operation above the no-derating temperature reduces available current.
- The high-temperature control-module fan kit is a separate option.
- 04
Built-in Ethernet and STO, optional topology and braking parts
One EtherNet/IP port and two-channel hardwired STO are standard. Dual-port/DLR communication uses an option card; dynamic braking uses a separately selected resistor with the included brake IGBT.
- Do not treat embedded STO as electrical isolation.
- PowerFlex 523/527, communication cards, resistors and packaged systems are not products in this collection.
Selection, wiring and commissioning resources
Use the exact model row for current and duty ratings, then the installation and configuration chapters for the cabinet and control circuit.
