Reflection attenuators and controlled mismatch
A reflection attenuator reduces signal level not only by insertion loss in components, but also by deliberately introducing a controlled mismatch between the source and the load. Instead of aiming for a perfect match, the network is designed so that a portion of the power is reflected back towards the source.
This approach is sometimes used in:
- Precision level controls in RF measurement setups
- Calibrating receiver sensitivity with known mismatch
- Studying how devices behave under non-ideal VSWR conditions
- Specialty attenuator modules where reflected power is part of the design
Attenuation, reflection coefficient and VSWR
For a simple reflection-type attenuator, the available power from the source is partly delivered to the load and partly reflected. The reflection coefficient Γ (gamma) characterizes this behavior:
Γ = (ZL − Z0) / (ZL + Z0)
- ZL – load impedance (complex in general)
- Z0 – system or line impedance (e.g. 50 Ω)
The magnitude of Γ is directly related to return loss (RL) and VSWR:
- Return loss: RL = −20 × log10|Γ| (dB)
- VSWR: VSWR = (1 + |Γ|) / (1 − |Γ|)
In a reflection attenuator, the net attenuation seen by the load is determined by how much power is actually delivered after reflections. The calculator uses the target attenuation and Z0 to derive the corresponding reflection coefficient and impedance seen by the line.
Power delivery in a mismatched system
The fraction of available source power delivered to the load is:
Pdelivered / Pavailable = 1 − |Γ|²
Expressed in decibels, the attenuation AdB from mismatch alone is:
AdB = −10 × log10(1 − |Γ|²)
For small |Γ|, this attenuation is modest; for larger |Γ|, the delivered power drops significantly. The Reflection Attenuator Calculator inverts this relationship: you enter the desired attenuation and it computes the required |Γ| and corresponding VSWR.
Example values for mismatch-based attenuation
The table below illustrates how reflection coefficient, VSWR and mismatch loss relate to each other:
| |Γ| | VSWR | Mismatch loss (dB) | Power delivered (%) |
|---|---|---|---|
| 0.1 | ≈ 1.22 | ≈ 0.043 dB | ≈ 99% |
| 0.316 | ≈ 1.93 | ≈ 0.5 dB | ≈ 89% |
| 0.5 | ≈ 3.0 | ≈ 1.25 dB | ≈ 75% |
| 0.707 | ≈ 5.83 | ≈ 3.0 dB | ≈ 50% |
These values show that a 3 dB loss from mismatch alone corresponds to |Γ| ≈ 0.707, which is a very poor match (VSWR ≈ 5.8:1) and generally unacceptable in standard RF systems. Reflection attenuators are therefore specialized tools, not replacements for properly matched pads.
Using the Reflection Attenuator Calculator
- Set the system impedance: Enter Z0 for your line or instrument, typically 50 Ω or 75 Ω.
- Enter the target attenuation from mismatch: Specify the attenuation in dB that you want to achieve purely via reflection.
- Review the calculated reflection parameters: The tool reports |Γ|, VSWR and the mismatch loss, along with the equivalent load impedance if a simple resistive mismatch is assumed.

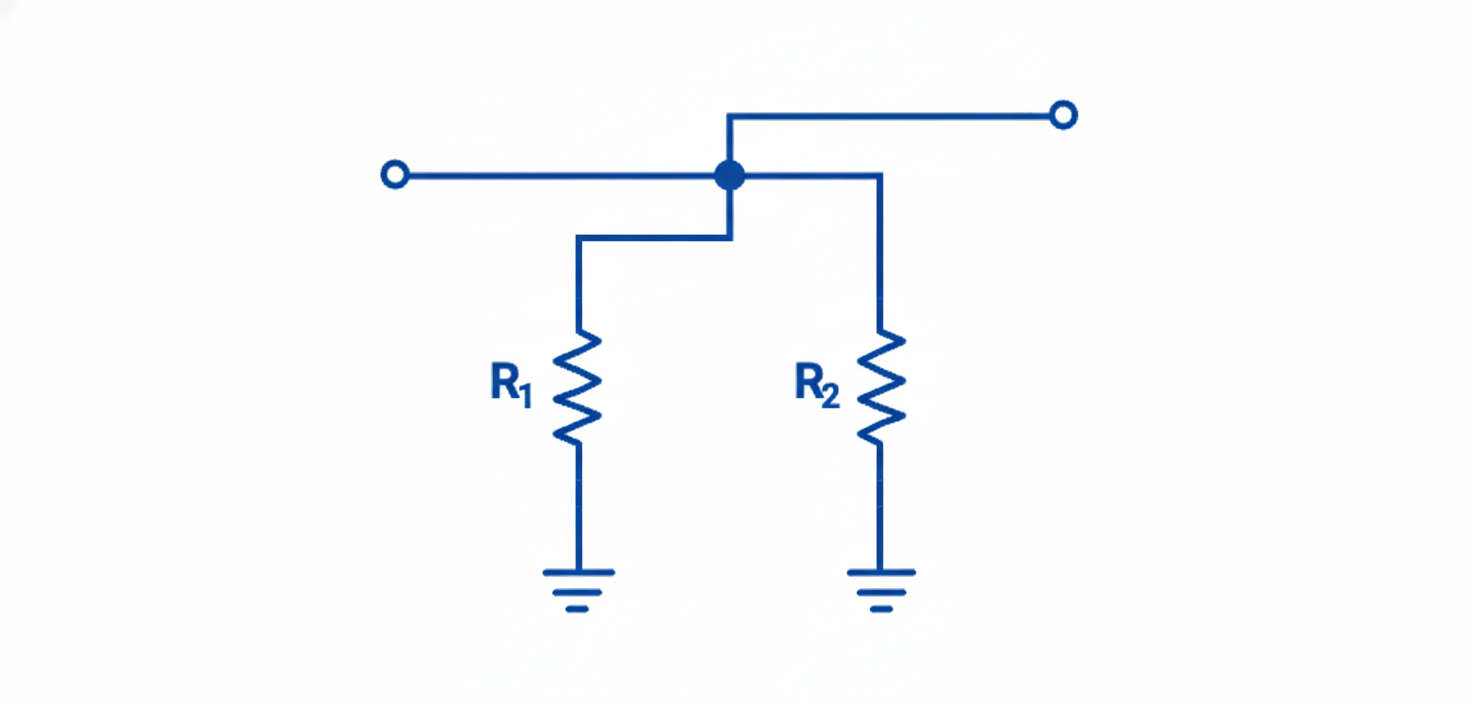

- Translate into real resistor values: For basic reflection networks, the calculator can propose series or shunt resistor combinations that produce the required mismatch at Z0.
Design tips for reflection-based attenuators
- Use with care in real systems: High VSWR can stress power amplifiers and cause unpredictable behavior in filters, couplers and other RF components.
- Prefer matched attenuators for everyday use: Constant-impedance π, T or bridged-T pads are usually better for routine level control and isolation.
- Reserve reflection attenuators for special tests: They are most useful when you intentionally need controlled mismatch to validate device robustness or calibration.
- Consider frequency dependence: Real-world loads may not be purely resistive; their impedance and reflection behavior can vary across frequency, so measure or simulate over the band of interest.
The reflection attenuator calculator focuses on the relationship between attenuation, reflection coefficient and VSWR, helping you design controlled mismatches for RF testing, receiver characterization and worst-case analysis in communication systems.
