Machine operator interface
Touch-screen status, navigation and control for individual machines.

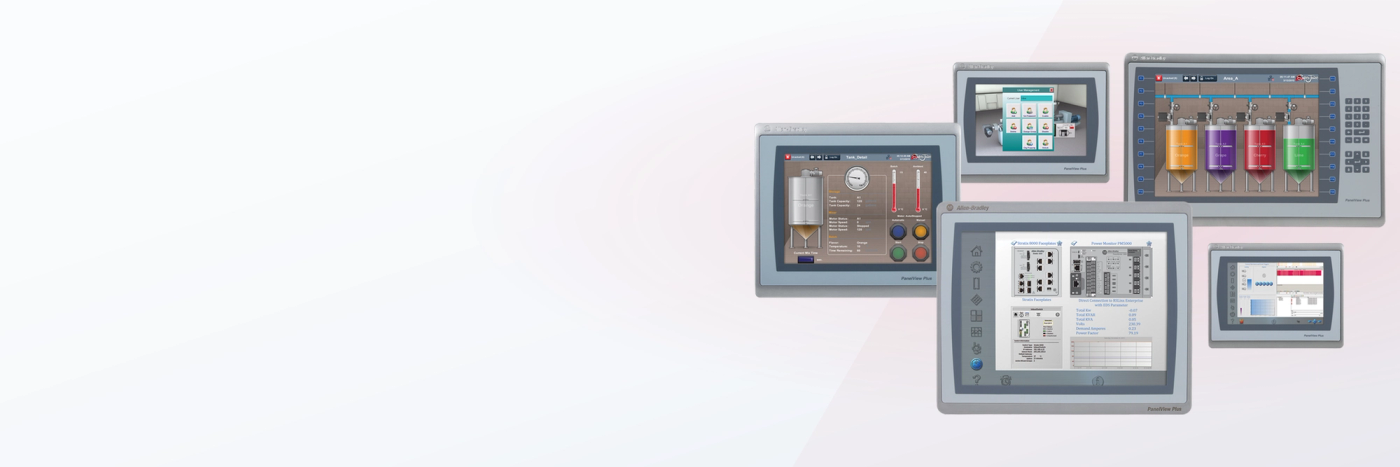

Allen-Bradley PanelView Plus 7 Standard Graphic Terminals
Allen-Bradley PanelView Plus 7 Standard terminals are Bulletin 2711P touch-screen operator interfaces in 4.3-inch through 15-inch display sizes, with single- or dual-Ethernet configurations. This collection excludes Performance, ArmorView, unbranded and specialized variants.
View productsPanelView Plus 7 Standard terminals
Browse branded PanelView Plus 7 Standard touch terminals by full Bulletin 2711P catalog number, display size and Ethernet configuration.
Showing 10 of 10
Industrial automation component
Allen-Bradley 2711P-T10C21D8S PanelView Plus 7 Standard Terminal
2711P-T10C21D8S
New Original
$999.00
In Stock
Industrial automation component
Allen-Bradley 2711P-T10C22D8S PanelView Plus 7 Standard Terminal
2711P-T10C22D8S
New Original
$999.00
In Stock
Industrial automation component
Allen-Bradley 2711P-T4W21D8S PanelView Plus 7 Standard Terminal
2711P-T4W21D8S
New Original
$999.00
In Stock
Industrial automation component
Allen-Bradley 2711P-T4W22D8S PanelView Plus 7 Standard Terminal
2711P-T4W22D8S
New Original
$999.00
In Stock
Industrial automation component
Allen-Bradley 2711P-T6C21D8S PanelView Plus 7 Standard Terminal
2711P-T6C21D8S
New Original
$999.00
In Stock
Industrial automation component
Allen-Bradley 2711P-T6C22D8S PanelView Plus 7 Standard Terminal
2711P-T6C22D8S
New Original
$999.00
In Stock
Industrial automation component
Allen-Bradley 2711P-T7C21D8S PanelView Plus 7 Standard Terminal
2711P-T7C21D8S
New Original
$999.00
In Stock
Industrial automation component
Allen-Bradley 2711P-T7C22D8S PanelView Plus 7 Standard Terminal
2711P-T7C22D8S
New Original
$999.00
In Stock
Industrial automation component
Allen-Bradley 2711P-T9W21D8S PanelView Plus 7 Standard Terminal
2711P-T9W21D8S
New Original
$999.00
In Stock
Industrial automation component
Allen-Bradley 2711P-T9W22D8S PanelView Plus 7 Standard Terminal
2711P-T9W22D8S
New Original
$999.00
In Stock
PanelView Plus 7 Standard configurations
The Standard range is organized by touch-display size and Ethernet configuration. The first Xindustra batch covers branded 4.3-inch through 10.4-inch terminals.
4.3, 5.7 and 6.5-inch terminals
Compact and conventional-aspect touch terminals for machine-level visualization.
9 and 10.4-inch terminals
Widescreen and conventional-aspect touch terminals with larger viewing areas.
Single- and dual-Ethernet variants
Catalog numbers containing 21 use one Ethernet port; those containing 22 use two ports and support DLR topology.
How to select a Standard terminal
Start with the full catalog number and installed application rather than display appearance alone.
Do not substitute a Performance, ArmorView, unbranded -B or specialized environmental variant without checking the complete Rockwell Automation catalog number and application requirements.
- 01
Match display and panel cutout
Confirm diagonal size, aspect ratio, resolution and mounting dimensions.
- Display size
- Resolution
- Panel cutout
- 02
Choose the Ethernet configuration
Select a 21 single-port model or a 22 dual-port model with DLR support to match the network architecture.
- Single Ethernet
- Dual Ethernet
- DLR topology
- 03
Verify application compatibility
Check FactoryTalk View Machine Edition project, terminal series and firmware requirements before replacement.
- FactoryTalk View ME
- Terminal series
- Firmware
Typical application contexts
PanelView Plus 7 Standard terminals provide local visualization and operator interaction for machine-level control applications.
Image placeholder
Packaged equipment
Local HMI for skids and OEM equipment with a defined controller and EtherNet/IP architecture.
Image placeholder
Production-line station
Panel-mounted operator access at equipment and line-control stations.
Documentation and resources
Use Rockwell Automation sources to verify current catalog identity, specifications, installation and lifecycle.
PanelView Plus 7 Graphic TerminalsOfficial portfolio page separating Standard, Performance and ArmorView configurations.PanelView Plus 7 Standard Technical DataCatalog numbers and display, network, electrical, environmental and mechanical specifications.PanelView Plus 7 Standard User ManualManufacturer guidance for installation, configuration and operation.
Collection questions
Key distinctions within the PanelView Plus 7 portfolio.
Does this collection include PanelView Plus 7 Performance terminals?
No. It is limited to PanelView Plus 7 Standard terminals. Performance and ArmorView products remain outside this collection.
What do 21 and 22 indicate in these catalog numbers?
Rockwell Automation technical data identifies 21 models with one 10/100Base-T Ethernet port and 22 models with two ports supporting star, linear or DLR topology.
Are unbranded -B terminals included?
No. The first batch uses standard Allen-Bradley-branded catalog numbers. Rockwell identifies the -B extension as an unbranded bezel option.
Need help sourcing a PanelView Plus 7 Standard terminal?
Send the full catalog number, installed terminal series, quantity and delivery destination for a tailored quotation.
