What is a 555 timer calculator?
A 555 timer calculator helps you quickly find the component values needed to generate specific timing intervals or output frequencies using the classic NE555 / LM555 IC. By entering your desired pulse width, period, duty cycle, or frequency, and choosing a configuration (astable or monostable), the calculator solves for the required resistor and capacitor values.
This is especially useful when you want to:
- Design LED flashers or indicator blinkers
- Create simple PWM signals for motors or dimming
- Generate one-shot trigger pulses for relays or alarms
- Prototype timing circuits without diving into full microcontroller code
Astable vs monostable modes
The 555 timer can be wired in multiple modes. The two most common are astable and monostable:
| Mode | Behavior | Typical use |
|---|---|---|
| Astable | Free-running oscillator with a continuous square wave output (no stable state). | LED blinkers, clock signals, basic PWM, tone generators. |
| Monostable | One-shot pulse. A trigger input causes the output to go high for a single timing interval. | Debouncing, delay-on, watchdog pulses, trigger stretchers. |
Key equations behind the 555 timer

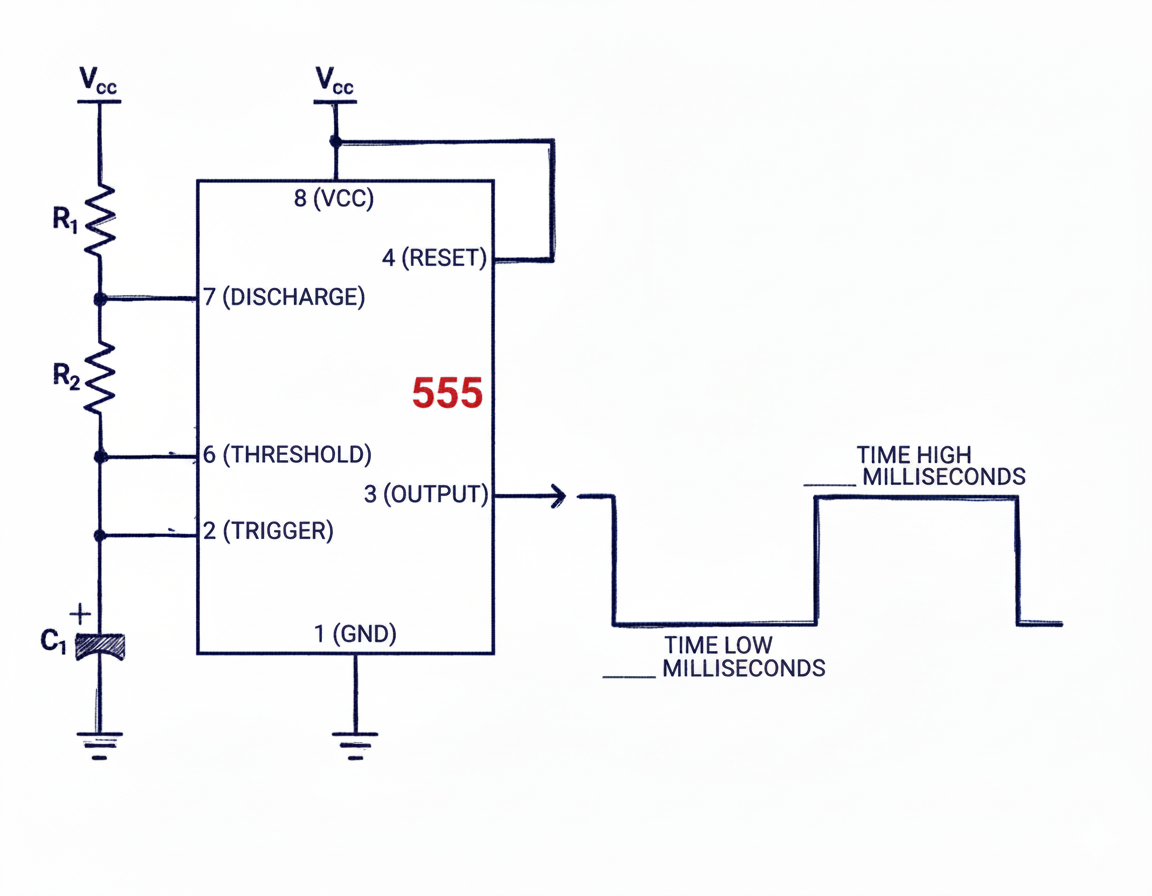

Astable mode (continuous oscillation)
In the classic astable configuration with two resistors and one capacitor:
- High time (TH) ≈ 0.693 × (RA + RB) × C
- Low time (TL) ≈ 0.693 × RB × C
- Period (T) = TH + TL
- Frequency (f) ≈ 1 / T
- Duty cycle ≈ TH / T
In this configuration, the duty cycle is always greater than 50% unless you add extra diodes or a different topology. The calculator can solve for frequency and duty cycle given RA, RB and C, or suggest component values for a desired output.

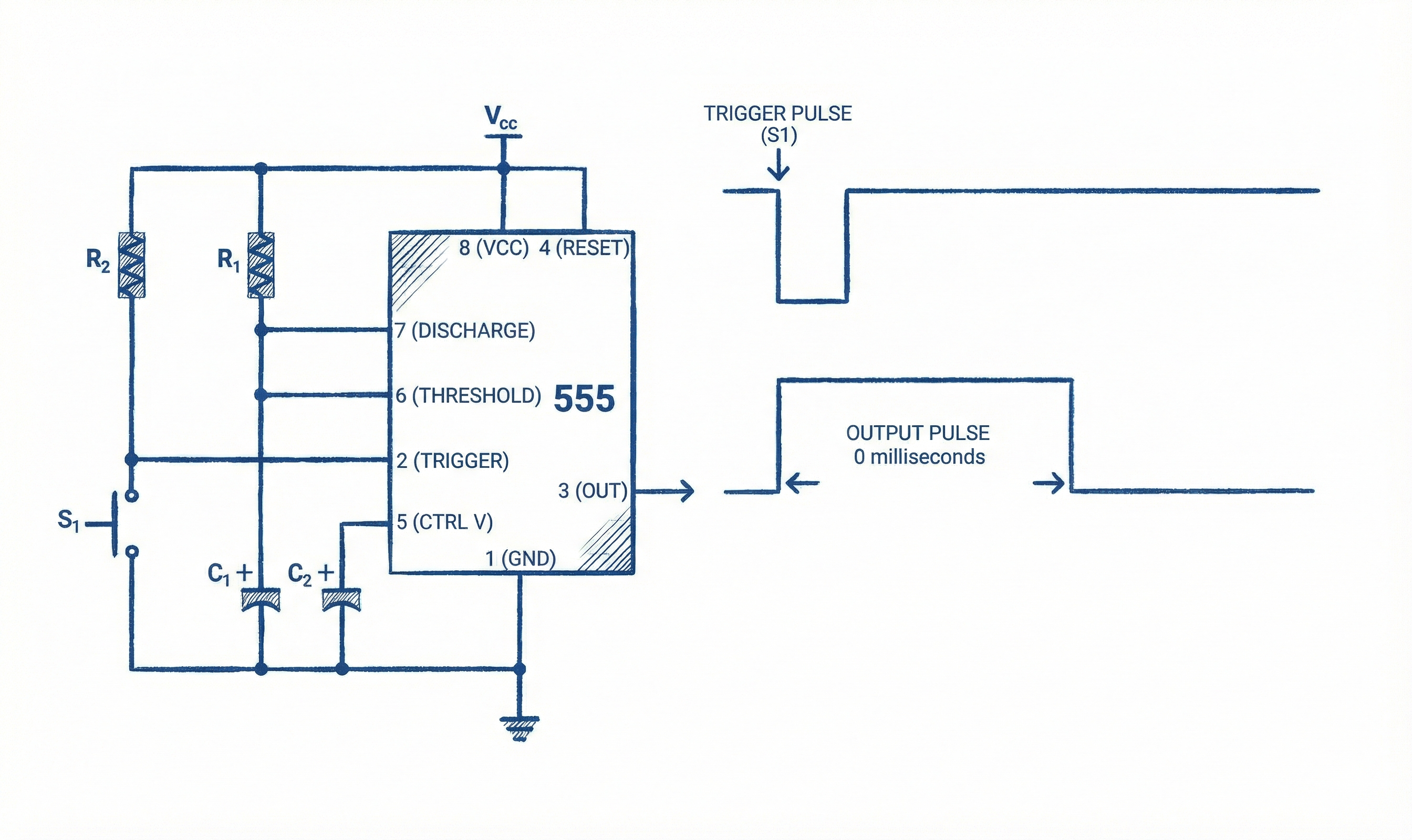

Monostable mode (one-shot)
In monostable mode, the 555 remains in a stable low state until a trigger pulse starts a timed interval. The basic pulse width is:
- Pulse width (T) ≈ 1.1 × R × C
Once triggered, the output goes high for duration T and then returns low. The calculator helps you choose R and C to match your required delay or pulse length.
Using this calculator in your design process
- Select the mode: Choose astable if you need a continuous square wave, or monostable if you only need a single timed pulse after a trigger.
- Enter your target timing: For astable, this is usually frequency and duty cycle. For monostable, enter the desired pulse width or delay.
- Set practical component ranges: Choose realistic ranges for R and C (for example, 1 kΩ–1 MΩ and 1 nF–100 µF) so the suggested values are easy to source.
- Review the results: The calculator will propose resistor and capacitor values, along with the resulting timing and any small deviation from your target.
Design tips for reliable 555 timer circuits
- Use standard E12/E24 values: The calculator may produce “ideal” values; in practice, you will select the closest standard resistor and capacitor. Small differences in timing are usually acceptable.
- Consider tolerance and temperature drift: Electrolytic capacitors and large-value resistors can vary significantly with temperature and age. If timing accuracy is critical, use quality film capacitors and tighter-tolerance resistors.
- Decouple the supply: Place a 0.1 µF ceramic capacitor close to the 555 IC between VCC and GND to reduce noise and improve stability, especially in industrial environments.
- Mind the load: The 555 can source or sink a limited amount of current. For driving relays, motors or higher loads, buffer the output with a transistor, MOSFET or driver stage.
For rapid prototyping, this calculator gives you a very fast starting point. Once your 555 timer circuit is built on breadboard or PCB, always verify the actual timing with a multimeter, logic analyzer, or oscilloscope and fine-tune component values if needed.
