Pi attenuator basics for RF and test systems

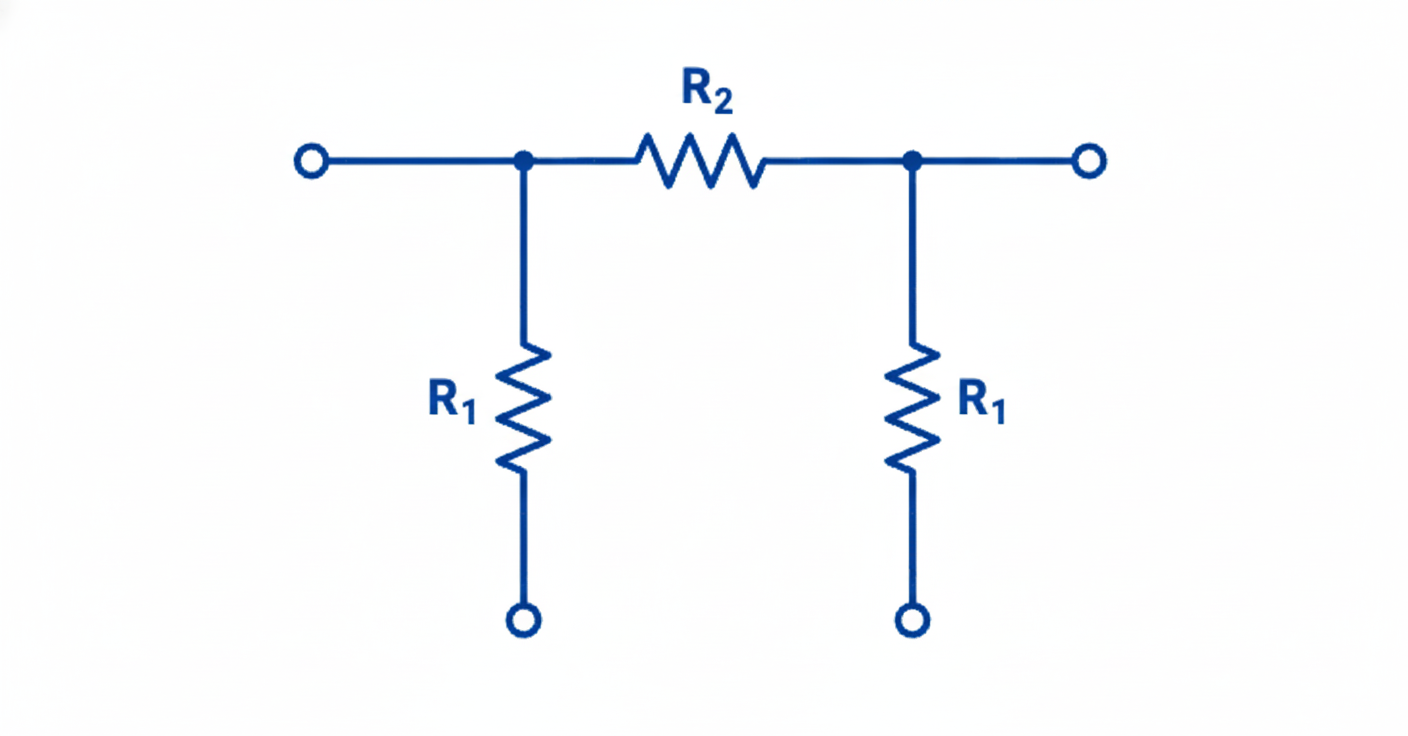

A pi (π) attenuator is a three-resistor network used to reduce signal level while maintaining a defined input and output impedance. Its topology – two shunt resistors to ground with a series resistor between input and output – makes it easy to implement on coaxial lines and thin-film RF boards.
In a system with characteristic impedance Z0 (for example 50 Ω or 75 Ω), a properly designed pi attenuator:
- Provides a specified attenuation in decibels (dB)
- Presents Z0 to both the source and the load
- Helps protect sensitive receivers from excessive power
- Improves impedance matching and return loss across the band
Attenuation, impedance and resistor equations
For a symmetrical pi attenuator with equal input and output impedances (Z0) and attenuation AdB, define:
K = 10(AdB / 20)
Then the required resistor values are::contentReference[oaicite:0]{index=0}
-
Shunt resistors (Rshunt, one at input and one at output):
Rshunt = Z0 × (K + 1) / (K − 1) -
Series resistor (Rseries between input and output):
Rseries = (Z0 / 2) × (K2 − 1) / K
The calculator implements these formulas for equal-impedance pads so you only need to specify Z0 and the desired attenuation.
Typical attenuation levels and power ratios
Because decibels are logarithmic, each attenuation step corresponds to a specific power ratio:
| Attenuation (dB) | Power ratio (Pout / Pin) | Voltage ratio (Vout / Vin) | Typical use |
|---|---|---|---|
| 3 dB | ≈ 0.5 | ≈ 0.707 | Small level trim, isolation |
| 6 dB | ≈ 0.25 | ≈ 0.50 | General-purpose signal reduction |
| 10 dB | 0.1 | ≈ 0.316 | Protecting receivers, lab test pads |
| 20 dB | 0.01 | 0.1 | Strong isolation, staged attenuation |
| 40 dB | 0.0001 | 0.01 | Very weak test signals, noise measurements |
Using the Pi Attenuator Calculator
- Set the system impedance: Enter the characteristic impedance of your line or equipment (commonly 50 Ω for RF, 75 Ω for video, or 600 Ω in legacy audio/telecom).
- Enter the desired attenuation: Specify the attenuation in dB (for example 3, 6, 10, 20). The calculator uses this value to compute the voltage and power ratios.
- Read the resistor values: The tool outputs the shunt resistor value (used on both ends) and the series resistor value between input and output.
- Choose real components: Round to the nearest standard resistor values and verify that power ratings are adequate for your maximum input power.
Worked example – 10 dB pad in a 50 Ω system
- Z0 = 50 Ω
- AdB = 10 dB
Compute K:
K = 10(10 / 20) ≈ 3.1623
Shunt resistors:
Rshunt = 50 × (K + 1) / (K − 1) ≈ 50 × (4.1623 / 2.1623) ≈ 96 Ω
Series resistor:
Rseries = (50 / 2) × (K² − 1) / K ≈ 25 × (10 − 1) / 3.1623 ≈ 71 Ω
Standard values 100 Ω (shunt) and 68 Ω or 75 Ω (series) are often used in practice, with a small trade-off in exact attenuation and return loss.
Design tips for pi attenuators
- Check power dissipation: For high-power RF, compute the power in each resistor at maximum input level and choose components with adequate wattage and derating.
- Use multiple stages when needed: Large attenuations (e.g. 40 dB) are often implemented as several smaller pads (e.g. 10 dB + 10 dB + 20 dB) to distribute power and heat.
- Mind frequency limitations: At microwave frequencies, resistor parasitics and layout become critical; keep leads short and use RF-grade thin-film or chip attenuator networks.
- Combine with other tools: Use a separate impedance calculator to ensure all devices in the chain are matched, then fine-tune levels with pi attenuators for clean, predictable performance.
With this calculator, you can move quickly from a target attenuation in dB to practical resistor values, helping you build robust, impedance-matched pads for RF front-ends, signal generators and test jigs.
