ABB S202 Circuit Breaker

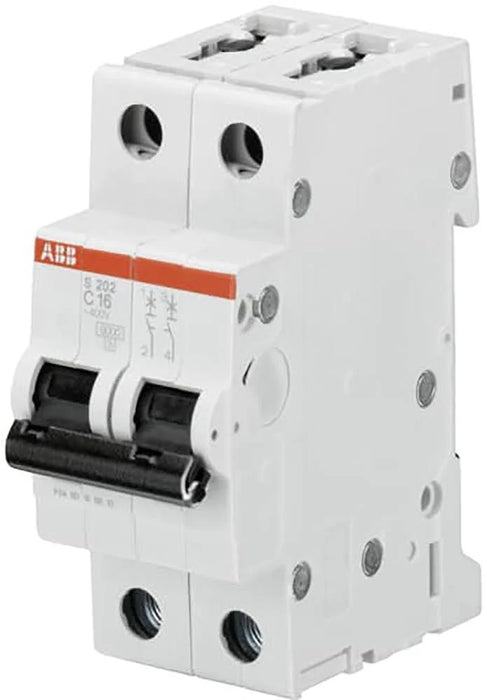

ABB S202 Miniature Circuit Breaker — 2-Pole (B/C/D Curves)

by ABB
$68.00 - $68.00
$68.00
$68.00 - $68.00
$68.00
Availability:
in stock, ready to be shipped
Availability:
Low stock
Availability:
Low stock
Availability:
Low stock
Availability:
Low stock
Availability:
Low stock
Availability:
Low stock
Availability:
Low stock
Availability:
Low stock
Availability:
Low stock
Availability:
Low stock
Availability:
Low stock
Availability:
Low stock
Availability:
Low stock
Availability:
Low stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Low stock
Availability:
Low stock
Availability:
Low stock
Availability:
Low stock
Availability:
Low stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock

2-pole thermal-magnetic MCB from ABB S200 family. B/C/D trip curves, IEC 60898-1 / 60947-2 compliance, up to 6 kA breaking capacity at 230/400 V AC (model-dependent). DIN-rail, wide accessory support.

Refurbished
Most sustainable option 🌿
New factory sealed
Request a quote
12 Month Warranty

12-month warranty

Secure Payment

secure payment

Fast shipping

fast shipping

We Deliver Worldwide

deliver worldwide

Product Description

The ABB S202 extends the System pro M compact S200 range to two poles for applications that require simultaneous switching/isolating of phase + neutral or two phases. It combines a thermal element for overload with a magnetic element for short-circuit protection, available in B/C/D characteristics across common ratings (6…63 A, variant-dependent). Typical IEC breaking capacity for S200 is up to 6 kA at 230/400 V AC; where fault levels are higher, choose S200M/S200P high-breaking versions or coordinate with upstream current-limiting devices.
The S202 supports ABB’s bottom-fitting auxiliaries (OF/SD, shunt, UVT), comb busbars, and standard 35 mm DIN-rail mounting—making it a drop-in for residential, commercial, and industrial control panels.

Technical Specifications

Brand / Series ABB — System pro M compact S200
Model S202 (2-pole)
Trip Curves B, C, D
Rated Current (In) typ. 6, 10, 13, 16, 20, 25, 32, 40, 50, 63 A (variant-dependent)
Rated Operational Voltage 230/400 V AC (model-dependent); selected DC variants available
Breaking Capacity (IEC) up to 6 kA @ 230/400 V AC (S200 family)
Standards IEC/EN 60898-1; IEC/EN 60947-2 (variant-dependent)
Protection Technology Thermal overload + magnetic short-circuit
Poles 2 (simultaneous operation)
Mounting 35 mm DIN-rail
Accessories Bottom-fitting auxiliaries (OF/SD, shunt trip, UVT), comb busbars
