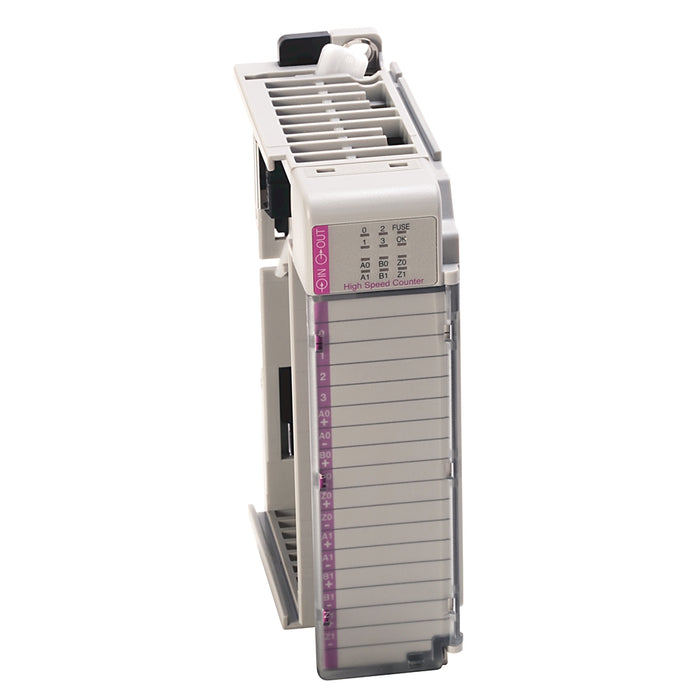

1769-HSC CompactLogix High-Speed Counter Module

by Xindustra
$800.00 - $800.00
$800.00
$800.00 - $800.00
$800.00
Availability:
in stock, ready to be shipped

The Allen-Bradley 1769-HSC is a high-speed counter module designed for CompactLogix and MicroLogix 1500 systems, enabling precise counting of rapid pulse signals independent of the main CPU scan. Ideal for position tracking, flow metering, and motion control applications in fast-paced industrial environments.

Refurbished
Most sustainable option 🌿
New factory sealed
Request a quote
12 Month Warranty

12-month warranty

Secure Payment

secure payment

Fast shipping

fast shipping

We Deliver Worldwide

deliver worldwide

Specification

The 1769-HSC module supports two high-speed counter channels with input frequencies up to 1 MHz, offering fast, accurate pulse counting, quadrature input processing, and event capture. It enables real-time control in systems where high-speed signal response and directional tracking are critical.

User manual for download

1769-HSC CompactLogix High-Speed Counter Module

No documents available.

Technical detail for 1769-HSC

Product Type
High-Speed Counter Module
Series/Model
CompactLogix / 1769-HSC
Brand
Allen-Bradley
Input Channels
2 Counter Channels, 4 Inputs per Channel
Max Input Frequency
1 MHz
Input Voltage Range
5–24V DC
Counter Modes
Up/Down, Quadrature, Pulse/Direction
Encoder Support
Incremental (AB Phase)
Isolation
Channel-to-Channel and Channel-to-Backplane
Backplane Current
380 mA at 5V DC
Slot Width
1
Operating Temperature
0 to 60 °C (32 to 140 °F)
Mounting
DIN Rail or Panel Mount
Application Use
Motion control, flow monitoring, encoder tracking
