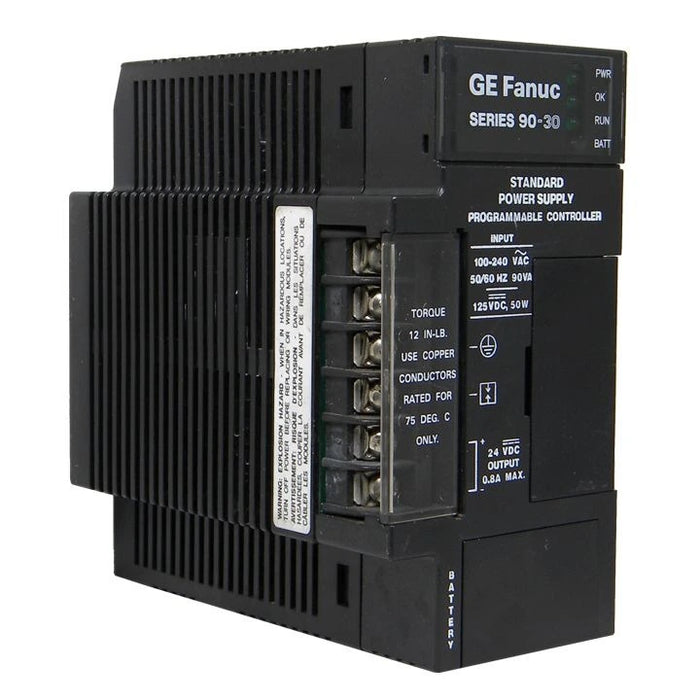

IC693PWR321 — GE Fanuc Series 90-30 Standard AC/DC Power Supply (30W)

by Fanuc

$369.00 - $369.00

$369.00

$369.00 - $369.00

$369.00

Availability:

in stock, ready to be shipped

Standard 30-W supply for Series 90-30. 85–264 VAC or 100–300 VDC input; three outputs: +5 V, +24 V isolated, +24 V relay. Installs in the leftmost slot

Refurbished

Most sustainable option

New factory sealed

12-month warranty

secure payment

fast shipping

deliver worldwide

Quantity

Product Description

The IC693PWR321 is the standard AC/DC power supply for GE Fanuc Series 90-30 systems. It accepts 85–264 VAC or 100–300 VDC and delivers a combined 30 W across three rails: +5 VDC, +24 VDC (isolated), and +24 VDC (relay). The isolated 24 V rail is used internally by some modules and can also source external power for 24 VDC input modules; the relay 24 V rail powers the coils on relay output modules. The supply is mounted in the leftmost baseplate slot, supporting CPUs and I/O on the same rack. Typical input burden is 90 VA (AC full load) or 50 W (DC full load), with 4 A / 250 ms inrush and ≥20 ms holdup. Total combined output must not exceed 30 W. Battery is not included

Technical Specifications

Brand / Series	GE Fanuc — Series 90-30
Model	IC693PWR321
Type	Standard AC/DC Input Power Supply
Input Voltage Range (AC)	85–264 VAC
Input Voltage Range (DC)	100–300 VDC
Rated / Total Output Power	30 W (combined across all outputs)
+5 VDC Output Capacity	15 W (5.0–5.2 VDC)
+24 VDC Isolated Output Capacity	20 W (24–28 VDC)
+24 VDC Relay Output Capacity	15 W (24–28 VDC)
Input Burden @ Full Load	90 VA (AC), 50 W (DC)
Inrush Current	4 A peak, ≤250 ms
Holdup Time	≥20 ms
Overvoltage (5 V)	6.4–7.0 V (protective limit)
Overcurrent (5 V)	4 A max (protective limit)
Mounting Position	Leftmost slot in the baseplate
Battery Included	No (battery not included)

Datasheets for Download

No documents available for this product.

Can't find what you looking for ？

Fill out the simple form and our team will be happy to assist you
Want to browse on your own? Click the button to see more products in this series

Discover more

Request a Quote

Frequent asked questions

What input power does IC693PWR321 accept?

85–264 VAC or 100–300 VDC. It’s auto-ranging—no jumpers required. Qualitrol

How are the three outputs intended to be used?

+5 V feeds logic; +24 V isolated (20 W) is used internally by some modules and can power 24 V input modules; +24 V relay (15 W) energizes relay output modules. Combined total must not exceed 30 W.

How does it differ from IC693PWR330 or IC693PWR322?

PWR330 is a high-capacity version; PWR322 is 24 VDC-input only. Choose based on total rack load and available plant power.
