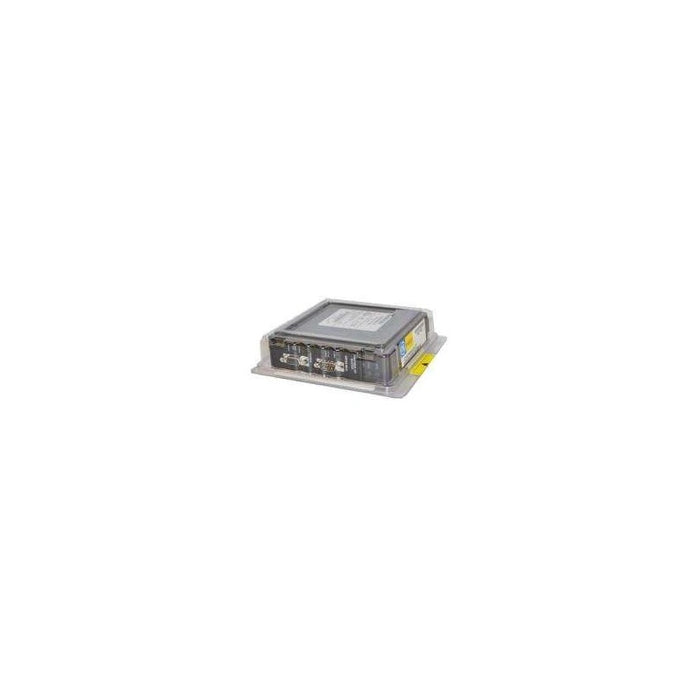

IC693PBM200 — GE Fanuc Series 90-30 PROFIBUS DP Master

by Fanuc

$1,738.00 - $1,738.00

$1,738.00

$1,738.00 - $1,738.00

$1,738.00

Availability:

in stock, ready to be shipped

PROFIBUS-DP master for 90-30: 9.6 kbps–12 Mbps, up to 125 slaves, 244 bytes in / 244 bytes out per slave (module/CPU exchange up to 3972/3972). ~450 mA @ +5 V. Mount any baseplate slot except slot 1 of a modular CPU rack

Refurbished

Most sustainable option

New factory sealed

12-month warranty

secure payment

fast shipping

deliver worldwide

Quantity

Product Description

The IC693PBM200 brings high-performance PROFIBUS-DP to Series 90-30 systems. It supports all standard data rates (9.6 k–12 Mbaud), up to 125 DP slaves, and 244/244 bytes per slave. Total data exchange between CPU and module is 3972 bytes in/out. The design includes COM/SYS LEDs, RS-232 service port for firmware updates, and a 9-pin PROFIBUS D-sub. Install in any 90-30 baseplate (CPU/expansion/remote) except slot 1 of a modular CPU baseplate. Configure with Proficy Machine Edition (LD-PLC); see CPU firmware/memory notes for very large networks. HHP is not supported.

Technical Specifications

Brand / Series	GE Fanuc — Series 90-30
Model	IC693PBM200
Role	PROFIBUS-DP Master
Data Rates	9.6 k, 19.2 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 Mbaud
Max Slaves	125
Per-Slave I/O	244 bytes in, 244 bytes out
CPU↔Module I/O Limit	3972 bytes in, 3972 bytes out
Mounting	Any 90-30 baseplate (CPU/expansion/remote) slot except slot 1 of modular CPU baseplate
Backplane Load	≈ 450 mA @ +5 VDC (typical)
Ports	PROFIBUS 9-pin D-sub (female); RS-232 service port 9-pin D-sub (male)
Features	Sync/Freeze modes; COM/SYS LEDs; firmware update via service port
Config Software	Proficy Machine Edition LD-PLC v3.0+; CPU firmware 8.00+ (10.60+ for very large configs)

Datasheets for Download

No documents available for this product.

Can't find what you looking for ？

Fill out the simple form and our team will be happy to assist you
Want to browse on your own? Click the button to see more products in this series

Discover more

Request a Quote

Frequent asked questions

How many slaves and how much data per slave?

Up to 125 DP slaves, with 244 bytes input and 244 bytes output per slave.

What data rates are supported?

All standard PROFIBUS-DP rates from 9.6 kbps to 12 Mbps.

Where can I install the module?

In any 90-30 baseplate (CPU, expansion, or remote) except slot 1 of a modular CPU baseplate.
