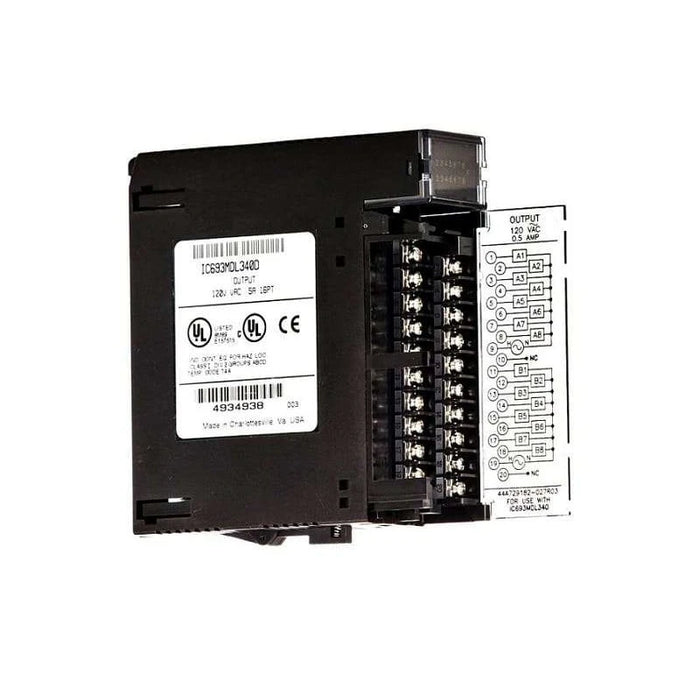

IC693MDL340 — GE Fanuc Series 90-30 120VAC AC Output Module (16-Point, 0.5A)

by Fanuc

$340.00 - $340.00

$340.00

$340.00 - $340.00

$340.00

Availability:

in stock, ready to be shipped

16-point 120VAC AC output module: 0.5 A/pt, 3 A/group, two groups of 8 points each, independent common terminal; 20 A inrush, output with RC snubber, backplane approximately 315 mA @ +5 V

Refurbished

Most sustainable option

New factory sealed

12-month warranty

secure payment

fast shipping

deliver worldwide

Quantity

Product Description

The IC693MDL340 offers sixteen triac outputs split into two isolated groups of eight, each with a separate common. It operates over 85–132 VAC, 50/60 Hz, with 0.5 A per point and 3 A per group. Electrical robustness includes 20 A inrush (one cycle) and built-in RC snubbers for transient suppression. Typical output characteristics mirror the family: ≤1.5 V drop and ~2 mA leakage at 120VAC. The module draws about 315 mA @ +5 V from the backplane—verify power margin on the rack supply. Isolation is typically ~500 V between groups and ~1500 V field-to-logic.

Technical Specifications

Brand / Series	GE Fanuc — Series 90-30
Model	IC693MDL340
Type	AC Output Module (Triac)
Output Points	16 (2 groups × 8, isolated commons)
Output Voltage Range / Freq.	85–132 VAC, 50/60 Hz
Rated Current	0.5 A per point; 3 A per group
Inrush Current	20 A max for 1 cycle
Output Voltage Drop	≤ 1.5 V (typ.)
Leakage Current	≈ 2 mA @ 120 VAC (typ.)
Backplane Load	≈ 315 mA @ +5 V (logic)
Noise Suppression	RC snubber on outputs
Isolation	Field-to-logic ~1500 V; group-to-group ~500 V (typ.)

Datasheets for Download

No documents available for this product.

Can't find what you looking for ？

Fill out the simple form and our team will be happy to assist you
Want to browse on your own? Click the button to see more products in this series

Discover more

Request a Quote

Frequent asked questions

How many outputs and how are they grouped?

16 triac outputs in two isolated groups of eight, each with a separate common.

What are the voltage and current ratings?

85–132 VAC, 50/60 Hz. 0.5 A per point, 3 A per group (observe de-rating at higher ambient temperatures).

Does the module include transient suppression? Any leakage to expect?

Outputs include RC snubbers for transient suppression. Off-state leakage is typically ~2 mA @ 120 VAC—plan for this on very light loads.
