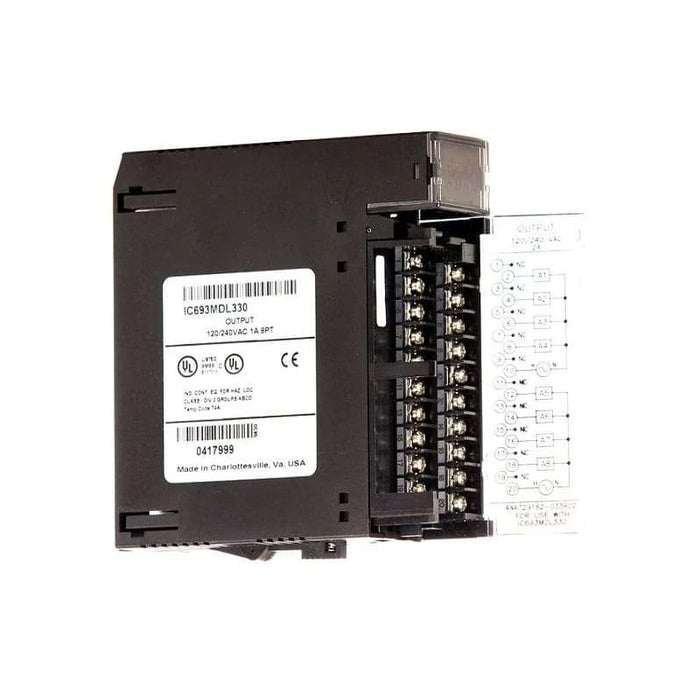

IC693MDL330 — GE Fanuc Series 90-30 120/240VAC AC Output Module (8-Point, 2A)

by Fanuc

$270.00 - $270.00

$270.00

$270.00 - $270.00

$270.00

Availability:

in stock, ready to be shipped

8-point AC output module for Series 90-30: 85–264VAC, 2 A/pt, two isolated groups of 4 (separate commons), 20 A inrush (1 cycle), min load 100 mA; 5 A fuse per group.

Refurbished

Most sustainable option

New factory sealed

12-month warranty

secure payment

fast shipping

deliver worldwide

Quantity

Product Description

The IC693MDL330 provides eight triac outputs arranged as two isolated groups of four, each with its own common (not internally bussed). It drives 85–264VAC, 50/60 Hz loads up to 2 A per point (group limit 4 A at 40 °C), with support for high inrush (20 A for one cycle)—useful for inductive and incandescent loads. Typical minimum load is 100 mA; output characteristics include ≤1.5 V drop, ≤3 mA leakage at 120VAC (≤6 mA at 240VAC), and on/off response of ~1 ms / ½ cycle. Module logic draws about 160 mA @ +5 V from the backplane; size the rack power supply accordingly. Each group is fuse-protected (5 A)

Technical Specifications

Brand / Series	GE Fanuc — Series 90-30
Model	IC693MDL330
Type	AC Output Module (Triac)
Output Points	8 (2 groups × 4, isolated commons)
Output Voltage Range / Freq.	85–264 VAC, 50/60 Hz
Rated Current	2 A per point; 4 A per group @ 40 °C
Inrush Current	20 A max for 1 cycle
Minimum Load	100 mA
Output Voltage Drop	≤ 1.5 V
Leakage Current	≤ 3 mA @ 120 VAC; ≤ 6 mA @ 240 VAC
Response Time	On ≤ 1 ms; Off ≤ 1/2 cycle
Group Protection	5 A fuse per group/common
Backplane Load	≈ 160 mA @ +5 V (logic)
Isolation	Field-to-logic 1500 V; group-to-group 500 V (typ.)

Datasheets for Download

No documents available for this product.

Can't find what you looking for ？

Fill out the simple form and our team will be happy to assist you
Want to browse on your own? Click the button to see more products in this series

Discover more

Request a Quote

Frequent asked questions

How are the 8 output points grouped? Can I use different phases?

The module has two isolated groups of four outputs, each with its own common. You can feed different phases or the same source to each group. Each group is protected by a 5 A fuse.

What are the voltage and current ratings per point and per group?

85–264 VAC, 50/60 Hz. Up to 2 A per point and 4 A per group at 40 °C (de-rate as ambient rises).

Is there a minimum load or off-state leakage I should consider?

Yes. Minimum recommended load is ≈100 mA. Off-state leakage is typically ≈3 mA @ 120 VAC (≈6 mA @ 240 VAC). For very light loads, add a bleed resistor or interpose a relay.
