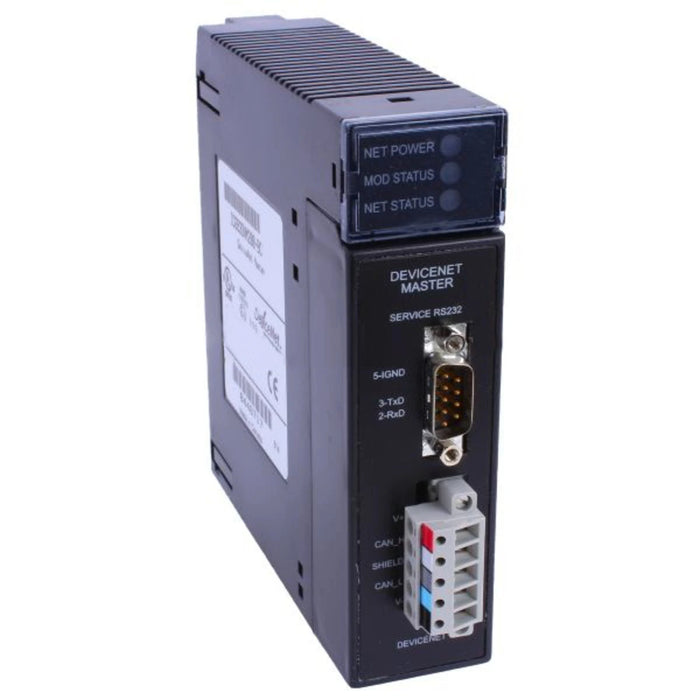

IC693DNM200 — GE Fanuc Series 90-30 DeviceNet Master (Scanner)

by Fanuc

$749.00 - $749.00

$749.00

$749.00 - $749.00

$749.00

Availability:

in stock, ready to be shipped

DeviceNet master for 90-30: up to 63 slaves, 125/250/500 kbps, 255 bytes in / 255 bytes out per slave (max 3972/3972 per master). Main rack only (any slot except 0–1). ~450 mA @ +5 V. RS-232 service port for firmware.

Refurbished

Most sustainable option

New factory sealed

12-month warranty

secure payment

fast shipping

deliver worldwide

Quantity

Product Description

The IC693DNM200 adds a full DeviceNet master/scanner to Series 90-30 systems. It supports Poll, Strobe, Cyclic, COS I/O, two I/O connections per slave, explicit messaging via COMMREQ, and UCMM. Configure global scan and per-connection update rates to balance network load. Install in the main rack (not remote/expansion), any slot except 0 or 1. Typical backplane draw is ~450 mA @ +5 V. Requires Proficy Machine Edition (LD-PLC) support; VersaPro/Logicmaster and HHP are not supported for this module. Firmware is field-upgradable via the RS-232 service port.

Technical Specifications

Brand / Series	GE Fanuc — Series 90-30
Model	IC693DNM200
Role	DeviceNet Master / Scanner
Max Slaves	63
Data Rates	125k, 250k, 500k baud
Per-Slave I/O	255 bytes in, 255 bytes out
Per-Master I/O Limit	3972 bytes in, 3972 bytes out
Connections	Two I/O connections per slave; Poll/Strobe/Cyclic/COS; Explicit Messaging
Mounting	Main rack only; any slot except 0 and 1; not supported in remote/expansion racks
Backplane Load	≈ 450 mA @ +5 VDC (typical)
Ports	DeviceNet 5-pin (V+, CAN_H, Shield, CAN_L, V-); RS-232 service port (DB9)
Config Software	Proficy Machine Edition LD-PLC (v3.0 SP1 Special 2 or later)
Notes	HHP not supported; not configurable via VersaPro/Logicmaster

Datasheets for Download

No documents available for this product.

Can't find what you looking for ？

Fill out the simple form and our team will be happy to assist you
Want to browse on your own? Click the button to see more products in this series

Discover more

Request a Quote

Frequent asked questions

How many slaves and what data rates are supported?

Up to 63 slaves at 125k/250k/500k baud.

Can it act as a slave at the same time?

Yes, it can be configured to operate as a slave simultaneously with master operation

Where can I install the module?

Main rack only, any slot except 0–1; not supported in remote or expansion racks.
