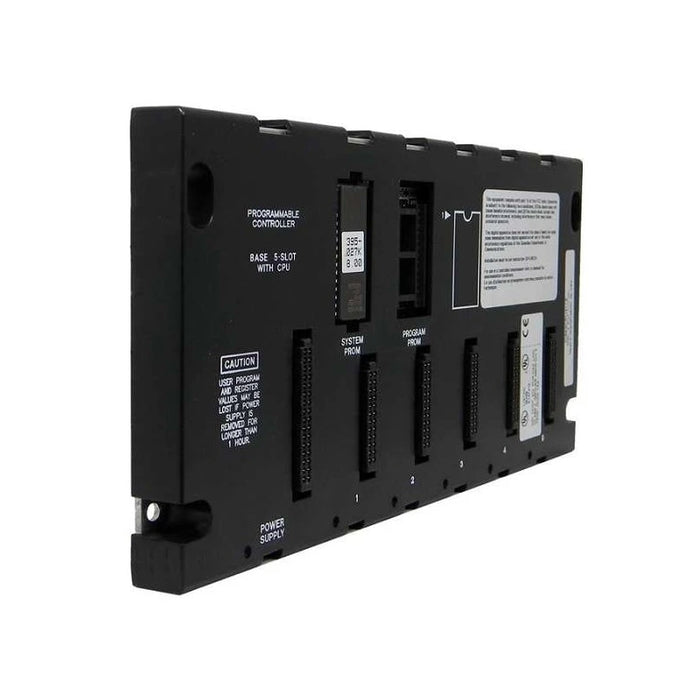

IC693CPU311 — GE Fanuc 90-30 5-Slot CPU Base

IC693CPU311 — GE Fanuc Series 90-30 5-Slot Base with Embedded CPU

by Fanuc

$369.00 - $369.00

$369.00

$369.00 - $369.00

$369.00

Availability:

in stock, ready to be shipped

Entry-level Series 90-30 CPU base: 5 I/O slots, 10 MHz 80188, 6 KB user program + 1 KB register memory, supports ~160 discrete I/O, serial comms via the power-supply port

Refurbished

Most sustainable option

New factory sealed

12-month warranty

secure payment

fast shipping

deliver worldwide

Quantity

Product Description

The IC693CPU311 is a compact 5-slot base with an embedded CPU for GE Fanuc Series 90-30 systems. It’s designed for small machine control and simple sequencing where high uptime and long lifecycle support matter. The CPU is built on an Intel 80188 at 10 MHz with 6 KB user program memory and 1 KB register memory. It supports around 160 discrete I/O points locally and can be expanded with analog and specialty modules as needed. Programming is typically done in Proficy Machine Edition (Logic Developer – PLC); legacy projects from Logicmaster 90 can be migrated. Serial communications are provided through the 15-pin SNP/RS-485 port on the power-supply; additional ports or Ethernet can be added via communication modules on the rack. Power draw from the backplane is ~410 mA @ +5 VDC; select a compatible IC693PWR3xx power supply accordingly. Operating temperature is 0–60 °C. Note that floating-point math is not supported on this entry CPU

Technical Specifications

Brand / Series	GE Fanuc — Series 90-30
Model	IC693CPU311
Form Factor	5-slot base with embedded CPU
CPU	Intel 80188 @ 10 MHz
User Program Memory	6 KB
Register Memory	1 KB
Local I/O Capacity	≈160 discrete points (typical)
I/O Slots Available	5
Floating-Point Support	Not supported
Programming Software	Proficy Machine Edition; legacy Logicmaster 90
Serial Communications	SNP/RS-485 via power-supply 15-pin port
Backplane Load	≈410 mA @ +5 VDC
Power Supply Compatibility	IC693PWR3xx family (size to total load)
Operating Temperature	0 to 60 °C
Total Baseplates per System	1 (embedded CPU base)

Datasheets for Download

No documents available for this product.

Can't find what you looking for ？

Fill out the simple form and our team will be happy to assist you
Want to browse on your own? Click the button to see more products in this series

Discover more

Request a Quote

Frequent asked questions

Which software should I use to program the IC693CPU311?

Use Proficy Machine Edition (Logic Developer – PLC). Legacy Logicmaster 90 projects can typically be imported into Proficy before download.

How do I connect my laptop to a 90-30 with CPU311?

The serial path is through the power-supply’s 15-pin SNP/RS-485 port. You’ll need an RS-485 converter (to RS-232 or USB). For very old Logicmaster setups, note 32-bit OS constraints.

Does the CPU311 support floating-point math or Ethernet?

No native floating-point support on CPU311. Ethernet requires an Ethernet-capable CPU (e.g., CPU374) or an appropriate communication module added to the rack
