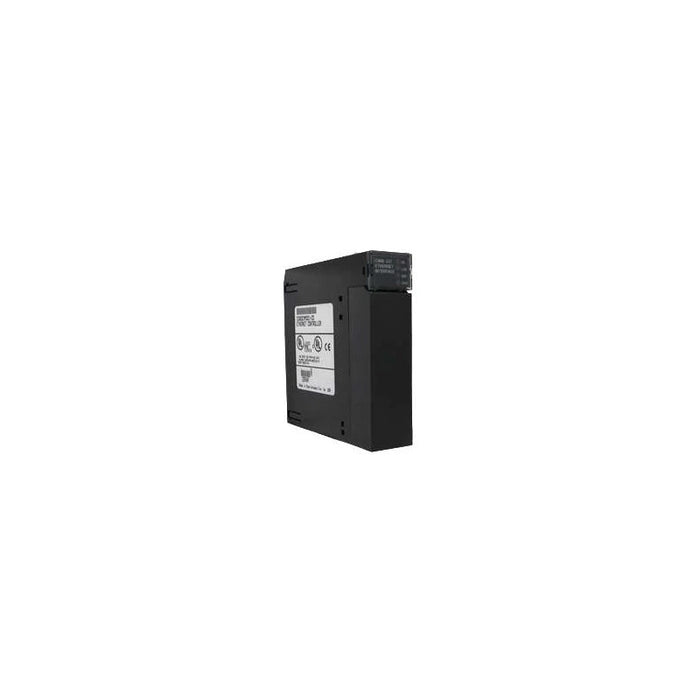

IC693CMM321 — GE Fanuc Series 90-30 Ethernet Interface (TCP/IP, SRTP, Modbus/TCP)

by Fanuc

$760.00 - $760.00

$760.00

$760.00 - $760.00

$760.00

Availability:

in stock, ready to be shipped

Ethernet interface for 90-30: supports SRTP over TCP/IP and Modbus/TCP (master & slave). Ports include a Station Manager RS-232 (RJ-11), a Loader RS-485 (15-pin D), and network port (earlier revs use AAUI; later revs add 10Base-T RJ-45, full-duplex). Backplane: ~700 mA @ +5 V. Up to 16 server connections.

Refurbished

Most sustainable option

New factory sealed

12-month warranty

secure payment

fast shipping

deliver worldwide

Quantity

Product Description

The IC693CMM321 connects Series 90-30 PLCs to Ethernet LANs for programming, HMI/SCADA, and controller-to-controller messaging. It provides client/server capability using SRTP over TCP/IP and—on supported hardware/firmware—Modbus/TCP (master & slave). Hardware revisions evolved from AAUI (external transceiver required) to integrated 10Base-T RJ-45 with full duplex; later revisions (e.g., -KL/-KM/-KN) also address security and reliability updates. Initial IP configuration is done via Station Manager on the RS-232 (RJ-11) port or through the PLC programmer, after which the module can be reached over Ethernet. Backplane load is ~700 mA @ +5 V, and PWR321 (Rev K+), PWR322, or PWR330 are the recommended power supplies. For best compatibility, use CPU firmware 6.50+ and locate the module in the main rack. Typical uses: Ethernet programming access, HMI/SCADA comms, controller data exchange (SRTP), and integration with third-party systems via Modbus/TCP

Technical Specifications

Brand / Series	GE Fanuc — Series 90-30
Model	IC693CMM321
Protocols	SRTP over TCP/IP; Modbus/TCP Master & Slave (rev-dependent)
Server Connections (max)	16
Station Manager Port	RS-232, RJ-11 (use IC693CBL316 cable)
Loader Port	RS-485, 15-pin D (firmware updates)
Network Port	AAUI (early revs); 10Base-T RJ-45 (full duplex on later revs)
Backplane Load	≈ 700 mA @ +5 VDC
Recommended Power Supplies	IC693PWR321 (Rev K or later), IC693PWR322, or IC693PWR330
CPU Firmware (best practice)	6.50+ for full operation
Initial Configuration	Set IP via Station Manager serial port before Ethernet use

Datasheets for Download

No documents available for this product.

Can't find what you looking for ？

Fill out the simple form and our team will be happy to assist you
Want to browse on your own? Click the button to see more products in this series

Discover more

Request a Quote

Frequent asked questions

Which Ethernet protocols does the CMM321 support?

SRTP over TCP/IP is standard; later firmware/hardware also supports Modbus/TCP (master & slave)—see your module revision.

How do I set the IP address the first time?

Connect to the Station Manager on the RS-232 (RJ-11) port (cable IC693CBL316), assign a temporary IP, then complete setup via the programmer

What physical ports are on the module?

Station Manager RS-232 (RJ-11), Loader RS-485 (15-pin D), and a network port—AAUI on early units; 10Base-T RJ-45 on later units (full-duplex).
