IC693CHS391 — GE Fanuc Series 90-30 10-Slot Modular CPU Baseplate

by Fanuc

$185.00 - $185.00

$185.00

$185.00 - $185.00

$185.00

Availability:

in stock, ready to be shipped

10-slot CPU baseplate for Series 90-30. Power supply in leftmost slot, CPU in Slot 1, Slots 2–10 for I/O/option modules; 25-pin expansion connector at right; only one CPU baseplate per system.

Refurbished

Most sustainable option

New factory sealed

12-month warranty

secure payment

fast shipping

deliver worldwide

Quantity

Product Description

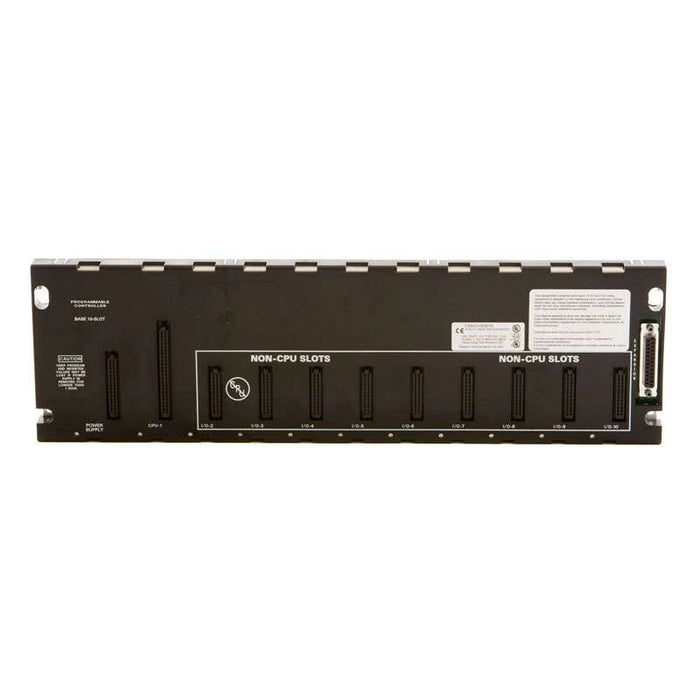

The IC693CHS391 is the 10-slot modular CPU baseplate used in GE Fanuc Series 90-30 systems. The power supply mounts in the leftmost (unnumbered) position, the CPU (or specialty option) occupies Slot 1, and Slots 2–10 accept I/O or option modules. A DB-25 expansion port on the right supports connection to expansion or remote baseplates. Only one CPU baseplate is allowed per system (additional racks are expansion/remote). Follow installation rules from the hardware manual (e.g., populate unused slots with IC693ACC310 filler modules). Typical internal backplane consumption is ~420 mA @ +5 V, physical size ≈ 17.44 × 5.12 × 5.59 in. Typical uses: main rack for 90-30 systems needing a larger local I/O count; like-for-like replacements; staged migrations while keeping existing field wiring.

Technical Specifications

Brand / Series	GE Fanuc — Series 90-30
Model	IC693CHS391
Type	Modular CPU Baseplate (Main Rack)
Slots (usable)	CPU: Slot 1; I/O/Option: Slots 2–10
Power Supply Position	Leftmost (unnumbered) slot
Expansion Port	25-pin D-sub (to Expansion/Remote baseplates)
System Rule	Only one CPU baseplate per system
Internal Power Used	≈ 420 mA @ +5 VDC
Dimensions (W×H×D)	≈ 17.44 × 5.12 × 5.59 in
Notes	Populate unused slots with IC693ACC310 fillers

Datasheets for Download

No documents available for this product.

Can't find what you looking for ？

Fill out the simple form and our team will be happy to assist you
Want to browse on your own? Click the button to see more products in this series

Discover more

Request a Quote

Frequent asked questions

Where do the power supply and CPU mount?

Power supply in the leftmost unnumbered position; the CPU (or specialty option) in Slot 1. Slots 2–10 are for I/O/option modules.

Can I add more local racks to a CHS391 system?

Yes—use the 25-pin expansion connector to attach expansion/remote baseplates; remember there is only one CPU baseplate per system.

What are the physical size and backplane load?

About 17.44 × 5.12 × 5.59 in, ~420 mA @ +5 V. Verify total rack load when selecting the power supply
