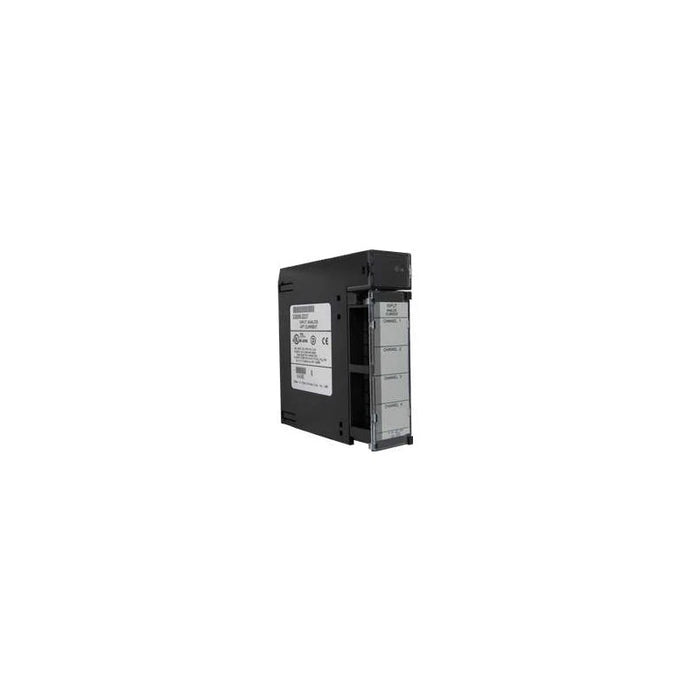

IC693ALG221 — GE Fanuc Series 90-30 4-Channel Analog Current Input Module

by fanuc

$0.00 - $0.00

$0.00

$0.00 - $0.00

$0.00

Availability:

in stock, ready to be shipped

4-ch current input, ranges 4–20 mA (default) or 0–20 mA; 2 ms update (all ch); resolution 4 µA/LSB (4–20 mA), 5 µA/LSB (0–20 mA); 250 Ω input; draws 25 mA @ +5 V and 100 mA @ +24 V (iso).

Refurbished

Most sustainable option

New factory sealed

12-month warranty

secure payment

fast shipping

deliver worldwide

Quantity

Product Description

The IC693ALG221 is a four-channel current input module for Series 90-30 systems. It supports 4–20 mA (default) and 0–20 mA ranges selected via terminal-board jumpers, with a fast 2 ms update for all channels. Resolution is 4 µA/LSB in 4–20 mA mode and 5 µA/LSB in 0–20 mA mode; input impedance is 250 Ω. Isolation is provided between field and logic, and typical internal consumption is ~25 mA from +5 V and ~100 mA from isolated +24 V. Many sites scale user data to 16-bit counts (e.g., 0–32000 span) for easy engineering-unit conversion—confirm your application’s scaling in Proficy.

Technical Specifications

Brand / Series	GE Fanuc — Series 90-30
Model	IC693ALG221
Channels	4 analog current inputs
Input Ranges	4–20 mA (default); 0–20 mA (jumper)
Update Rate	2 ms (all channels)
Resolution	4 µA/LSB @ 4–20 mA; 5 µA/LSB @ 0–20 mA
Input Impedance	250 Ω
Input Filter Response	≈ 325 Hz
Isolation	≈1500 V field-to-logic; CMR >70 dB (DC/60 Hz)
Backplane Load	≈25 mA @ +5 V; ≈100 mA @ +24 V (isolated)
Data / Scaling	Typical 16-bit user data mapping; confirm in project

Datasheets for Download

No documents available for this product.

Can't find what you looking for ？

Fill out the simple form and our team will be happy to assist you
Want to browse on your own? Click the button to see more products in this series

Discover more

Request a Quote

Frequent asked questions

How do I select 4–20 mA vs 0–20 mA?

Use the terminal-board jumper per the manual; default is 4–20 mA.

What’s the conversion speed and resolution?

2 ms update (all four channels). Resolution 4 µA/LSB (4–20 mA) or 5 µA/LSB (0–20 mA).

What power does the module draw?

About 25 mA @ +5 V and 100 mA @ +24 V (isolated) from the backplane
