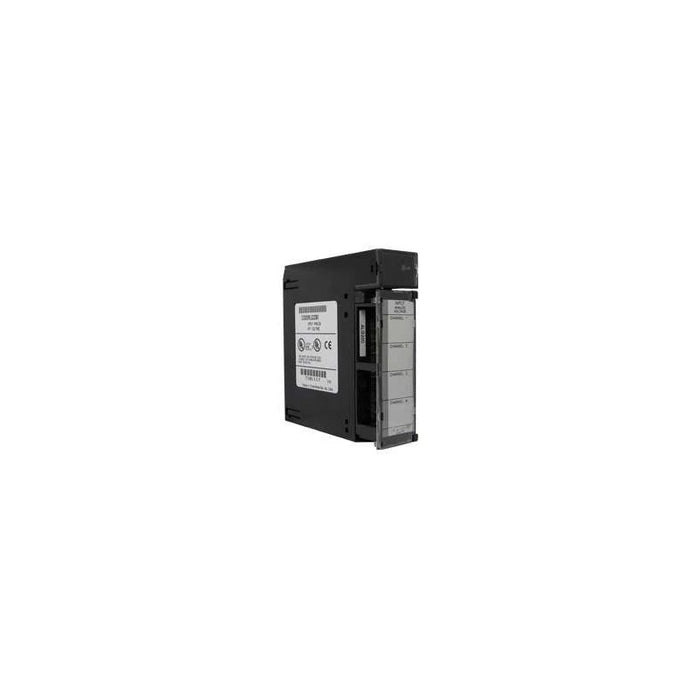

IC693ALG220 — GE Fanuc Series 90-30 4-Channel Analog Voltage Input Module

by Fanuc

$330.00 - $330.00

$330.00

$330.00 - $330.00

$330.00

Availability:

in stock, ready to be shipped

4-ch ±10 V voltage input, 12-bit resolution, 4 ms update (all ch), >9 MΩ input impedance, 17 Hz filter; isolated field/logic; draws 27 mA @ +5 V and 98 mA @ +24 V (iso)

Refurbished

Most sustainable option

New factory sealed

12-month warranty

secure payment

fast shipping

deliver worldwide

Quantity

Product Description

The IC693ALG220 provides four differential ±10 V analog voltage inputs for Series 90-30 systems. Each channel converts to 12-bit user data (stored in %AI), with a typical 1 ms per channel conversion and 4 ms overall update. The front-end includes isolation and input filtering (17 Hz) for stable readings in industrial environments. Input impedance is >9 MΩ (voltage mode). Module power consumption is approximately 27 mA from +5 V and 98 mA from the isolated +24 V backplane supply. For 4–20 mA loops you can use the documented 250 Ω shunt method (voltage module + shunt), noting derating/accuracy guidance from the manual.

Technical Specifications

Brand / Series	GE Fanuc — Series 90-30
Model	IC693ALG220
Channels	4 analog voltage inputs
Input Range	-10 V to +10 V (±10 V)
Resolution	12-bit (1 in 4096)
Update Rate	4 ms (all channels)
Input Impedance	> 9 MΩ (voltage mode)
Input Filter Response	≈ 17 Hz
Data Format	%AI registers, 16-bit two’s complement
Isolation	≈1500 V field-to-logic
Backplane Load	≈27 mA @ +5 V; ≈98 mA @ +24 V (isolated)
Current Input (option)	Supported using 250 Ω shunt; see manual notes

Datasheets for Download

No documents available for this product.

Can't find what you looking for ？

Fill out the simple form and our team will be happy to assist you
Want to browse on your own? Click the button to see more products in this series

Discover more

Request a Quote

Frequent asked questions

What signal range does ALG220 accept?

Differential ±10 V per channel with 12-bit conversion and ~4 ms total update

Can I read 4–20 mA loops with ALG220?

Yes—use the documented 250 Ω shunt to convert current to voltage; review accuracy and thermal notes in the manual.

What is the module’s power draw and isolation?

About 27 mA @ +5 V and 98 mA @ +24 V (iso); isolation is ~1500 V field-to-logic.
