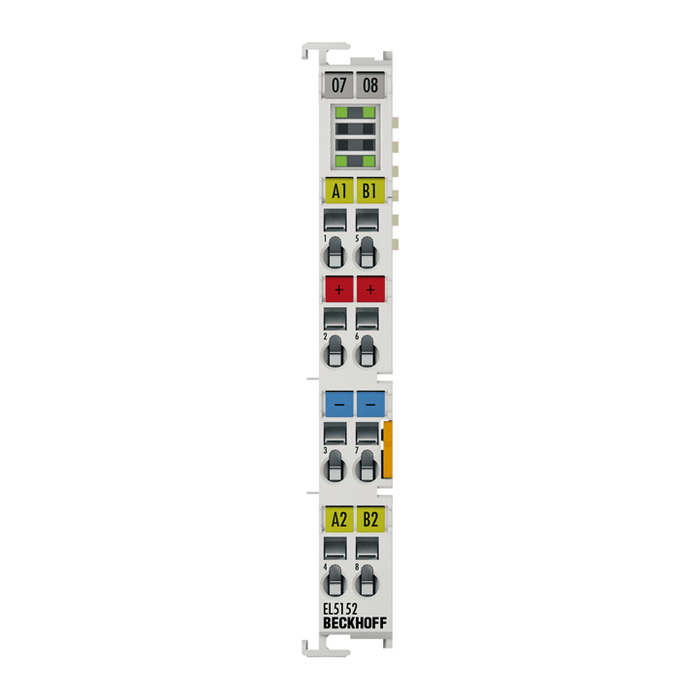

Beckhoff EL5152 EtherCAT Terminal

por Xindustra
Precio original $512.00 - Precio original $512.00
Precio original
$512.00
$512.00 - $512.00
Precio actual $512.00
Disponibilidad:
en stock, listo para ser enviado

The Beckhoff EL5152 is a 2-channel EtherCAT Terminal designed for direct connection of incremental encoders with 24 V HTL signals. It features two 32-bit counters with quadrature decoding and supports high-precision position measurement, frequency, and period evaluation, making it ideal for dynamic motion control applications

Renovar
La opción más sostenible 🌿
Nuevo sellado de fábrica
Solicitar presupuesto
12 Month Warranty

garantía de 12 meses

Secure Payment

pago seguro

Fast shipping

envío rápido

We Deliver Worldwide

entregamos a todo el mundo

Especificación

The EL5152 offers two channels for incremental encoders, each with 32-bit counters and 4x quadrature decoding, supporting up to 400,000 increments per second (100 kHz). It includes features like micro-increment functionality for enhanced resolution, period and frequency measurement, and synchronous data acquisition via EtherCAT Distributed Clocks. Operating on 24 V DC, it ensures reliable performance in precision automation tasks.

Manual de usuario para descargar

Beckhoff EL5152 EtherCAT Terminal

No hay documentos disponibles

Technical detail for EL5152

Product Type
2-Channel Incremental Encoder Interface
Series/Model
EL5152
Brand
Beckhoff
Number of Channels
2
Counter Resolution
16/32-bit switchable
Input Signal Type
24 V DC HTL, single-ended
Max Counting Frequency
400,000 increments/s (100 kHz)
Quadrature Decoding
4x evaluation
Micro-Increment Resolution
1/256
Encoder Supply Voltage
24 V DC (-15%/+20%)
Current Consumption (E-bus)
Typ. 130 mA
Current Consumption (Power Contacts)
Typ. 100 mA + load
Electrical Isolation
500 V (E-bus/field potential)
Special Features
Micro-increments, period and frequency measurement, up/down counters
Operating Temperature
-25 to +60 °C
Storage Temperature
-40 to +85 °C
Relative Humidity
95%, no condensation
Protection Class
IP20
Weight
Approx. 50 g
Standards
EN 61131-2 Type 1
Certifications
CE, UL, Ex, IECEx
