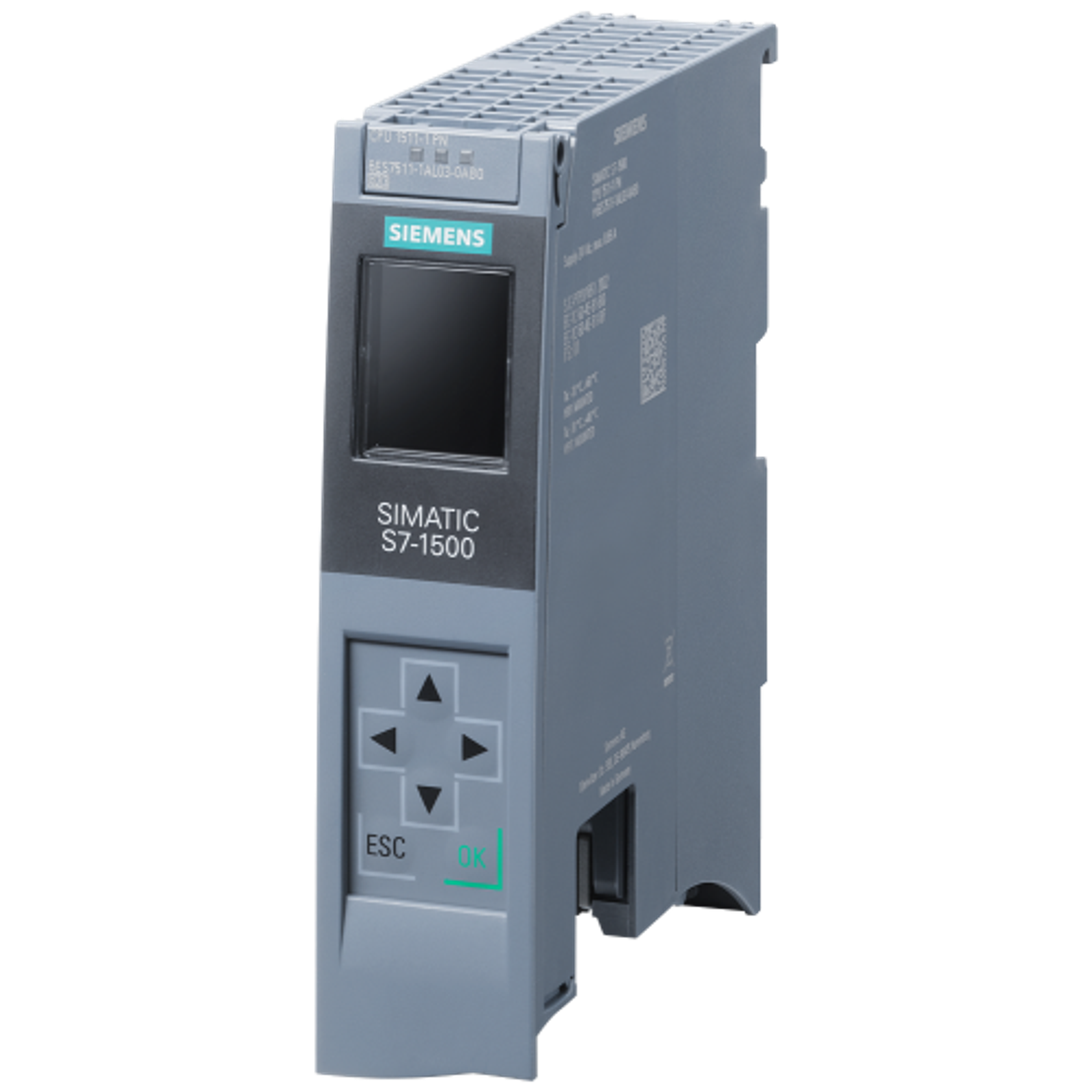

Siemens SIMATIC S7-1500 CPU 1511-1 PN 6ES7511-1AL03-0AB0 product view

Siemens SIMATIC S7-1500 CPU 1511-1 PN 6ES7511-1AL03-0AB0

6ES7511-1AL03-0AB0

6ES7511-1AL03-0AB0 is a Siemens SIMATIC S7-1500 CPU 1511-1 PN with 300 KB program work memory, 1.5 MB data work memory, one PROFINET IRT interface with a 2-port switch and 6 ns bit performance. A SIMATIC Memory Card is required.

Availability
In Stock
Condition
New Original
SKU
6ES7511-1AL03-0AB0
Lifecycle
Active
$702.68
Request a quote
Ask a product question

12 months warranty

Warranty coverage and terms are confirmed with your order.

Fast shipping

We coordinate the fastest available shipping option for your destination.

Secure payment

Available payment methods are handled through secure payment channels.

Worldwide delivery

Carrier and delivery options are confirmed for your destination before dispatch.

Independent supplier: Xindustra is not an authorized distributor, reseller, or representative of Siemens. Brand names are used for identification and compatibility purposes only. Read disclaimer

6ES7511-1AL03-0AB0 technical specifications

Identity, memory, interface and electrical data below follow Siemens' current exact product page and V21 technical documentation for this order number.

Manufacturer

Siemens

Manufacturer part number

6ES7511-1AL03-0AB0

Product family

SIMATIC S7-1500

Product type designation

CPU 1511-1 PN

CPU branch

Standard CPU

Hardware functional status

FS04

Firmware version

V4.1

Program work memory

300 KB

Data work memory

1.5 MB

Bit operation time

6 ns

SIMATIC Memory Card required

Yes

Maximum memory card capacity

32 GB

PROFINET interfaces

1

Primary interface

PROFINET IRT

Ethernet ports

2 × RJ45

Integrated switch

2-port switch

PROFINET IO Controller

Supported

PROFINET IO Device

Supported

Rated supply voltage

24 V DC

Permissible supply range

19.2 to 28.8 V DC

Rated current consumption

0.56 A

Maximum current consumption

0.9 A

Typical power loss

3.4 W

Siemens article number

6ES7511-1AL03-0AB0

Siemens PLM status

PM300: Active Product

Quantity unit

1 piece

Net weight

0.381 kg

Country of origin

Germany

6ES7511-1AL03-0AB0 is the current CPU 1511-1 PN generation listed in Siemens' Standard CPUs branch. It provides one PROFINET IRT interface with two RJ45 ports and requires a SIMATIC Memory Card for operation.

Selection and replacement checks

Match the complete order number, hardware functional status, firmware and TIA Portal project before replacing an earlier CPU 1511-1 PN. Siemens documents V21 for firmware V4.1 and V18 or higher for firmware V3.0; older TIA Portal versions can configure it as predecessor 6ES7511-1AK02-0AB0 with corresponding limitations.

Sourcing and order support

Order the exact product and condition your project requires, with assistance from quotation through delivery.

Exact product identification

Your quotation references the complete manufacturer part number to keep the requested product clear.

Condition options

Tell us whether you need new original, new surplus, used, refurbished or repaired equipment.

International delivery

Shipping options are prepared around your destination, quantity and requested delivery date.

Documentation support

Access available manufacturer product data, manuals and certificates associated with the order number.

6ES7511-1AL03-0AB0 product questions

Key identity, memory and engineering checks for this CPU.

What is Siemens 6ES7511-1AL03-0AB0?

6ES7511-1AL03-0AB0 is a SIMATIC S7-1500 CPU 1511-1 PN Standard CPU with 300 KB program memory, 1.5 MB data memory and one PROFINET IRT interface with a 2-port switch.

Does 6ES7511-1AL03-0AB0 require a SIMATIC Memory Card?

Yes. Siemens specifies that a SIMATIC Memory Card is required for operation; the CPU supports a card capacity up to 32 GB.

Is 6ES7511-1AL03-0AB0 the same as 6ES7511-1AK02-0AB0?

No. They are different order numbers and hardware generations. Siemens identifies 6ES7511-1AL03-0AB0 as the successor/current CPU 1511-1 PN generation; verify firmware and engineering compatibility before replacement.

How many PROFINET ports does 6ES7511-1AL03-0AB0 provide?

Its first PROFINET IRT interface uses an integrated 2-port switch with two RJ45 ports.
