Exact product identification
Your quotation references the complete manufacturer part number to keep the requested product clear.

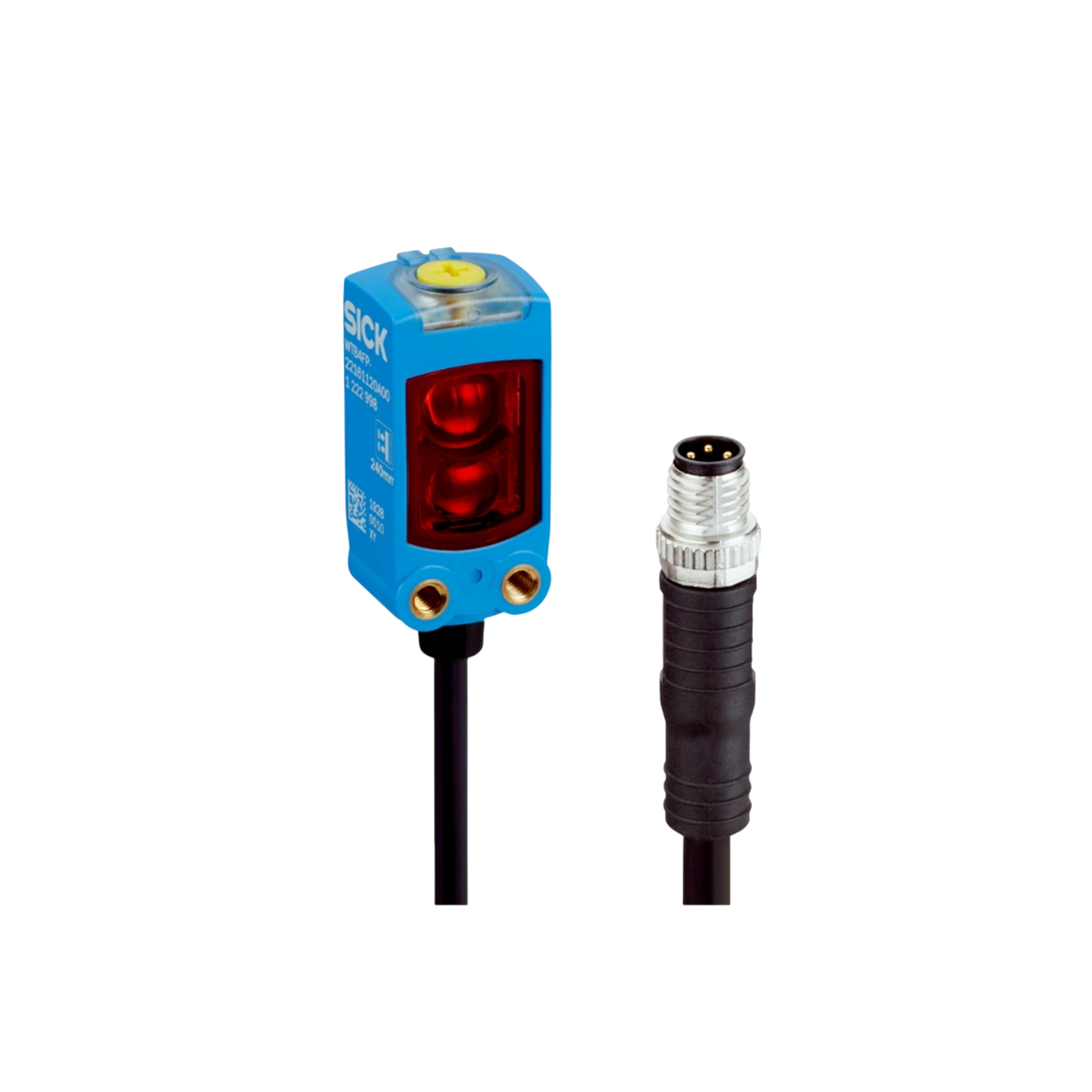

SICK W4F DoubleLine Background-Suppression Sensor WTB4FT-38161120A00
WTB4FT-38161120A00
SICK WTB4FT-38161120A00 W4F doubleline background-suppression sensor with Background suppression, DoubleLine, 7–120 mm sensing range, 2 complementary push-pull pnp/npn outputs and cable with m8 4-pin plug, 115 mm.
- Availability
- In Stock
- Manufacturer
- SICK
- Condition
- New Original
- SKU
- 1124151
- Lifecycle
- Active
12 months warranty
Warranty coverage and terms are confirmed with your order.
Fast shipping
We coordinate the fastest available shipping option for your destination.
Secure payment
Available payment methods are handled through secure payment channels.
Worldwide delivery
Carrier and delivery options are confirmed for your destination before dispatch.
Independent supplier: Xindustra is not an authorized distributor, reseller, or representative of SICK. Brand names are used for identification and compatibility purposes only. Read disclaimer
Technical specifications
Verified SICK ordering and technical data for WTB4FT-38161120A00, SICK part number 1124151.
Product identification
- Manufacturer type
- WTB4FT-38161120A00
- SICK part number
- 1124151
- Brand
- SICK
- Product family
- W4F
- Product type
- DoubleLine Background-Suppression Sensor
- Functional principle
- Background suppression, DoubleLine
- Manufacturer lifecycle
- Active
Connection and selection
Confirm the sensing geometry, connection, output logic and IO-Link requirements before installing WTB4FT-38161120A00.
Electrical integration
Image placeholder
Connection
Cable with M8 4-pin plug, 115 mm
Use the official connection diagram and confirm conductor or pin assignments before wiring the device.
Image placeholder
Light/dark switching
2 complementary push-pull PNP/NPN outputs
Verify the required output logic and the downstream control input before commissioning.
Image placeholder
COM2, port type A
IO-Link V1.1
The device supports IO-Link configuration and diagnostics while retaining SIO operation; confirm process-data mapping in the controller.
Application checks
Image placeholder
Background suppression, DoubleLine
Sensing range 7–120 mm
Apply the manufacturer operating-range and target/background guidance; the recommended range is 30–80 mm.
Image placeholder
Optical geometry
Background suppression, DoubleLine
This variant is intended for flat, film-wrapped, perforated, uneven and shiny objects. Confirm target behavior and mounting geometry in the application.
Do not substitute another W4F type solely because the housing looks the same. Verify the full type code, numeric SICK part number, optics, output behavior and connection.
Downloads and documentation
Use current SICK documentation for wiring, configuration and application checks.
Sourcing and order support
Order the exact product and condition your project requires, with assistance from quotation through delivery.
Condition options
Tell us whether you need new original, new surplus, used, refurbished or repaired equipment.
International delivery
Shipping options are prepared around your destination, quantity and requested delivery date.
Documentation support
Access available manufacturer product data, manuals and certificates associated with the order number.
WTB4FT-38161120A00 questions
Answers to common identification and integration questions for this exact sensor.
What is the SICK part number for WTB4FT-38161120A00?
SICK lists numeric part number 1124151 for type WTB4FT-38161120A00.
What sensing principle does WTB4FT-38161120A00 use?
WTB4FT-38161120A00 uses background suppression, doubleline with a specified sensing range of 7–120 mm.
What output and connection does it use?
It provides 2 complementary push-pull pnp/npn outputs, uses light/dark switching and connects by cable with m8 4-pin plug, 115 mm.
Does WTB4FT-38161120A00 support IO-Link?
Yes. The exact data sheet specifies IO-Link V1.1 at COM2 with SIO support.
Request pricing and availability
Send the required quantity, destination and application details so we can confirm WTB4FT-38161120A00 for your order.
Request a quote
