Exact product identification
Your quotation references the complete manufacturer part number to keep the requested product clear.

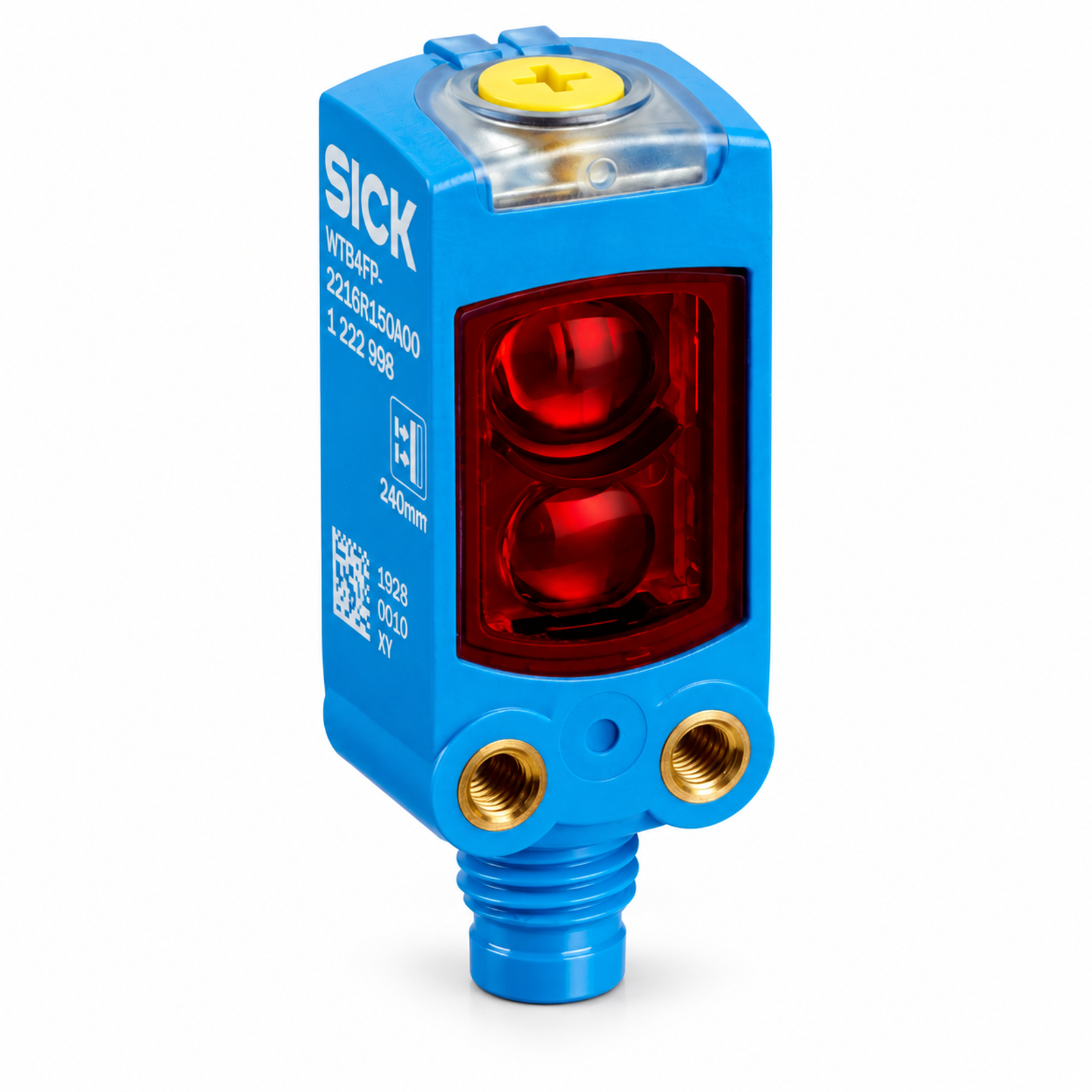

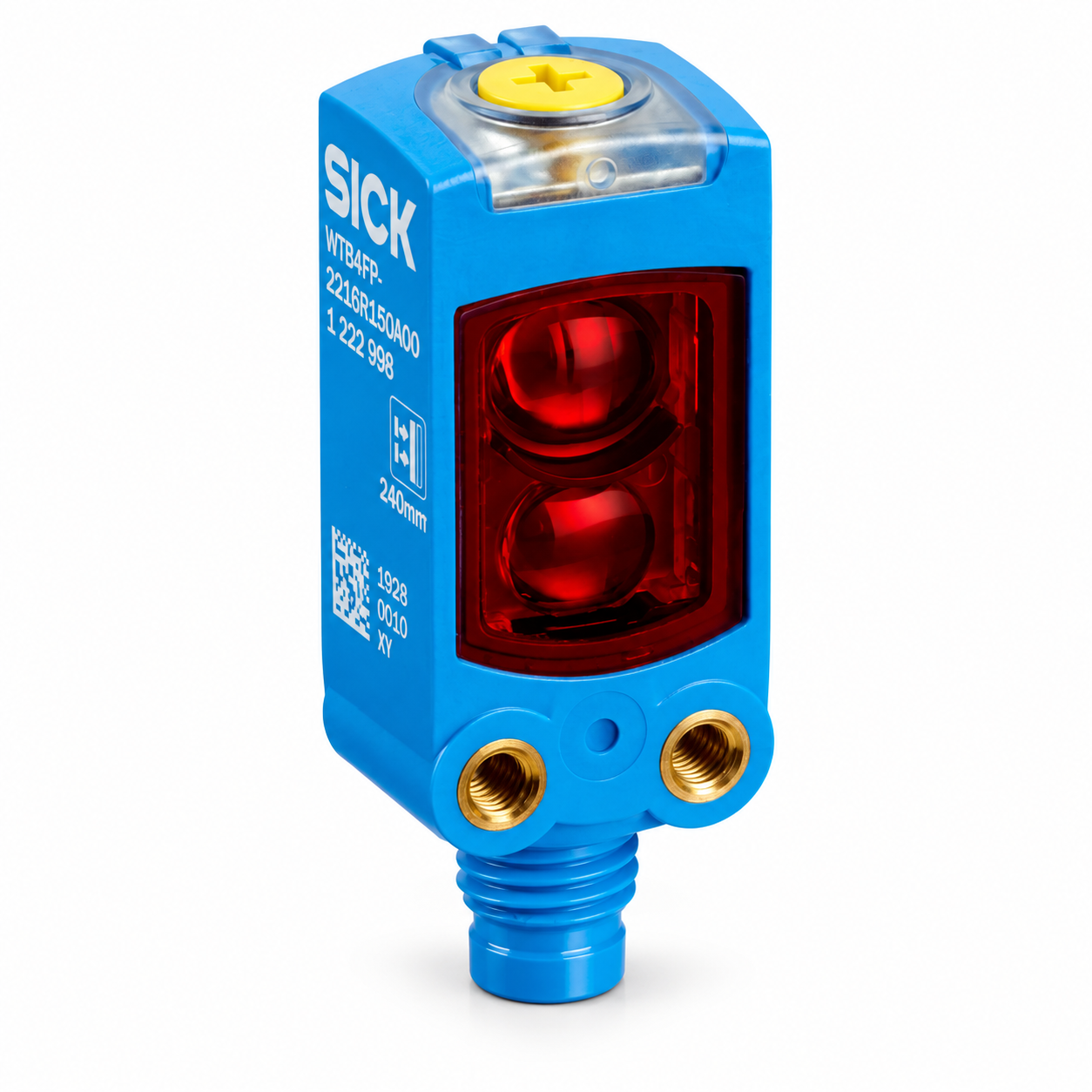

SICK W4F Photoelectric Sensor WTB4FP-2216R150A00
WTB4FP-2216R150A00
SICK WTB4FP-2216R150A00 miniature photoelectric proximity sensor with background suppression, MultiSwitch, 4–220 mm sensing range, two push-pull PNP/NPN outputs, distance value over IO-Link and an M8 4-pin connector.
- Availability
- In Stock
- Condition
- New Original
- SKU
- 1119989
- Lifecycle
- Active
12 months warranty
Warranty coverage and terms are confirmed with your order.
Fast shipping
We coordinate the fastest available shipping option for your destination.
Secure payment
Available payment methods are handled through secure payment channels.
Worldwide delivery
Carrier and delivery options are confirmed for your destination before dispatch.
Independent supplier: Xindustra is not an authorized distributor, reseller, or representative of SICK. Brand names are used for identification and compatibility purposes only. Read disclaimer
Technical specifications
Verified SICK ordering and technical data for WTB4FP-2216R150A00, SICK part number 1119989.
- Manufacturer type
WTB4FP-2216R150A00
- SICK part number
1119989
- Brand
SICK
- Product family
W4F
- Product type
Photoelectric proximity sensor
- Functional principle
Background suppression, MultiSwitch, distance value
- Manufacturer lifecycle
Active
- Sensing range
4–220 mm
- Adjustable background-suppression threshold
15–220 mm
- Recommended sensing range
40–140 mm
- Distance measuring range
15–220 mm
- Distance-value resolution
1 mm
- Light source
PinPoint LED, visible red light
- Light spot
Ø 4.2 mm at 130 mm
- Supply voltage
10–30 V DC
- Current consumption
≤ 25 mA without load at 24 V
- Digital outputs
2, individually adjustable
- Switching output
Push-pull PNP/NPN
- Maximum output current
100 mA
- Response time
≤ 1,000 µs
- Switching frequency
500 Hz
- Communication
IO-Link V1.1, COM2, SIO supported
- Connection
M8 male connector, 4-pin
- Housing
Rectangular flat design, plastic VISTAL®
- Dimensions
16 × 40.1 × 12.1 mm
- Weight
Approx. 30 g
- Enclosure rating
IP66 and IP67
- Operating temperature
−40 to +60 °C
- Storage temperature
−40 to +75 °C
Confirm the sensing geometry, M8 pin assignment, output logic and IO-Link process-data requirements before installing WTB4FP-2216R150A00.
M8 4-pin connection
Male connector Use a suitable four-pin M8 cordset and follow the official Cd-520 pin assignment for supply, QL1/C and QL2/MF.
IO-Link master
Port type A The sensor supports IO-Link V1.1 at COM2 and can also operate in SIO mode; verify the required process-data structure in the control system.
Background distance
Background suppression Maintain the data-sheet minimum separation between the taught sensing range and the background for the target reflectance.
Two switching points
MultiSwitch QL1 and QL2 are individually adjustable. Confirm output logic and downstream input behavior before commissioning.
Selection and replacement checks
Do not substitute another W4F type solely because the housing looks the same. Verify the full type code, SICK part number, optics, output mode and connection.
Downloads and documentation
Use current SICK documentation for wiring, configuration and application checks.
Sourcing and order support
Order the exact product and condition your project requires, with assistance from quotation through delivery.
Condition options
Tell us whether you need new original, new surplus, used, refurbished or repaired equipment.
International delivery
Shipping options are prepared around your destination, quantity and requested delivery date.
Documentation support
Access available manufacturer product data, manuals and certificates associated with the order number.
WTB4FP-2216R150A00 questions
Answers to common identification and integration questions for this exact sensor.
What is the SICK part number for WTB4FP-2216R150A00?
SICK lists numeric part number 1119989 for type WTB4FP-2216R150A00.
What sensing range does WTB4FP-2216R150A00 provide?
The official data sheet specifies a 4 mm to 220 mm sensing range and recommends 40 mm to 140 mm for best performance.
What outputs and connection does it use?
It provides two individually adjustable push-pull PNP/NPN outputs through a four-pin M8 male connector.
Does WTB4FP-2216R150A00 support IO-Link?
Yes. It supports IO-Link V1.1 at COM2, including configuration and process-data functions, and also supports SIO operation.
