Exact product identification
Your quotation references the complete manufacturer part number to keep the requested product clear.

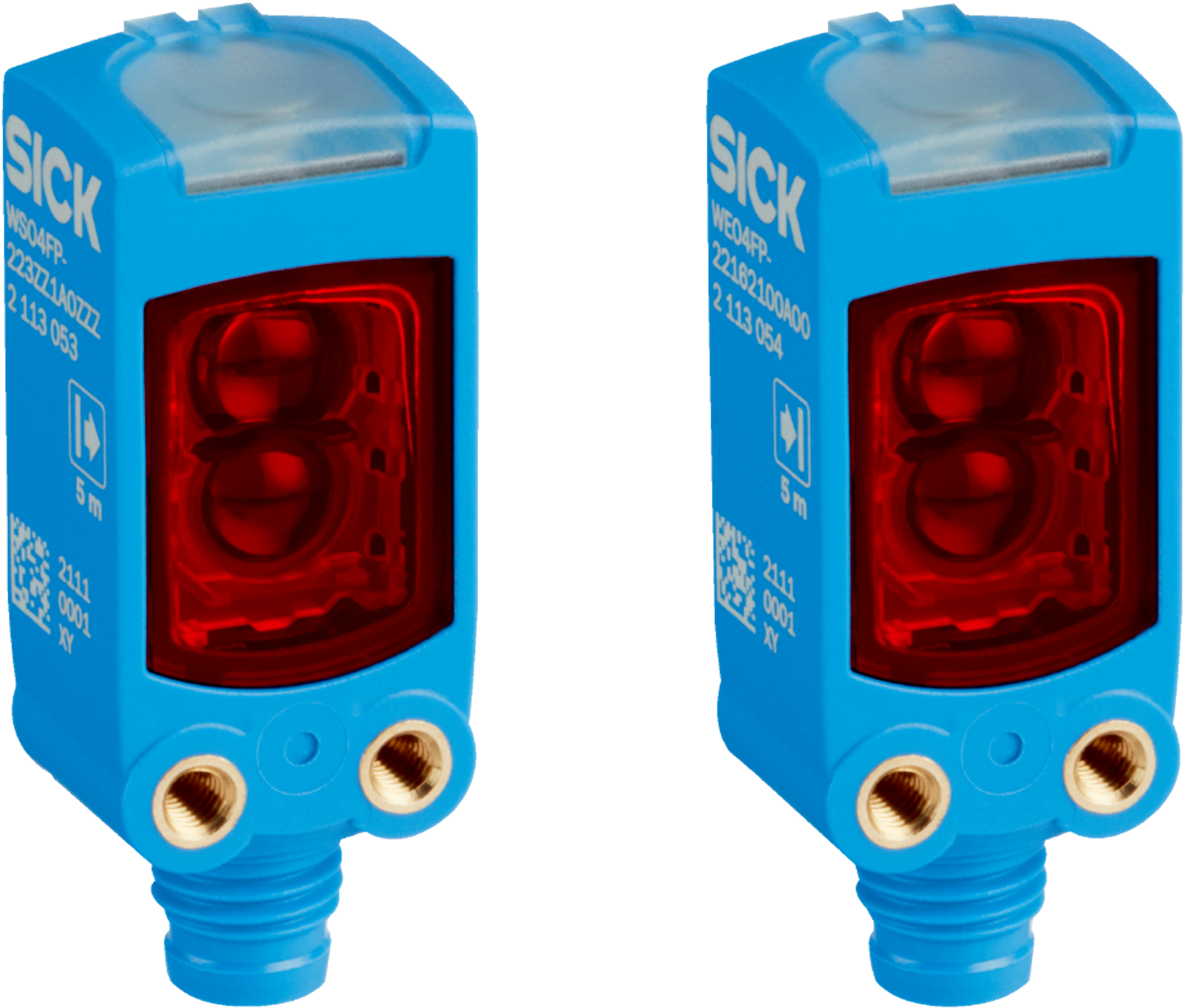

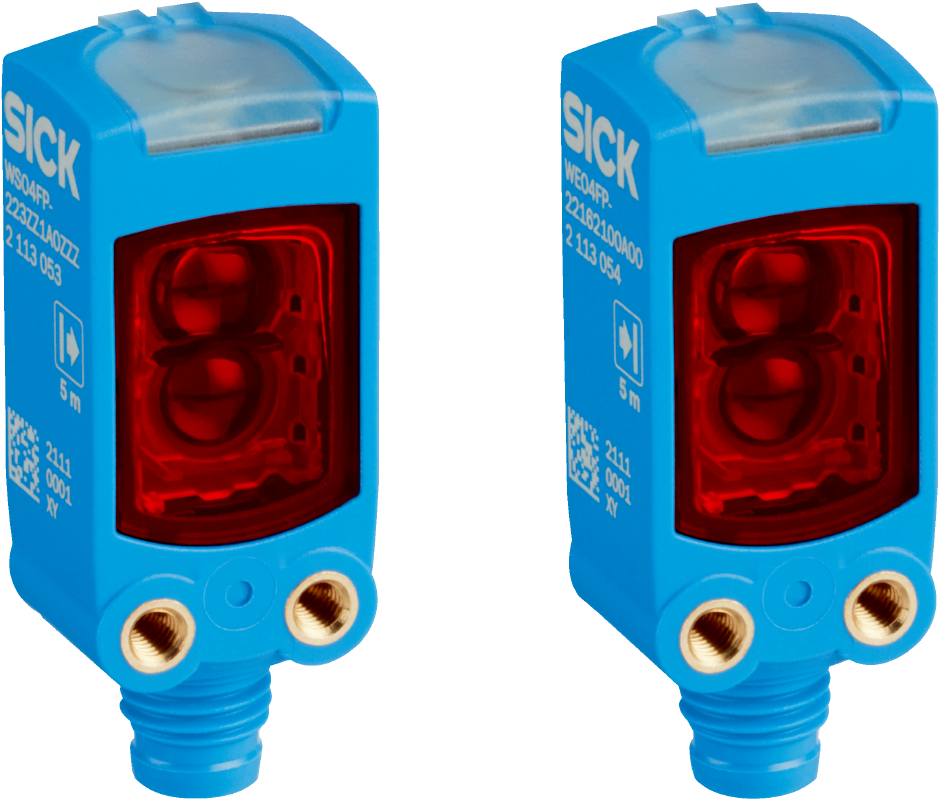

SICK W4F Through-Beam Sensor Set WSE4FP-22162100A00
WSE4FP-22162100A00
SICK WSE4FP-22162100A00 W4F through-beam sensor set with Through-beam sender and receiver, 0–10 m sensing range, 2 complementary push-pull pnp/npn outputs at receiver and m8 male connector, 4-pin on sender and receiver.
- Availability
- In Stock
- Condition
- New Original
- SKU
- 1116537
- Lifecycle
- Active
12 months warranty
Warranty coverage and terms are confirmed with your order.
Fast shipping
We coordinate the fastest available shipping option for your destination.
Secure payment
Available payment methods are handled through secure payment channels.
Worldwide delivery
Carrier and delivery options are confirmed for your destination before dispatch.
Independent supplier: Xindustra is not an authorized distributor, reseller, or representative of SICK. Brand names are used for identification and compatibility purposes only. Read disclaimer
Technical specifications
Verified SICK ordering and technical data for WSE4FP-22162100A00, SICK part number 1116537.
- Manufacturer type
WSE4FP-22162100A00
- SICK part number
1116537
- Brand
SICK
- Product family
W4F
- Product type
Through-Beam Sensor Set
- Functional principle
Through-beam sender and receiver
- Manufacturer lifecycle
Active
- Set components
WSO4FP-223ZZ1A0ZZZ sender and WEO4FP-22162100A00 receiver
- Sensing range
0–10 m
- Recommended operating range
0–7.5 m
- Light source
PinPoint LED, visible red light, 635 nm
- Light spot
Point-shaped, Ø 40 mm at 1,000 mm
- Documented application focus
high-operating-reserve detection between a separate sender and receiver
- Supply voltage
10–30 V DC
- Current consumption
≤ 20 mA without load at 24 V
- Digital outputs
2 complementary push-pull PNP/NPN outputs at receiver
- Switching mode
Light/dark switching
- Maximum output current
100 mA
- Response time
≤ 500 µs
- Switching frequency
1,000 Hz
- Communication
IO-Link V1.1, COM2, SIO supported
- Connection
M8 male connector, 4-pin on sender and receiver
- Housing
Rectangular flat design, plastic VISTAL®
- Dimensions
16 × 40.1 × 12.1 mm
- Weight
Approx. 30 g
- Enclosure rating
IP66 and IP67
- Operating temperature
−40 to +60 °C
- Storage temperature
−40 to +75 °C
Confirm the sensing geometry, connection, output logic and IO-Link requirements before installing WSE4FP-22162100A00.
M8 male connector, 4-pin on sender and receiver
Connection Use the official connection diagram and confirm conductor or pin assignments before wiring the device.
2 complementary push-pull PNP/NPN outputs at receiver
Light/dark switching Verify the required output logic and the downstream control input before commissioning.
IO-Link V1.1
COM2, port type A The device supports IO-Link configuration and diagnostics while retaining SIO operation; confirm process-data mapping in the controller.
Sensing range 0–10 m
Through-beam sender and receiver Apply the manufacturer operating-range and target/background guidance; the recommended range is 0–7.5 m.
Through-beam sender and receiver
Optical geometry This variant is intended for high-operating-reserve detection between a separate sender and receiver. Confirm target behavior and mounting geometry in the application.
Selection and replacement checks
Do not substitute another W4F type solely because the housing looks the same. Verify the full type code, numeric SICK part number, optics, output behavior and connection.
Downloads and documentation
Use current SICK documentation for wiring, configuration and application checks.
Sourcing and order support
Order the exact product and condition your project requires, with assistance from quotation through delivery.
Condition options
Tell us whether you need new original, new surplus, used, refurbished or repaired equipment.
International delivery
Shipping options are prepared around your destination, quantity and requested delivery date.
Documentation support
Access available manufacturer product data, manuals and certificates associated with the order number.
WSE4FP-22162100A00 questions
Answers to common identification and integration questions for this exact sensor.
What is the SICK part number for WSE4FP-22162100A00?
SICK lists numeric part number 1116537 for type WSE4FP-22162100A00.
What sensing principle does WSE4FP-22162100A00 use?
WSE4FP-22162100A00 uses through-beam sender and receiver with a specified sensing range of 0–10 m.
What output and connection does it use?
It provides 2 complementary push-pull pnp/npn outputs at receiver, uses light/dark switching and connects by m8 male connector, 4-pin on sender and receiver.
Does WSE4FP-22162100A00 support IO-Link?
Yes. The exact data sheet specifies IO-Link V1.1 at COM2 with SIO support.
