Exact product identification
Your quotation references the complete manufacturer part number to keep the requested product clear.

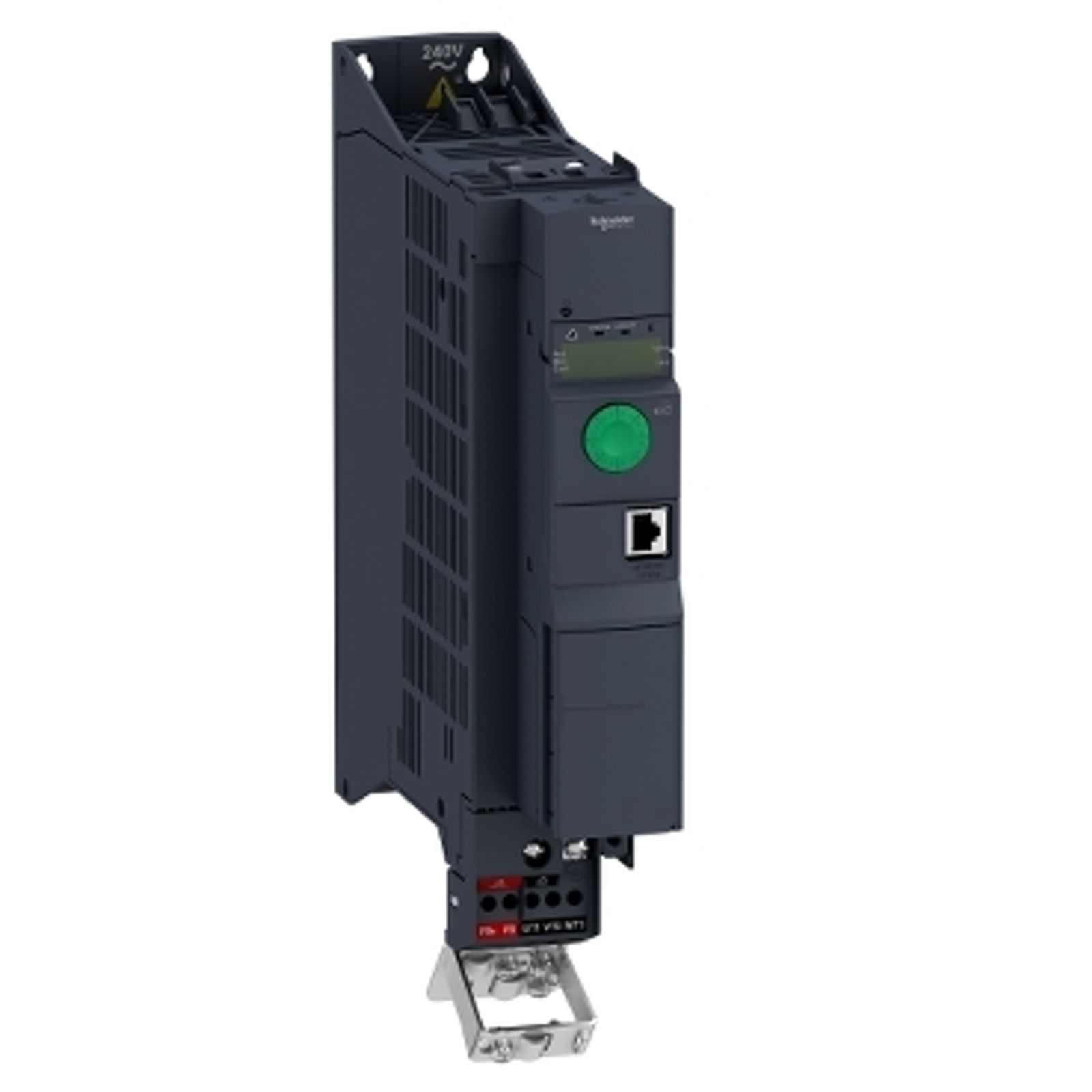

Schneider Electric Altivar Machine ATV320 Variable Speed Drive ATV320U22N4B
ATV320U22N4B
Altivar Machine ATV320 book-format variable-speed drive for 2.2 kW three-phase synchronous or asynchronous motors, with 380–500 V three-phase input, 5.5 A continuous output and IP20 protection.
- Availability
- In Stock
- Manufacturer
- Schneider Electric
- Condition
- New Original
- SKU
- ATV320U22N4B
- Lifecycle
- Active
12 months warranty
Warranty coverage and terms are confirmed with your order.
Fast shipping
We coordinate the fastest available shipping option for your destination.
Secure payment
Available payment methods are handled through secure payment channels.
Worldwide delivery
Carrier and delivery options are confirmed for your destination before dispatch.
Independent supplier: Xindustra is not an authorized distributor, reseller, or representative of Schneider Electric. Brand names are used for identification and compatibility purposes only. Read disclaimer
Technical specifications
Verified Schneider Electric technical and ordering data for ATV320U22N4B.
Product identification
- Manufacturer part number
- ATV320U22N4B
- Product range
- Altivar Machine ATV320
- Product type
- Variable speed drive
- Product application
- Complex machines
- Variant
- Standard version
- EAN
- 3606480931260
Compatibility and applications
Confirm the motor, incoming supply and machine integration requirements before selecting ATV320U22N4B.
Motor and machine fit
Image placeholder
2.2 kW / 3 hp
Synchronous and asynchronous motors
Designed to feed a compatible three-phase synchronous or asynchronous motor from a 380–500 V three-phase supply.
Image placeholder
Machine drive
Simple and advanced machines
The ATV320 family serves packaging, material handling, textile, material working, mechanical actuator and hoisting applications.
Before replacement or ordering
Image placeholder
Supply and output
Confirm electrical ratings
Check the 380–500 V three-phase input, 5.5 A continuous output and motor duty against the installed system.
Image placeholder
Mounting and wiring
Review installation requirements
Use the official manual to confirm clearances, wiring, protective devices and commissioning requirements.
A matching ATV320 family name or motor power does not by itself confirm interchangeability. Verify the complete MPN and installation data.
Downloads and documentation
Use current Schneider Electric documentation for selection, installation and commissioning.
Sourcing and order support
Order the exact product and condition your project requires, with assistance from quotation through delivery.
Condition options
Tell us whether you need new original, new surplus, used, refurbished or repaired equipment.
International delivery
Shipping options are prepared around your destination, quantity and requested delivery date.
Documentation support
Access available manufacturer product data, manuals and certificates associated with the order number.
ATV320U22N4B questions
Answers to common identification and selection questions for this exact order number.
What supply does ATV320U22N4B use?
It uses a 380–500 V AC three-phase input and controls a compatible three-phase motor.
What is the motor rating of ATV320U22N4B?
Schneider Electric rates this drive for 2.2 kW / 3 hp heavy-duty motor applications with 5.5 A continuous output current.
Is ATV320U22N4B a compact or book-format drive?
ATV320U22N4B is the slim book-format IP20 version. Do not substitute a compact or enclosed reference without checking dimensions, ratings and the complete MPN.
