Exact product identification
Your quotation references the complete manufacturer part number to keep the requested product clear.

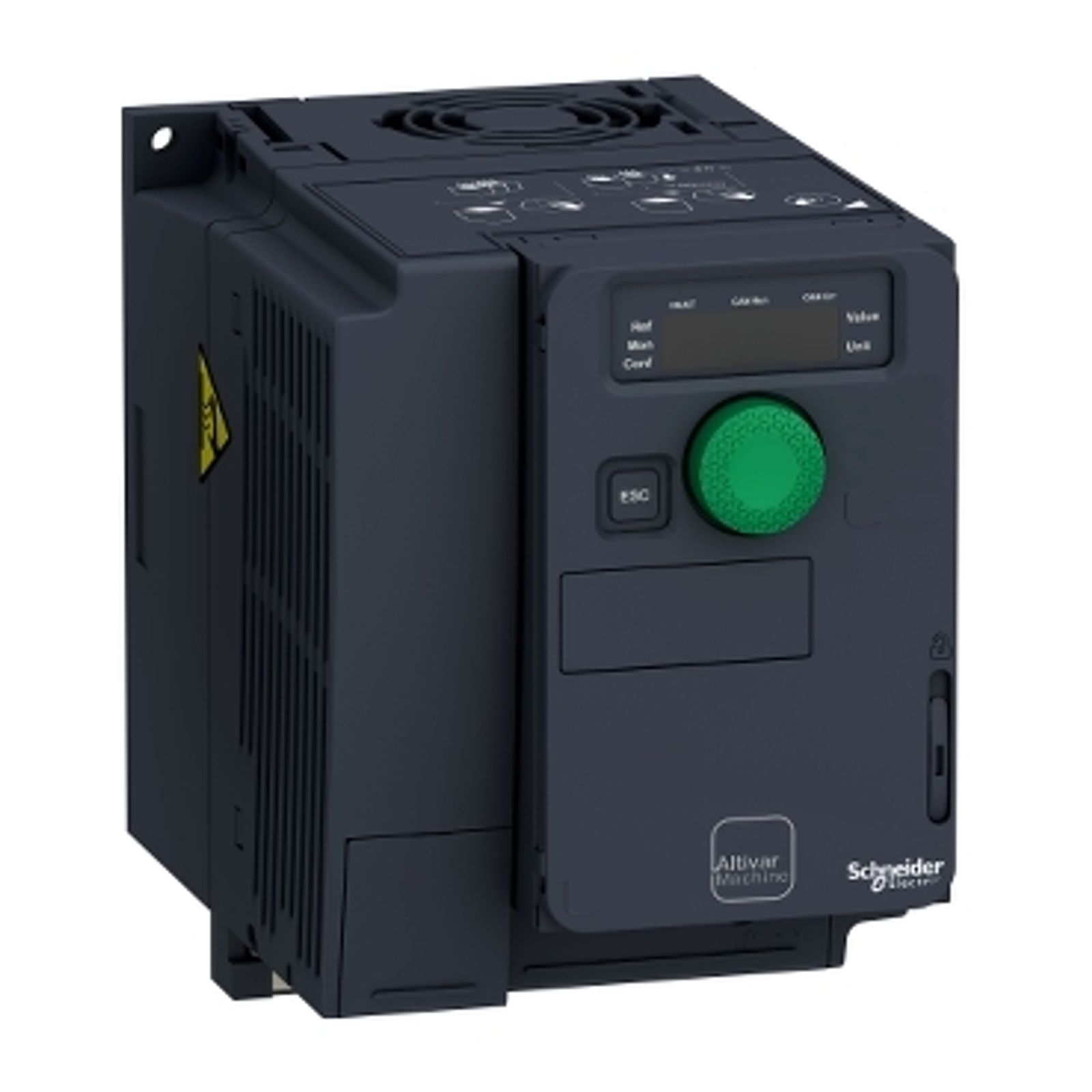

Schneider Electric Altivar Machine ATV320 Variable Speed Drive ATV320U22M2C
ATV320U22M2C
Altivar Machine ATV320 compact variable-speed drive for 2.2 kW three-phase synchronous or asynchronous motors, with 200–240 V single-phase input, 11 A continuous output and IP20 protection.
- Availability
- In Stock
- Condition
- New Original
- SKU
- ATV320U22M2C
- Lifecycle
- Active
12 months warranty
Warranty coverage and terms are confirmed with your order.
Fast shipping
We coordinate the fastest available shipping option for your destination.
Secure payment
Available payment methods are handled through secure payment channels.
Worldwide delivery
Carrier and delivery options are confirmed for your destination before dispatch.
Independent supplier: Xindustra is not an authorized distributor, reseller, or representative of Schneider Electric. Brand names are used for identification and compatibility purposes only. Read disclaimer
Technical specifications
Verified Schneider Electric technical and ordering data for ATV320U22M2C.
- Manufacturer part number
ATV320U22M2C
- Product range
Altivar Machine ATV320
- Product type
Variable speed drive
- Product application
Complex machines
- Variant
Standard version
- EAN
3606480966576
- Rated supply voltage
200–240 V AC
- Input phase
Single-phase
- Supply frequency
50–60 Hz
- Motor power, heavy duty
2.2 kW
- Motor power, heavy duty
3 hp
- Continuous output current at 4 kHz
11 A
- Line current at 200 V
23.9 A
- Apparent power at 240 V
4.8 kVA
- EMC filter
Integrated Class C2
- Motor control
Synchronous and asynchronous motors
- Output frequency range
0.1–599 Hz
- Nominal switching frequency
4 kHz
- Discrete inputs
7
- Discrete outputs
3
- Analog inputs
3
- Analog outputs
1
- Native communication
Modbus serial and CANopen
- Integrated safety functions
STO, SS1, SLS, SMS and GDL
- Degree of protection
IP20
- Drive format
Compact
- Mounting
Wall mount, vertical ±10°
- Width
105 mm
- Height
142 mm
- Depth
158 mm
- Net weight
1.6 kg
Confirm the motor, incoming supply and machine integration requirements before selecting ATV320U22M2C.
Synchronous and asynchronous motors
2.2 kW / 3 hp Designed to feed a compatible three-phase synchronous or asynchronous motor from a 200–240 V single-phase supply.
Simple and advanced machines
Machine drive The ATV320 family serves packaging, material handling, textile, material working, mechanical actuator and hoisting applications.
Confirm electrical ratings
Supply and output Check the 200–240 V single-phase input, 11 A continuous output and motor duty against the installed system.
Review installation requirements
Mounting and wiring Use the official manual to confirm clearances, wiring, protective devices and commissioning requirements.
Selection and replacement checks
A matching ATV320 family name or motor power does not by itself confirm interchangeability. Verify the complete MPN and installation data.
Downloads and documentation
Use current Schneider Electric documentation for selection, installation and commissioning.
ATV320U22M2C product datasheetProduct datasheet · Exact MPN · English · PDFDownloadAltivar Machine ATV320 catalogCatalog · English · PDF / webOpen resourceATV320 installation manualInstallation manual · English · PDF / webOpen resourceATV320U22M2C product pageProduct data · Exact MPN · English · WebOpen resource
Sourcing and order support
Order the exact product and condition your project requires, with assistance from quotation through delivery.
Condition options
Tell us whether you need new original, new surplus, used, refurbished or repaired equipment.
International delivery
Shipping options are prepared around your destination, quantity and requested delivery date.
Documentation support
Access available manufacturer product data, manuals and certificates associated with the order number.
ATV320U22M2C questions
Answers to common identification and selection questions for this exact order number.
What supply does ATV320U22M2C use?
It uses a 200–240 V AC single-phase input and controls a compatible three-phase motor.
What is the motor rating of ATV320U22M2C?
Schneider Electric rates this drive for 2.2 kW / 3 hp heavy-duty motor applications with 11 A continuous output current.
Is ATV320U22M2C a compact or book-format drive?
ATV320U22M2C is the compact IP20 version. Do not substitute a book or enclosed reference without checking dimensions, ratings and the complete MPN.
