Exact product identification
Your quotation references the complete manufacturer part number to keep the requested product clear.

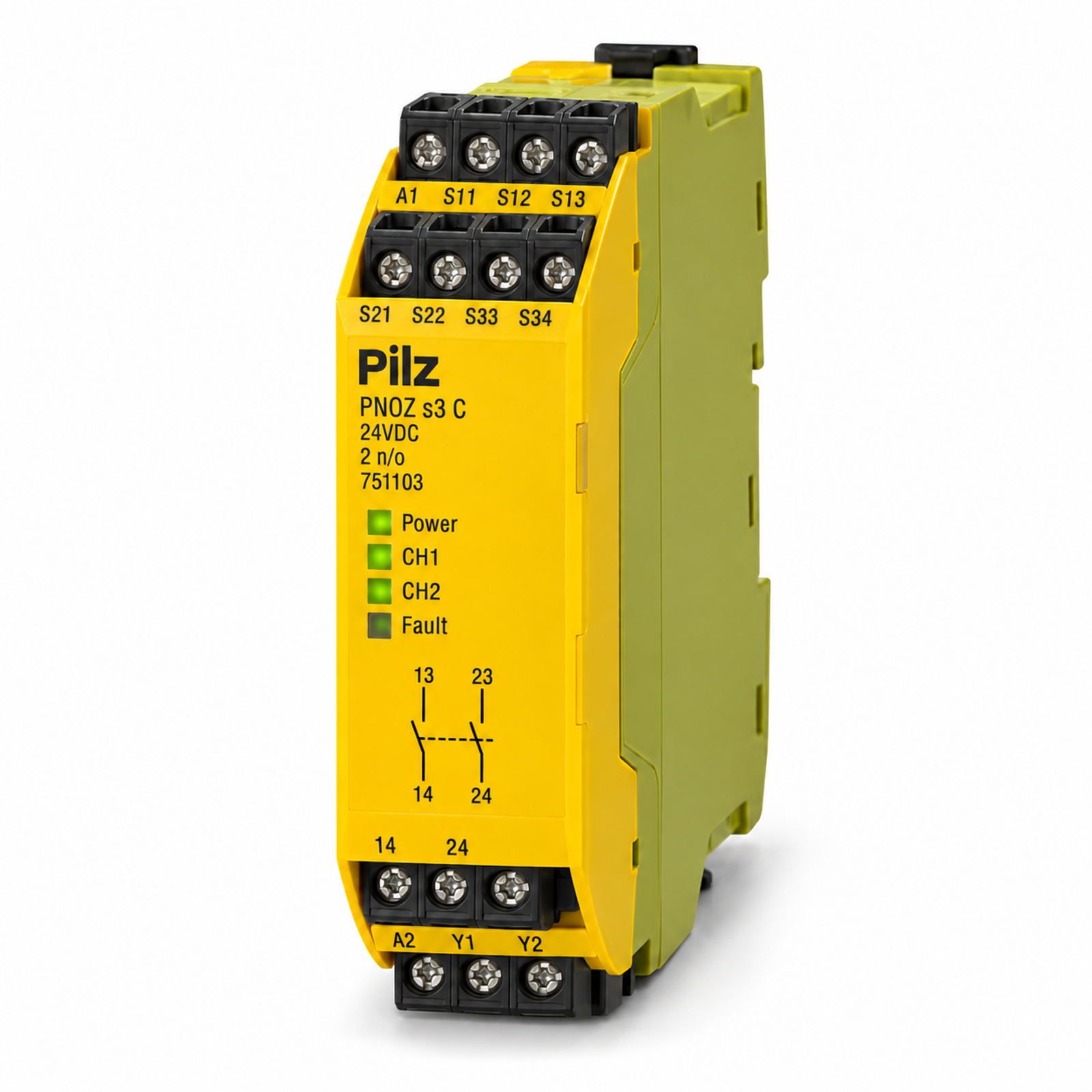

Pilz PNOZ s3 C Safety Relay 751103
751103
Pilz 751103 is a 24 V DC PNOZ s3 C standalone PNOZsigma safety relay with 2 n/o safety contacts, one semiconductor output and plug-in spring-loaded terminals for emergency stop, safety gates and light guards.
- Availability
- In Stock
- Manufacturer
- Pilz
- Condition
- New Original
- SKU
- 751103
- Lifecycle
- Active
12 months warranty
Warranty coverage and terms are confirmed with your order.
Fast shipping
We coordinate the fastest available shipping option for your destination.
Secure payment
Available payment methods are handled through secure payment channels.
Worldwide delivery
Carrier and delivery options are confirmed for your destination before dispatch.
Independent supplier: Xindustra is not an authorized distributor, reseller, or representative of Pilz. Brand names are used for identification and compatibility purposes only. Read disclaimer
Technical specifications
Pilz manufacturer data for product ID 751103.
Product identification and technical data
- Pilz product ID
- 751103
- Product designation
- PNOZ s3 C 24VDC 2 n/o
- GTIN
- 4046548025552
- Product family
- PNOZsigma
- Product type
- Standalone safety relay
- Supply voltage
- 24 V DC
- Power consumption
- 2.5 W
- Number of inputs
- 2
- Input wiring
- 1- or 2-channel, with or without shorts detection
- Start modes
- Manual or automatic
- Relay outputs
- 2 N/O safety contacts
- Semiconductor outputs
- 1
- Applications
- Emergency stop, safety gates and light guards
- Safety-contact utilization category AC-1
- 240 V AC / 6 A max.
- Safety-contact utilization category DC-1
- 24 V DC / 6 A max.
- Safety-contact utilization category AC-15
- 230 V AC / 5 A max.
- Contact material
- AgCuNi + 0.2 µm Au
- Terminal technology
- Plug-in spring-loaded terminals
- Housing degree of protection
- IP40
- Mounting position
- Any
- Housing material
- PC
- Dimensions (W × H × D)
- 17.5 × 100 × 120 mm
- Net weight
- 140 g
- Approvals
- CE, CCC, UKCA, cULus, EAC and TÜV
- RoHS compliant
- Yes
- Lifecycle
- Active
