Exact product identification
Your quotation references the complete manufacturer part number to keep the requested product clear.

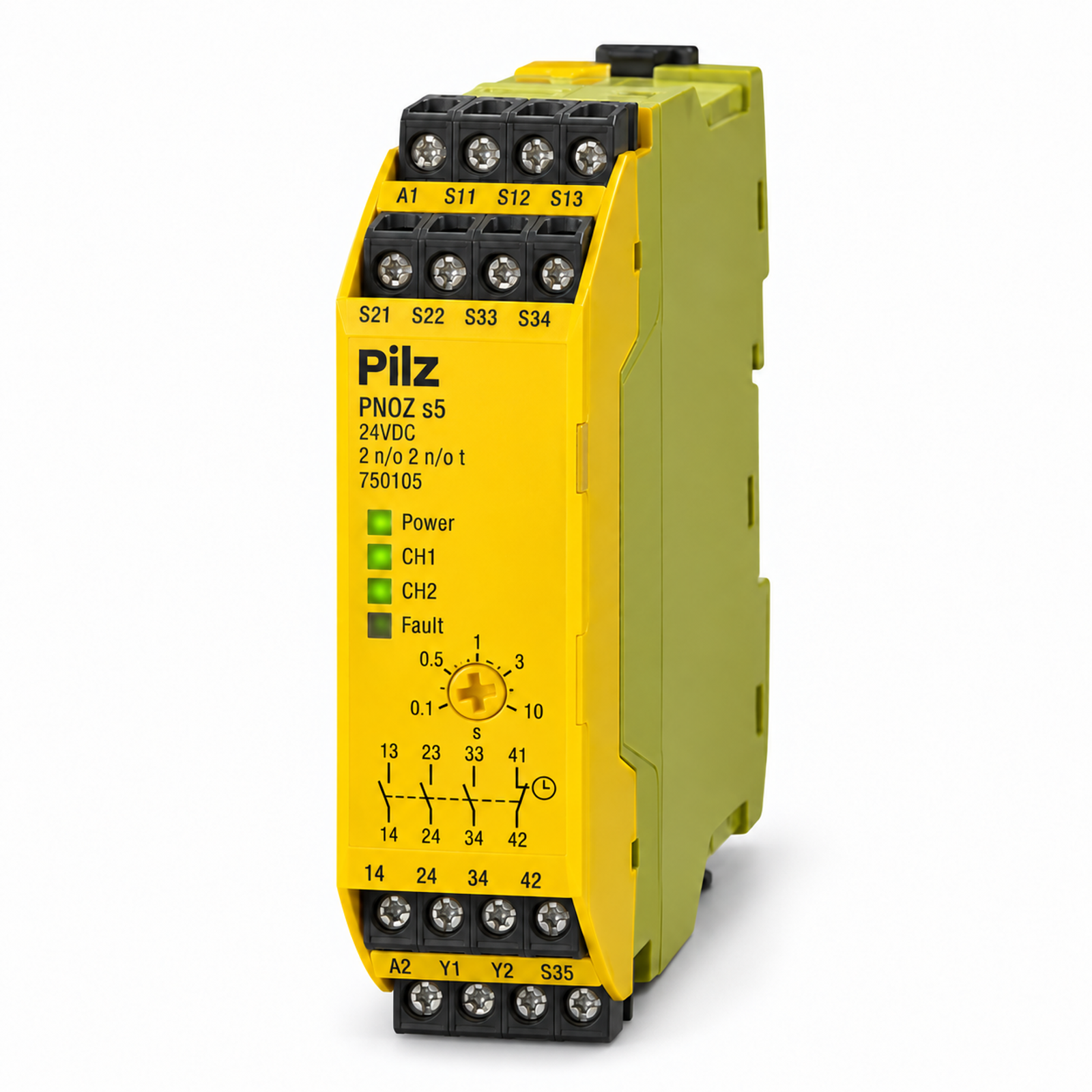

Pilz PNOZ s5 Safety Relay 750105
750105
Pilz 750105 is a 24 V DC PNOZ s5 standalone PNOZsigma safety relay with 2 n/o instantaneous and 2 n/o time-delayed safety contacts, one semiconductor output and plug-in screw terminals for emergency stop, safety gates and light curtains with time monitoring.
- Availability
- In Stock
- Manufacturer
- Pilz
- Condition
- New Original
- SKU
- 750105
- Lifecycle
- Active
12 months warranty
Warranty coverage and terms are confirmed with your order.
Fast shipping
We coordinate the fastest available shipping option for your destination.
Secure payment
Available payment methods are handled through secure payment channels.
Worldwide delivery
Carrier and delivery options are confirmed for your destination before dispatch.
Independent supplier: Xindustra is not an authorized distributor, reseller, or representative of Pilz. Brand names are used for identification and compatibility purposes only. Read disclaimer
Technical specifications
Pilz manufacturer data for product ID 750105.
Product identification and technical data
- Pilz product ID
- 750105
- Product designation
- PNOZ s5 24VDC 2 n/o 2 n/o t
- GTIN
- 4046548025668
- Product family
- PNOZsigma
- Product type
- Standalone safety relay
- Supply voltage
- 24 V DC
- Power consumption
- 4 W
- Number of inputs
- 2
- Input wiring
- 1- or 2-channel, with or without shorts detection
- Start modes
- Manual or automatic
- Relay outputs
- 2 N/O instantaneous and 2 N/O time-delayed safety contacts
- Semiconductor outputs
- 1
- Applications
- Emergency stop, safety gates and light curtains with time monitoring
- Selectable delay range
- 0.04–300 s
- Safety-contact utilization category AC-1
- 240 V AC / 6 A max.
- Safety-contact utilization category DC-1
- 24 V DC / 6 A max.
- Safety-contact utilization category AC-15
- 230 V AC / 3 A max.
- Contact material
- AgCuNi + 0.2 µm Au
- Terminal technology
- Plug-in screw terminals
- Housing degree of protection
- IP40
- Mounting position
- Any
- Housing material
- PC
- Dimensions (W × H × D)
- 22.5 × 98 × 120 mm
- Net weight
- 235 g
- Approvals
- CE, CCC, UKCA, cULus, EAC and TÜV
- RoHS compliant
- Yes
- Lifecycle
- Active
Sourcing and order support
Order the exact product and condition your project requires, with assistance from quotation through delivery.
Condition options
Tell us whether you need new original, new surplus, used, refurbished or repaired equipment.
International delivery
Shipping options are prepared around your destination, quantity and requested delivery date.
Documentation support
Access available manufacturer product data, manuals and certificates associated with the order number.
Request pricing and availability
Send quantity and destination so we can confirm your Pilz 750105 requirement.
Request a quote
