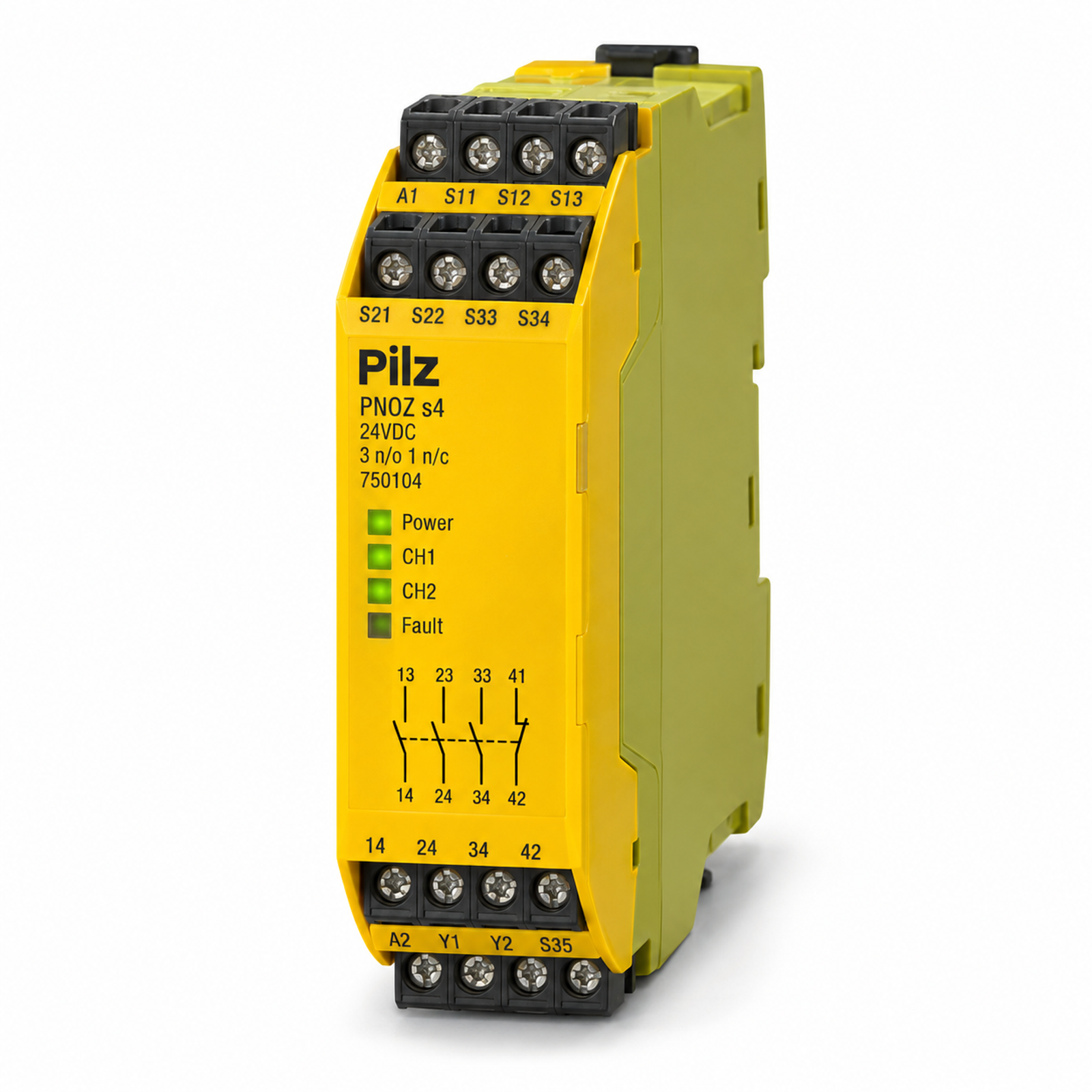

Pilz PNOZ s4 Safety Relay 750104
750104
Pilz 750104 is a 24 V DC PNOZ s4 standalone safety relay with three normally open safety contacts, one normally closed contact, one semiconductor output and plug-in screw terminals for emergency-stop, safety-gate and light-guard applications.
- Availability
- In Stock
- Manufacturer
- Pilz
- Condition
- New Original
- SKU
- 750104
- Lifecycle
- Active
12 months warranty
Warranty coverage and terms are confirmed with your order.
Fast shipping
We coordinate the fastest available shipping option for your destination.
Secure payment
Available payment methods are handled through secure payment channels.
Worldwide delivery
Carrier and delivery options are confirmed for your destination before dispatch.
Independent supplier: Xindustra is not an authorized distributor, reseller, or representative of Pilz. Brand names are used for identification and compatibility purposes only. Read disclaimer
Technical specifications
Pilz manufacturer data for product ID 750104.
Product identification and technical data
- Pilz product ID
- 750104
- Product designation
- PNOZ s4 24VDC 3 n/o 1 n/c
- GTIN
- 4046548025675
- Product family
- PNOZsigma
- Product type
- Standalone safety relay
- Supply voltage
- 24 V DC
- Power consumption
- 2.5 W
- Number of inputs
- 2
- Input wiring
- 1- or 2-channel, with or without shorts detection
- Start modes
- Manual or automatic
- Relay outputs
- 3 N/O safety contacts and 1 N/C contact
- Semiconductor outputs
- 1
- Applications
- Emergency stop, safety gates and light guards
- Safety-contact utilization category AC-1
- 240 V AC / 6 A max.
- Safety-contact utilization category DC-1
- 24 V DC / 6 A max.
- Safety-contact utilization category AC-15
- 230 V AC / 5 A max.
- Contact material
- AgCuNi + 0.2 µm Au
- Terminal technology
- Plug-in screw terminals
- Conductor cross section
- 24–12 AWG
- Housing degree of protection
- IP40
- Mounting position
- Any
- Housing material
- PC
- Dimensions (W × H × D)
- 22.5 × 98 × 120 mm
- Net weight
- 185 g
- Approvals
- CE, CCC, UKCA, cULus, EAC and TÜV
- RoHS compliant
- Yes
- Lifecycle
- Active
