Exact product identification
Your quotation references the complete manufacturer part number to keep the requested product clear.

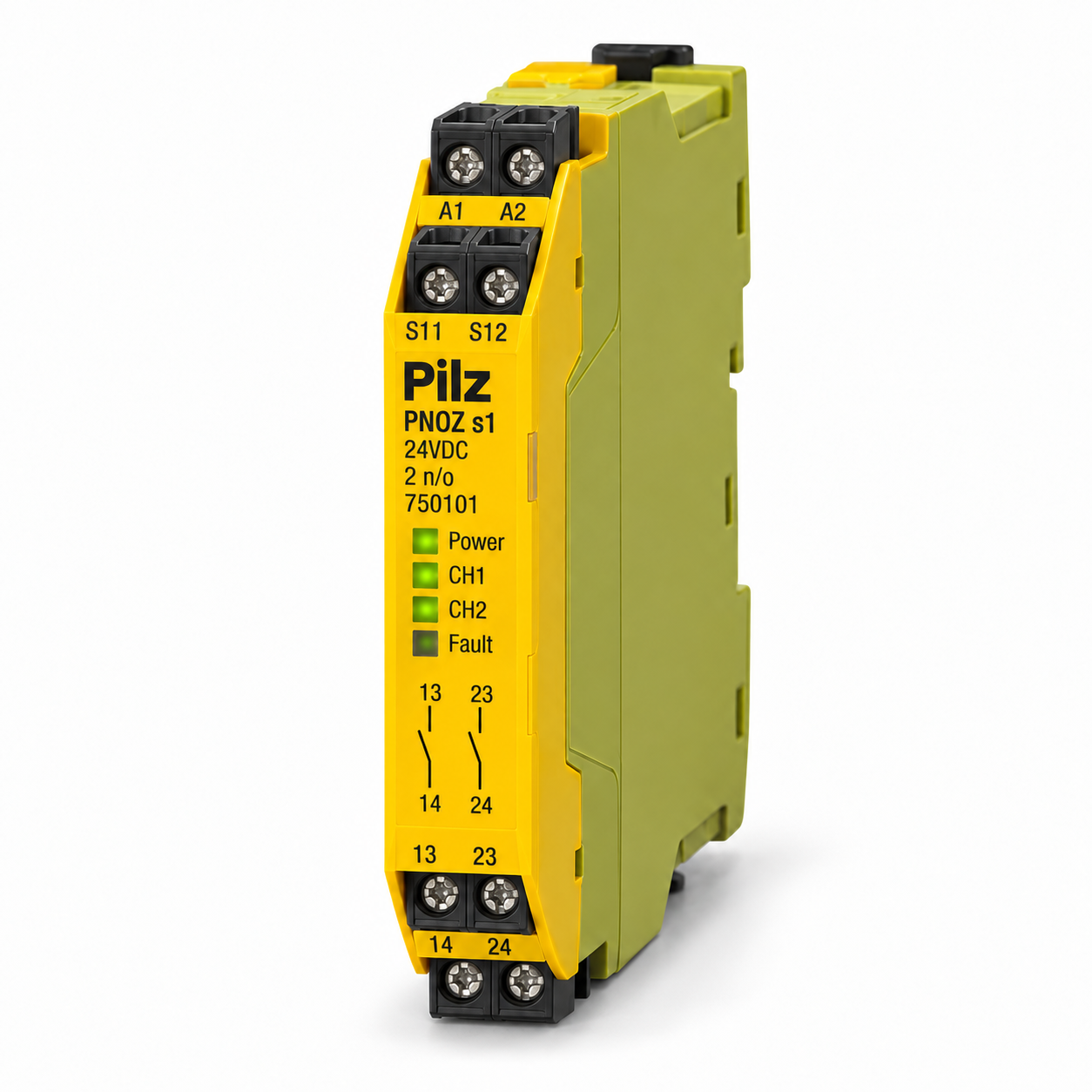

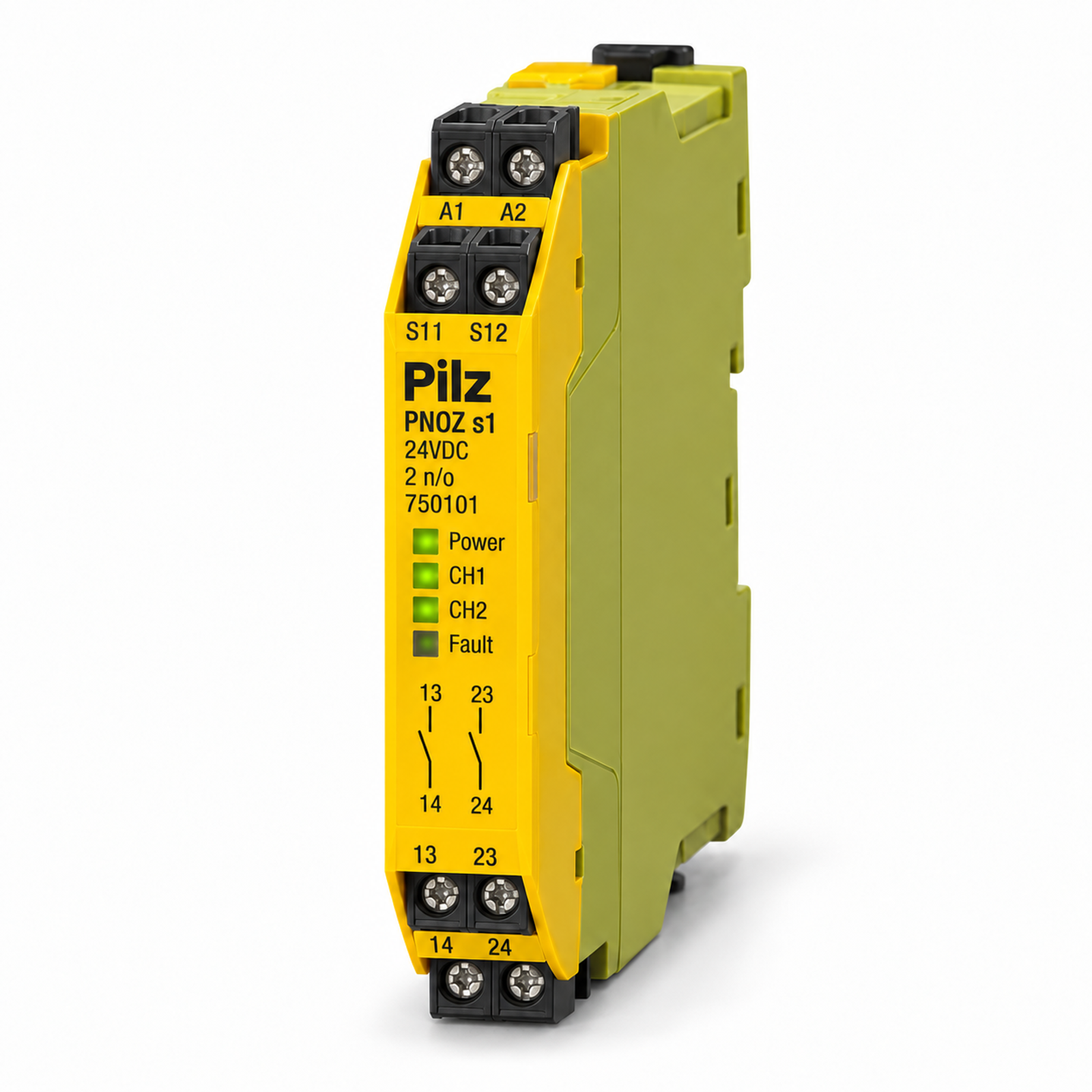

Pilz PNOZ s1 Safety Relay 750101
750101
Pilz 750101 is a 24 V DC PNOZ s1 standalone PNOZsigma safety relay with 2 n/o safety contacts, one semiconductor output and plug-in screw terminals for emergency stop and safety gates.
- Availability
- In Stock
- Manufacturer
- Pilz
- Condition
- New Original
- SKU
- 750101
- Lifecycle
- Active
12 months warranty
Warranty coverage and terms are confirmed with your order.
Fast shipping
We coordinate the fastest available shipping option for your destination.
Secure payment
Available payment methods are handled through secure payment channels.
Worldwide delivery
Carrier and delivery options are confirmed for your destination before dispatch.
Independent supplier: Xindustra is not an authorized distributor, reseller, or representative of Pilz. Brand names are used for identification and compatibility purposes only. Read disclaimer
Technical specifications
Pilz manufacturer data for product ID 750101.
Product identification and technical data
- Pilz product ID
- 750101
- Product designation
- PNOZ s1 24VDC 2 n/o
- GTIN
- 4046548025705
- Product family
- PNOZsigma
- Product type
- Standalone safety relay
- Supply voltage
- 24 V DC
- Power consumption
- 2 W
- Number of inputs
- 1
- Input wiring
- 1-channel wiring
- Start modes
- Manual or automatic
- Relay outputs
- 2 N/O safety contacts
- Semiconductor outputs
- 1
- Applications
- Emergency stop and safety gates
- Safety-contact utilization category AC-1
- 240 V AC / 3 A max.
- Safety-contact utilization category DC-1
- 24 V DC / 3 A max.
- Safety-contact utilization category AC-15
- 230 V AC / 1.5 A max.
- Contact material
- AgSnO2
- Terminal technology
- Plug-in screw terminals
- Housing degree of protection
- IP40
- Mounting position
- Any
- Housing material
- PC
- Dimensions (W × H × D)
- 12.5 × 98 × 120 mm
- Net weight
- 105 g
- Approvals
- CE, CCC, UKCA, cULus, EAC and TÜV
- RoHS compliant
- Yes
- Lifecycle
- Active
