Exact product identification
Your quotation references the complete manufacturer part number to keep the requested product clear.

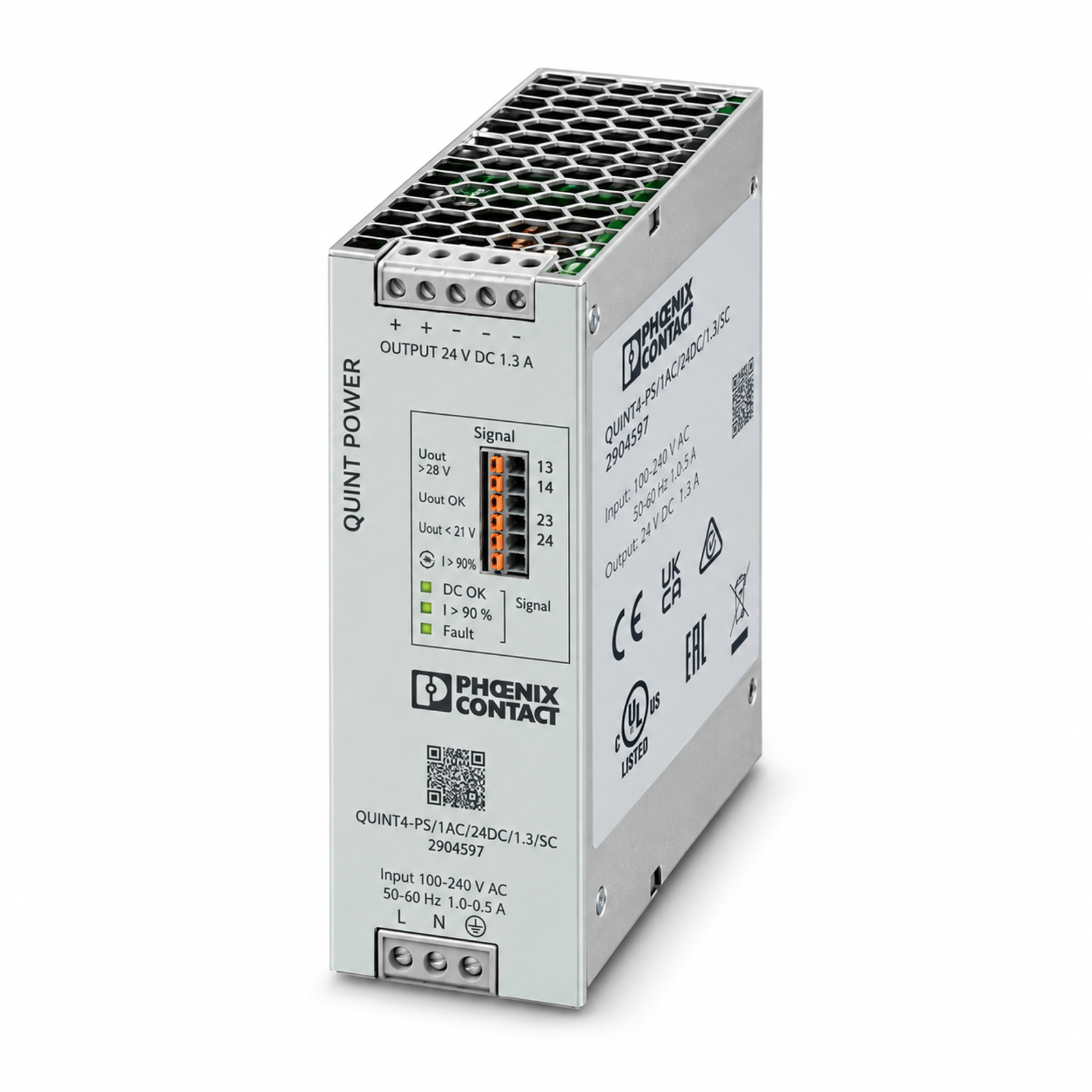

Phoenix Contact QUINT4-PS/1AC/24DC/1.3/SC Power Supply 2904597
2904597
Phoenix Contact 2904597 is a QUINT4 POWER DIN-rail power supply with single-phase input, 24 V DC / 1.3 A nominal output, NFC configuration and preventive function monitoring.
- Availability
- In Stock
- Manufacturer
- Phoenix Contact
- Condition
- New Original
- SKU
- 2904597
- Lifecycle
- Active
12 months warranty
Warranty coverage and terms are confirmed with your order.
Fast shipping
We coordinate the fastest available shipping option for your destination.
Secure payment
Available payment methods are handled through secure payment channels.
Worldwide delivery
Carrier and delivery options are confirmed for your destination before dispatch.
Independent supplier: Xindustra is not an authorized distributor, reseller, or representative of Phoenix Contact. Brand names are used for identification and compatibility purposes only. Read disclaimer
Technical specifications
Phoenix Contact manufacturer data for item number 2904597.
Product identification and electrical data
- Phoenix Contact item number
- 2904597
- Product designation
- QUINT4-PS/1AC/24DC/1.3/SC
- Product family
- QUINT POWER
- Product type
- DIN-rail power supply
- Number of input phases
- 1
- AC input voltage range
- 100–240 V AC (-15%/+10%)
- DC input voltage range
- 110–250 V DC (-18%/+40%)
- Nominal output voltage
- 24 V DC
- Output voltage setting range
- 24–28 V DC
- Nominal output current
- 1.3 A
- Nominal output power
- 31.2 W
- Static Boost current
- 1.625 A at up to 40 °C
- Dynamic Boost current
- 2.6 A for 5 s at up to 60 °C
- Typical efficiency
- 89.2% at 120 V AC; 90.7% at 230 V AC
- Configuration interface
- NFC
- Monitoring
- Configurable preventive function monitoring
- Power connection method
- Screw connection
- Mounting
- 35 mm DIN rail (EN 60715)
- Degree of protection
- IP20
- Operating temperature
- -25 to +70 °C
- Dimensions (W × H × D)
- 22.5 × 99 × 90 mm
- Weight excluding packaging
- 187 g
- Housing material
- Plastic
- Lifecycle
- Active
