Exact product identification
Your quotation references the complete manufacturer part number to keep the requested product clear.

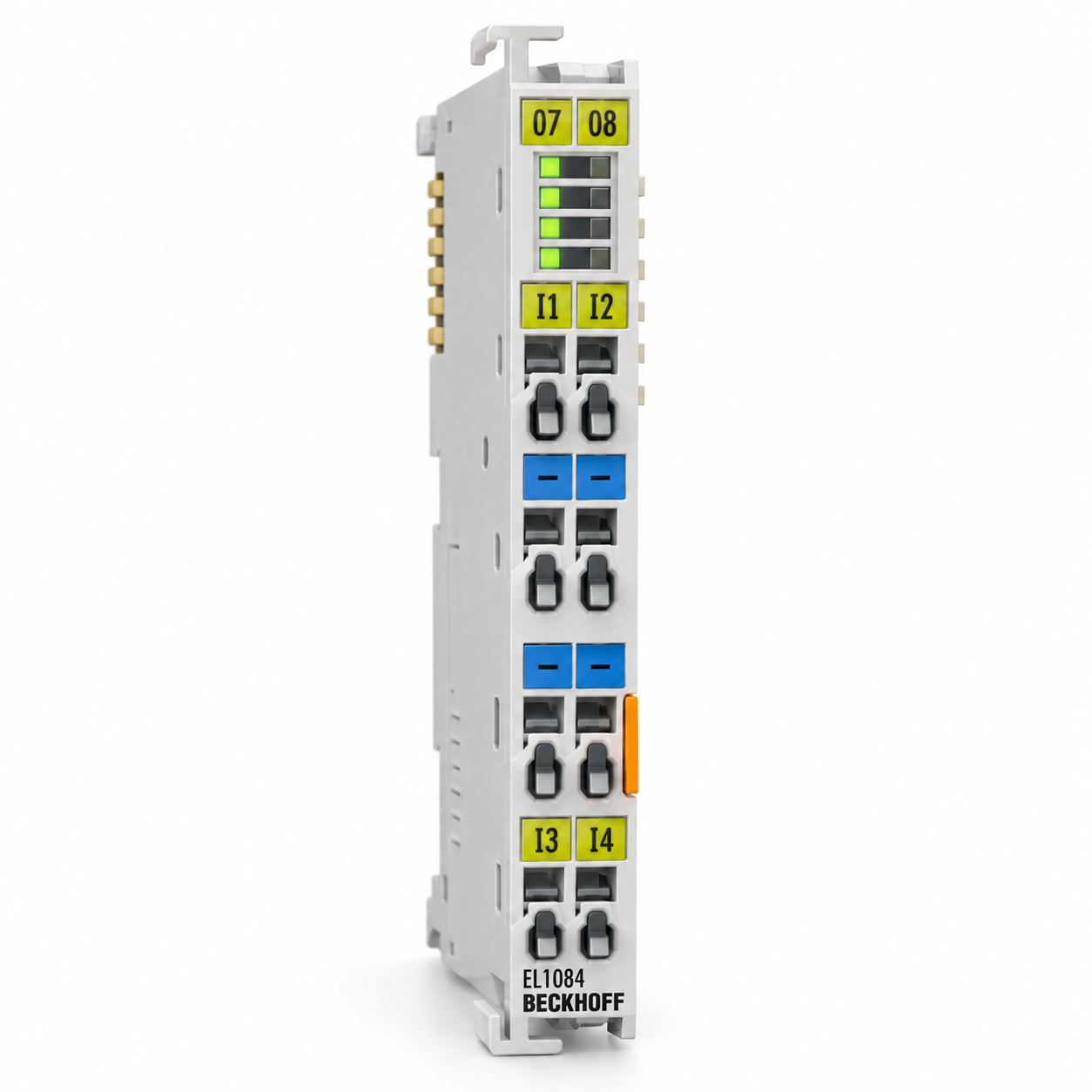

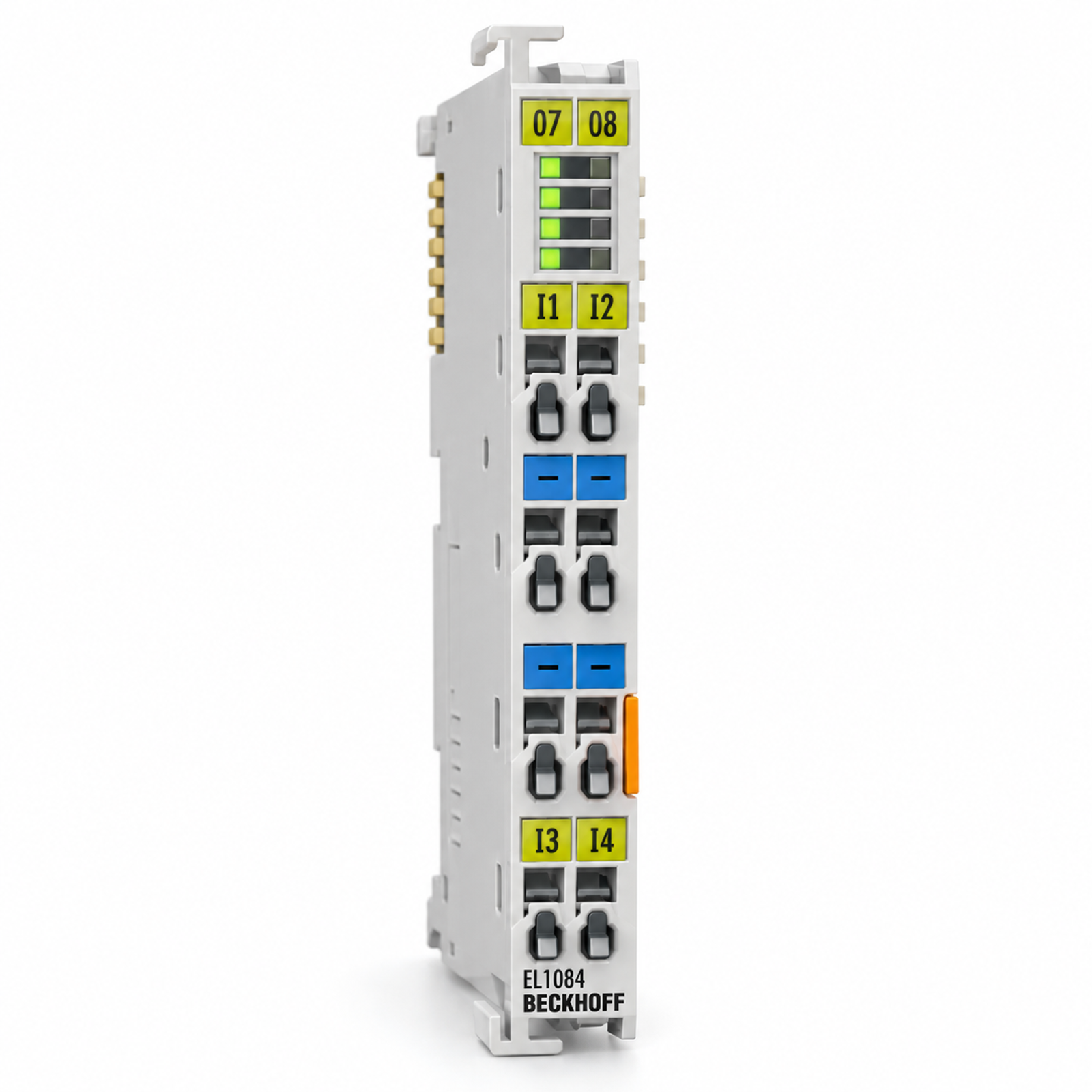

Beckhoff EL1084 4-Channel Digital Input EtherCAT Terminal
EL1084
Beckhoff EL1084 is a 4-channel EtherCAT digital input terminal for ground-switching 24 V DC signals, with 2-wire connection and a typical 3 ms input filter.
- Availability
- In Stock
- Manufacturer
- Beckhoff
- Condition
- New Original
- SKU
- EL1084
- Lifecycle
- Active
12 months warranty
Warranty coverage and terms are confirmed with your order.
Fast shipping
We coordinate the fastest available shipping option for your destination.
Secure payment
Available payment methods are handled through secure payment channels.
Worldwide delivery
Carrier and delivery options are confirmed for your destination before dispatch.
Independent supplier: Xindustra is not an authorized distributor, reseller, or representative of Beckhoff. Brand names are used for identification and compatibility purposes only. Read disclaimer
Technical specifications
Beckhoff manufacturer data for EL1084.
Product identification and input data
- Manufacturer part number
- EL1084
- Product family
- Beckhoff EL1xxx
- Product type
- EtherCAT digital input terminal
- Number of inputs
- 4
- Nominal voltage
- 24 V DC (-15%/+20%)
- Connection technology
- 2-wire
- Input specification
- Ground-switching: 0 = 18–30 V DC; 1 = 0–7 V DC
- Input filter
- typ. 3 ms
- Input current
- typ. 3 mA
- E-bus current consumption
- typ. 90 mA
- Electrical isolation
- 500 V (E-bus/field potential)
- Model characteristic
- Switching to negative potential
- Protection rating
- IP20
- Operating temperature
- 0 to +55 °C
- Dimensions (W × H × D)
- 12 × 100 × 68 mm
- Weight
- approx. 50 g
- Lifecycle
- Active
Sourcing and order support
Order the exact product and condition your project requires, with assistance from quotation through delivery.
Condition options
Tell us whether you need new original, new surplus, used, refurbished or repaired equipment.
International delivery
Shipping options are prepared around your destination, quantity and requested delivery date.
Documentation support
Access available manufacturer product data, manuals and certificates associated with the order number.
Request pricing and availability
Send quantity and destination so we can confirm your Beckhoff EL1084 requirement.
Request a quote
