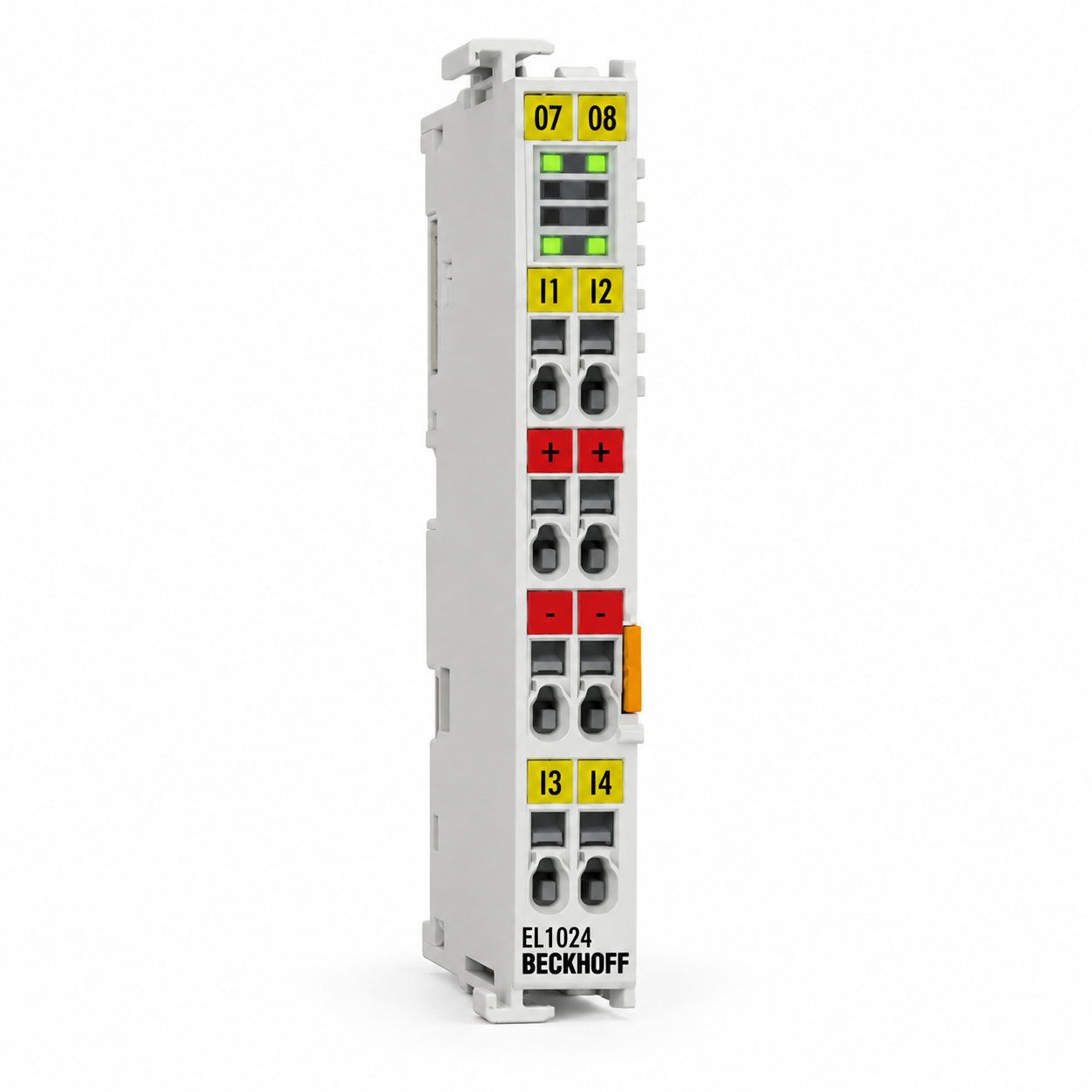

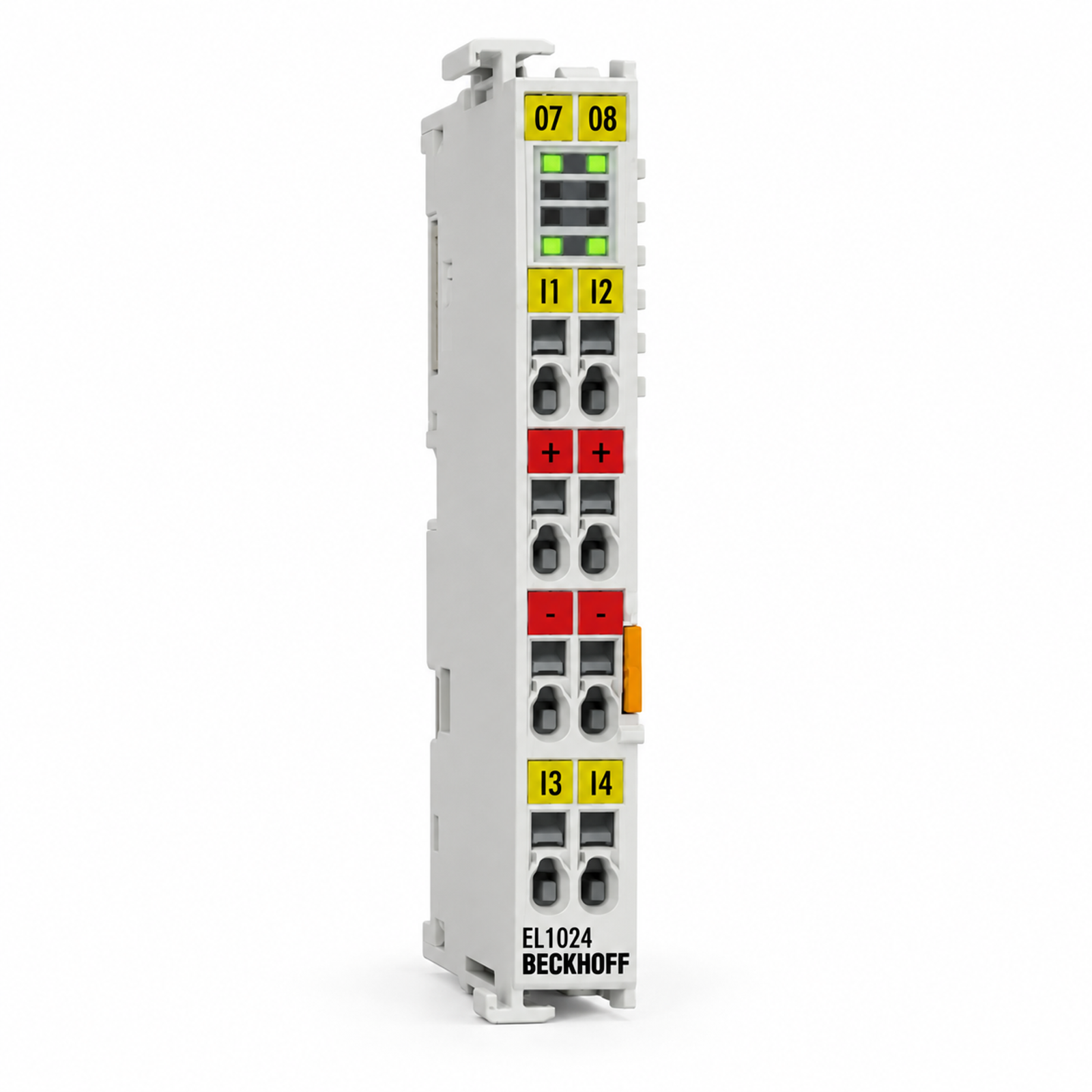

Beckhoff EL1024 4-Channel Digital Input EtherCAT Terminal
EL1024
Beckhoff EL1024 is a 4-channel EtherCAT digital input terminal for 24 V DC signals, with 2-wire connection technology, EN 61131-2 type 2 inputs and a typical 3 ms filter.
- Availability
- In Stock
- Manufacturer
- Beckhoff
- Condition
- New Original
- SKU
- EL1024
- Lifecycle
- Active
12 months warranty
Warranty coverage and terms are confirmed with your order.
Fast shipping
We coordinate the fastest available shipping option for your destination.
Secure payment
Available payment methods are handled through secure payment channels.
Worldwide delivery
Carrier and delivery options are confirmed for your destination before dispatch.
Independent supplier: Xindustra is not an authorized distributor, reseller, or representative of Beckhoff. Brand names are used for identification and compatibility purposes only. Read disclaimer
Technical specifications
Beckhoff manufacturer data for EL1024.
Product identification and input data
- Manufacturer part number
- EL1024
- Product family
- Beckhoff EL1xxx
- Product type
- EtherCAT digital input terminal
- Number of inputs
- 4
- Nominal voltage
- 24 V DC (-15%/+20%)
- Connection technology
- 2-wire
- Input specification
- EN 61131-2, type 2
- Input filter
- typ. 3 ms
- Input current
- typ. 6 mA
- E-bus current consumption
- typ. 90 mA
- Electrical isolation
- 500 V (E-bus/field potential)
- Model characteristic
- Type 2 input characteristic
- Protection rating
- IP20
- Operating temperature
- 0 to +55 °C
- Dimensions (W × H × D)
- 12 × 100 × 68 mm
- Weight
- approx. 50 g
- Lifecycle
- Active
