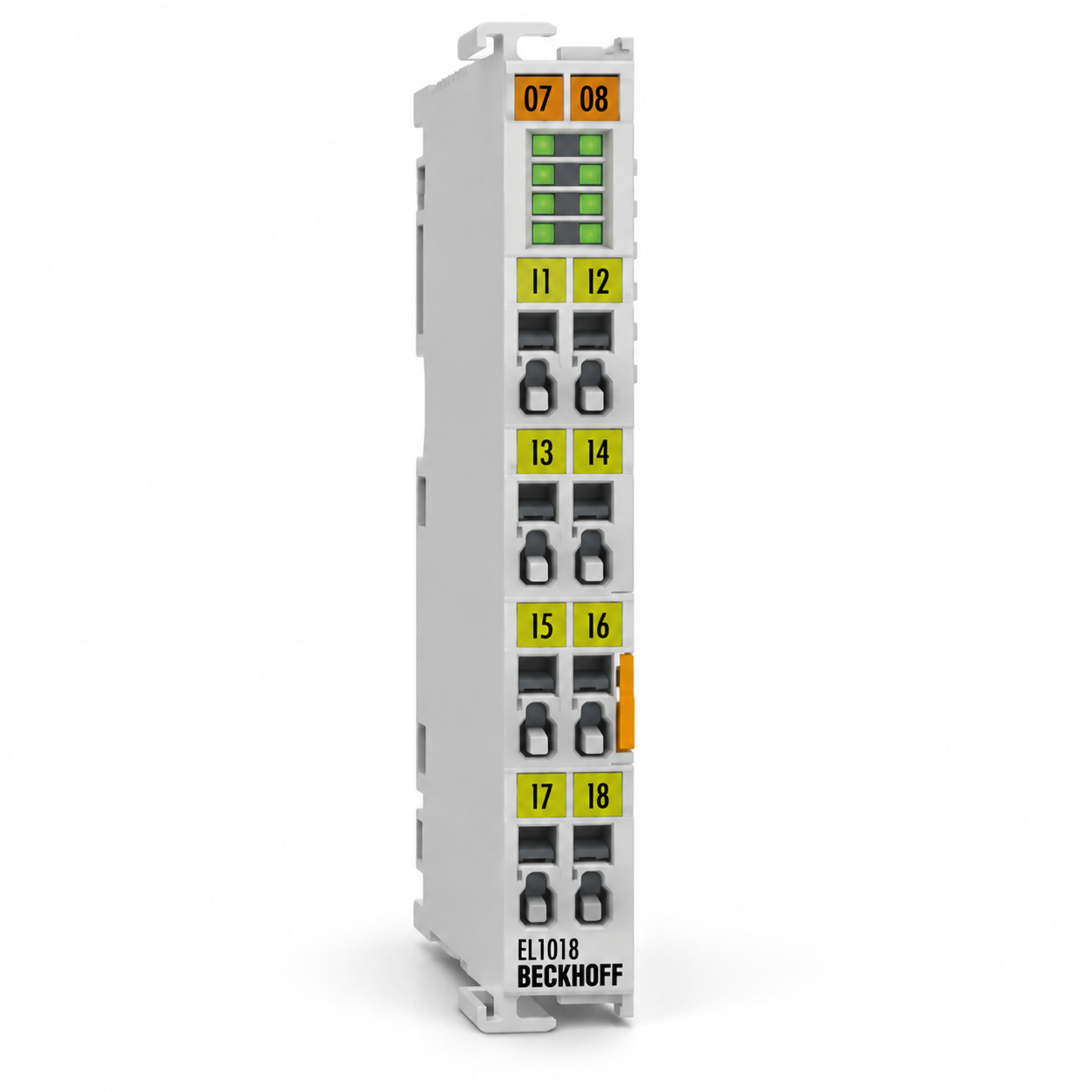

Beckhoff EL1018 8-Channel Digital Input EtherCAT Terminal
EL1018
Beckhoff EL1018 is a fast 8-channel EtherCAT digital input terminal for 24 V DC binary control signals, with 1-wire connection technology and a typical 10 µs input filter.
- Availability
- In Stock
- Manufacturer
- Beckhoff
- Condition
- New Original
- SKU
- EL1018
- Lifecycle
- Active
12 months warranty
Warranty coverage and terms are confirmed with your order.
Fast shipping
We coordinate the fastest available shipping option for your destination.
Secure payment
Available payment methods are handled through secure payment channels.
Worldwide delivery
Carrier and delivery options are confirmed for your destination before dispatch.
Independent supplier: Xindustra is not an authorized distributor, reseller, or representative of Beckhoff. Brand names are used for identification and compatibility purposes only. Read disclaimer
Technical specifications
Beckhoff manufacturer data for EL1018.
Product identification and input data
- Manufacturer part number
- EL1018
- Product family
- Beckhoff EL1xxx
- Product type
- EtherCAT digital input terminal
- Number of inputs
- 8
- Nominal voltage
- 24 V DC (-15%/+20%)
- Connection technology
- 1-wire
- Input specification
- EN 61131-2, type 1/3
- Input filter
- typ. 10 µs
- Input current
- typ. 3 mA
- E-bus current consumption
- typ. 90 mA
- Electrical isolation
- 500 V (E-bus/field potential)
- Protection rating
- IP20
- Operating temperature
- -25 to +60 °C
- Dimensions (W × H × D)
- 12 × 100 × 68 mm
- Weight
- approx. 55 g
- Lifecycle
- Active
