Exact product identification
Your quotation references the complete manufacturer part number to keep the requested product clear.

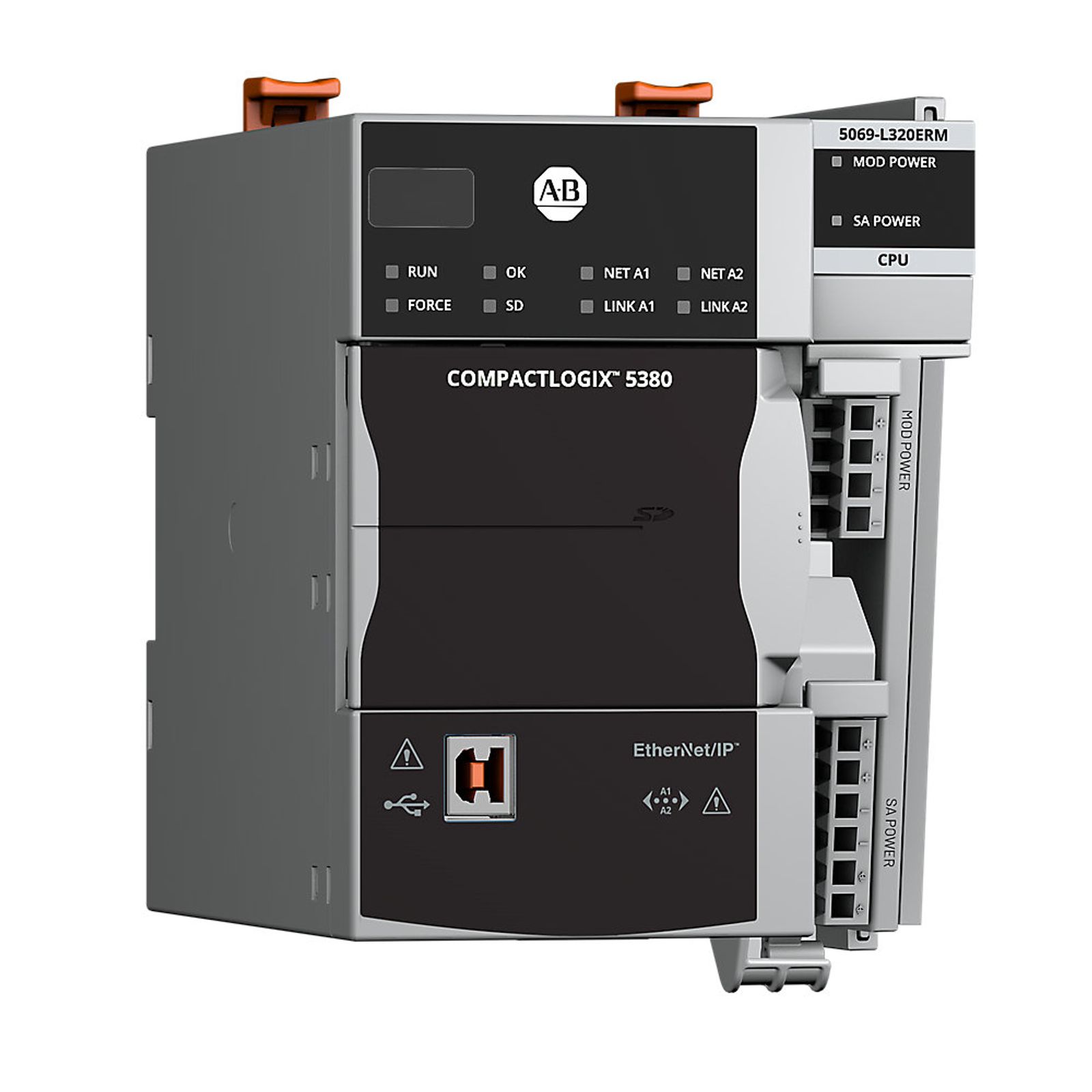

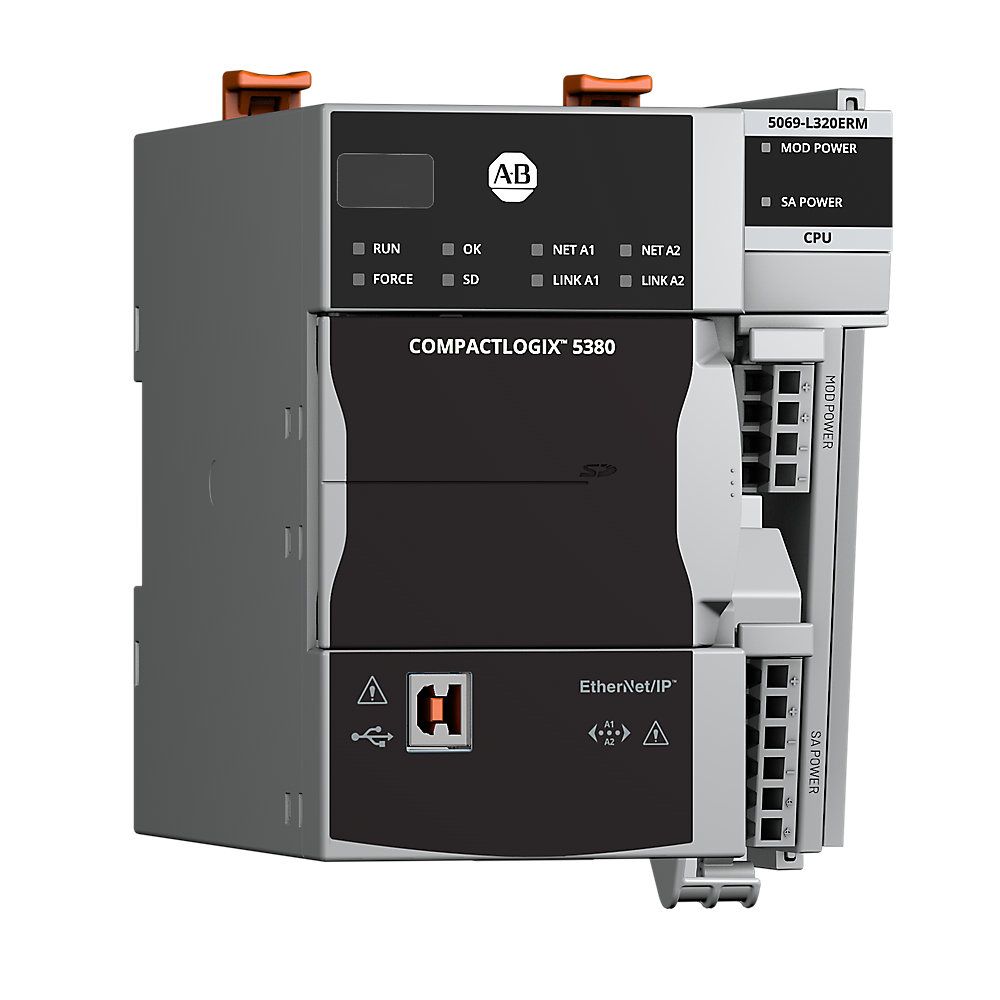

Allen-Bradley CompactLogix 5380 Motion Controller 5069-L320ERM
5069-L320ERM
CompactLogix 5380 motion controller with 2 MB user memory, support for up to 16 local Compact 5000 I/O modules, 40 EtherNet/IP nodes and 8 integrated motion axes.
- Availability
- In Stock
- Condition
- New Original
- SKU
- 5069-L320ERM
- Lifecycle
- Active
12 months warranty
Warranty coverage and terms are confirmed with your order.
Fast shipping
We coordinate the fastest available shipping option for your destination.
Secure payment
Available payment methods are handled through secure payment channels.
Worldwide delivery
Carrier and delivery options are confirmed for your destination before dispatch.
Independent supplier: Xindustra is not an authorized distributor, reseller, or representative of Allen-Bradley. Brand names are used for identification and compatibility purposes only. Read disclaimer
Technical specifications
Verified Rockwell Automation technical and ordering data for 5069-L320ERM.
- Manufacturer part number
5069-L320ERM
- Brand
Allen-Bradley
- Controller family
CompactLogix 5380
- Product type
Motion controller
- UPC
889508071336
- Manufacturer lifecycle
Active
- User memory
2 MB
- Maximum local Compact 5000 I/O modules
16
- Maximum EtherNet/IP nodes
40
- Integrated motion axes
8
- Processor
Quad core
- Power dissipation at full load
8.5 W
- Ethernet interface
2 × 1 Gb EtherNet/IP ports
- Additional communication
USB
- Embedded network support
DLR, linear and dual-IP configurations
- MOD power range
18–32 V DC
- Isolation
300 V continuous
- Mounting
DIN rail
- Enclosure
Open-style
- Operating temperature
0–60 °C
- Height
123 mm
- Depth
136.81 mm
Confirm the local I/O, network, motion, firmware and terminal requirements before selecting 5069-L320ERM.
Compact 5000 I/O
Up to 16 local modules The controller supports a local bank of up to 16 Compact 5000 I/O modules; select modules and field-power arrangements for the application.
EtherNet/IP devices
Up to 40 nodes Two embedded 1 Gb EtherNet/IP ports support networked I/O and automation devices within the controller's node limit.
Integrated motion
Up to 8 axes The ERM variant provides 8 integrated motion axes over EtherNet/IP for applications that require coordinated motion control.
Confirm removable terminal kits
Ordered separately Rockwell Automation notes that 5380 controllers require the appropriate 5069-RTB64-SCREW or 5069-RTB64-SPRING terminal kit.
Confirm ER or ERM variant
Motion-capable model 5069-L320ERM provides 8 integrated motion axes. The paired 5069-L320ER has no integrated motion-axis capacity.
Selection and replacement checks
Do not substitute another 5069 controller based on enclosure appearance alone. Verify the complete catalog number, capacity, motion capability, firmware and accessory requirements.
Downloads and documentation
Use current Rockwell Automation documentation for system design, installation and commissioning.
5069-L320ERM product pageProduct data · Exact MPN · English · WebOpen resource5069-L320ERM cut sheetProduct cut sheet · Exact MPN · English · WebOpen resourceCompactLogix 5380 controller specificationsTechnical data · English · PDFDownloadCompactLogix 5380 installation instructionsInstallation instructions · English · PDFDownloadCompactLogix 5380 user manualUser manual · English · PDFDownloadIntegrated motionReference resourceThe ERM variant provides 8 integrated motion axes over EtherNet/IP for applications that require coordinated motion control.Download
Sourcing and order support
Order the exact product and condition your project requires, with assistance from quotation through delivery.
Condition options
Tell us whether you need new original, new surplus, used, refurbished or repaired equipment.
International delivery
Shipping options are prepared around your destination, quantity and requested delivery date.
Documentation support
Access available manufacturer product data, manuals and certificates associated with the order number.
5069-L320ERM questions
Answers to common identification and selection questions for this exact controller.
How much user memory does 5069-L320ERM provide?
Rockwell Automation specifies 2 MB of user memory for 5069-L320ERM.
How many local I/O modules and EtherNet/IP nodes does it support?
The controller supports up to 16 local Compact 5000 I/O modules and up to 40 EtherNet/IP nodes.
How many integrated motion axes does 5069-L320ERM support?
Rockwell Automation lists 8 integrated motion axes for 5069-L320ERM.
What is the difference between 5069-L320ERM and 5069-L320ER?
Both use the 2 MB capacity tier, but 5069-L320ER has no integrated motion-axis capacity, while 5069-L320ERM supports 8 integrated motion axes.
What is the lifecycle status of 5069-L320ERM?
Rockwell Automation currently lists 5069-L320ERM as Active.
