Exact product identification
Your quotation references the complete manufacturer part number to keep the requested product clear.

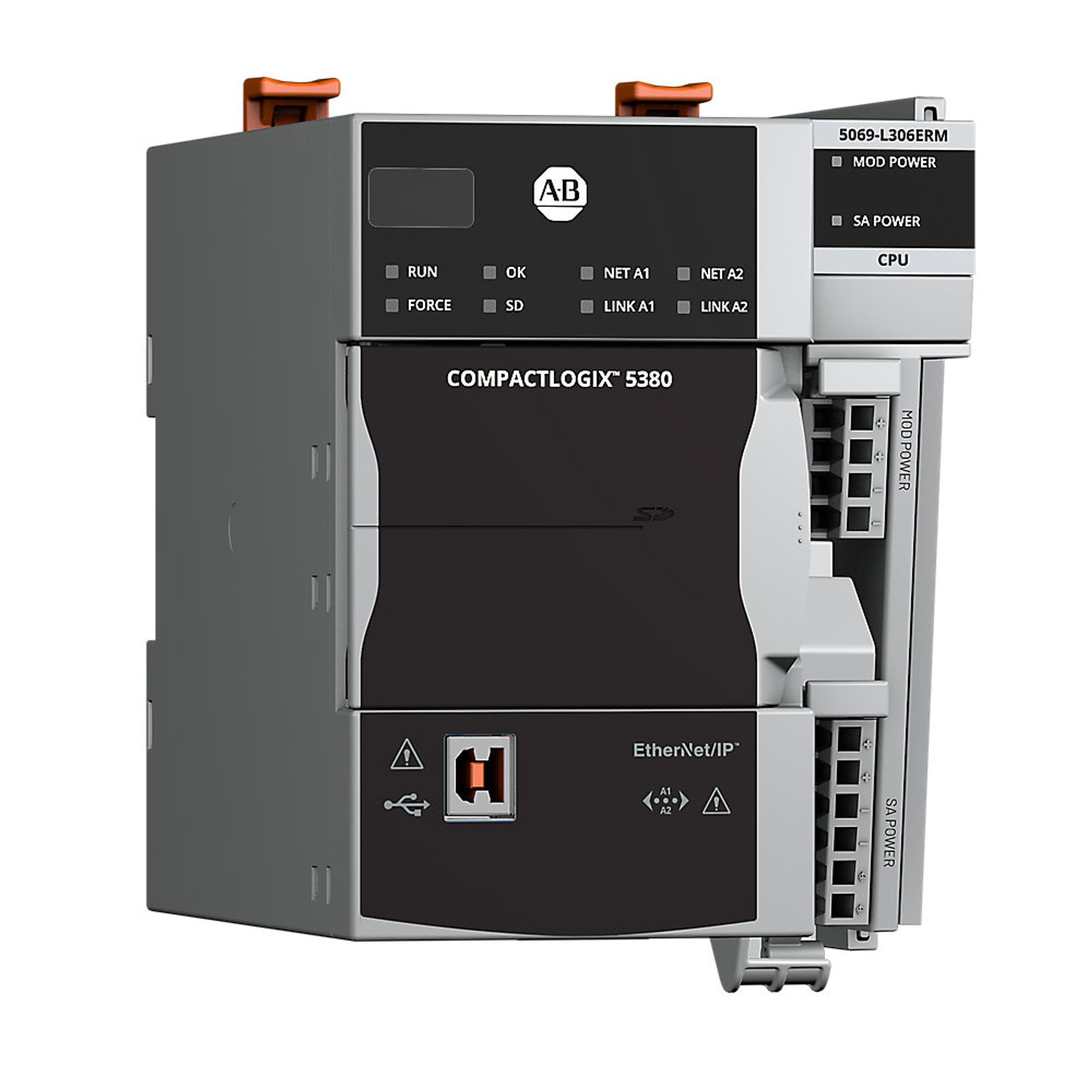

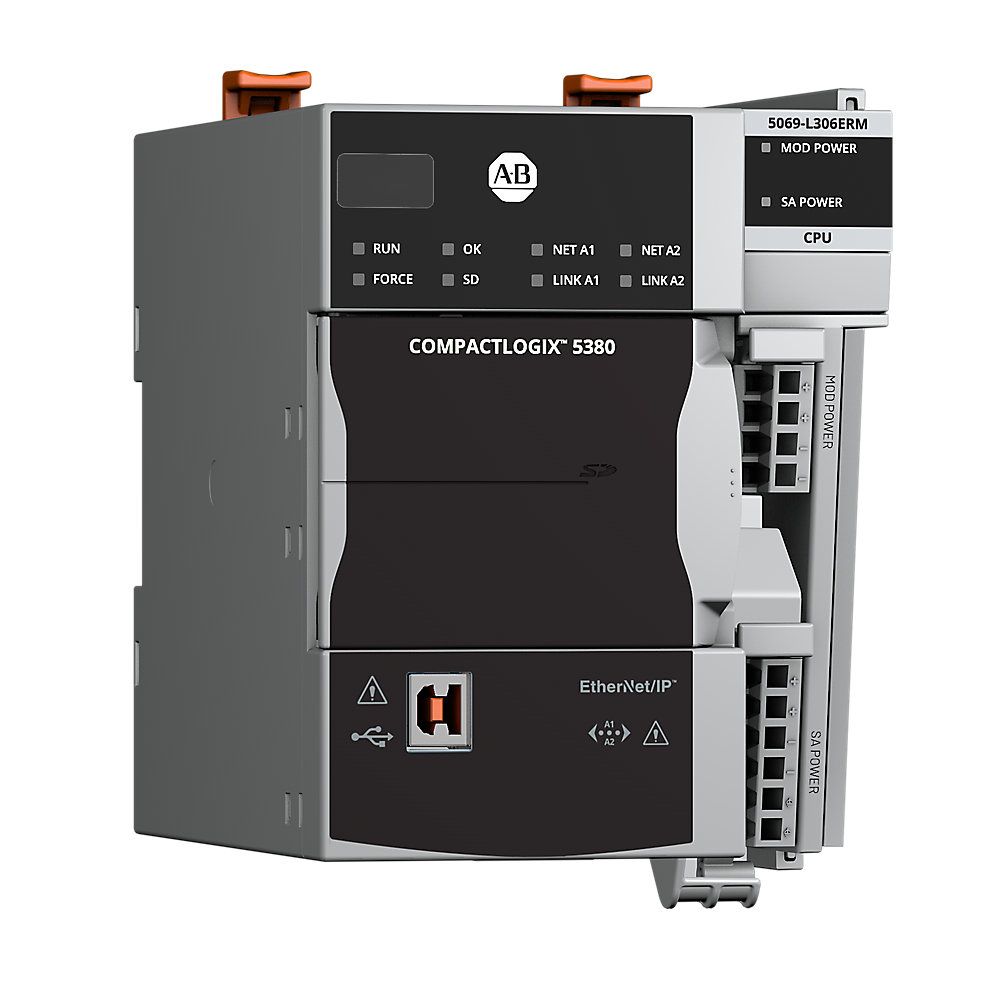

Allen-Bradley CompactLogix 5380 Motion Controller 5069-L306ERM
5069-L306ERM
CompactLogix 5380 motion controller with 600 KB user memory, support for up to eight local Compact 5000 I/O modules, 16 EtherNet/IP nodes and two integrated motion axes.
- Availability
- In Stock
- Manufacturer
- Allen-Bradley
- Condition
- New Original
- SKU
- 5069-L306ERM
- Lifecycle
- Active
12 months warranty
Warranty coverage and terms are confirmed with your order.
Fast shipping
We coordinate the fastest available shipping option for your destination.
Secure payment
Available payment methods are handled through secure payment channels.
Worldwide delivery
Carrier and delivery options are confirmed for your destination before dispatch.
Independent supplier: Xindustra is not an authorized distributor, reseller, or representative of Allen-Bradley. Brand names are used for identification and compatibility purposes only. Read disclaimer
Technical specifications
Verified Rockwell Automation technical and ordering data for 5069-L306ERM.
Product identification
- Manufacturer part number
- 5069-L306ERM
- Brand
- Allen-Bradley
- Controller family
- CompactLogix 5380
- Product type
- Motion controller
- UPC
- 889508071312
- Manufacturer lifecycle
- Active
Compatibility and selection
Confirm the local I/O, network, motion, firmware and terminal requirements before selecting 5069-L306ERM.
CompactLogix 5380 platform fit
Image placeholder
Up to 8 local modules
Compact 5000 I/O
The controller supports a local bank of up to eight Compact 5000 I/O modules; select modules and field-power arrangements for the application.
Image placeholder
Up to 16 nodes
EtherNet/IP devices
Two embedded 1 Gb EtherNet/IP ports support networked I/O and automation devices within the controller's node limit.
Image placeholder
Up to 2 axes
Integrated motion
The ERM variant adds two integrated motion axes over EtherNet/IP for applications that require coordinated motion control.
Before ordering or replacement
Image placeholder
Ordered separately
Confirm removable terminal kits
Rockwell Automation notes that 5380 controllers require the appropriate 5069-RTB64-SCREW or 5069-RTB64-SPRING terminal kit.
Image placeholder
Motion-capable model
Confirm ER or ERM variant
5069-L306ERM provides two integrated motion axes. The paired 5069-L306ER has the same memory tier but no integrated motion-axis capacity.
Do not substitute another 5069 controller based on enclosure appearance alone. Verify the complete catalog number, motion capacity, firmware and accessory requirements.
Downloads and documentation
Use current Rockwell Automation documentation for system design, installation and commissioning.
5069-L306ERM product pageProduct data · English · Web5069-L306ERM cut sheetProduct cut sheet · English · WebCompactLogix 5380 controller specificationsTechnical data · English · PDFCompactLogix 5380 installation instructionsInstallation instructions · English · PDFCompactLogix 5380 user manualUser manual · English · PDF
Sourcing and order support
Order the exact product and condition your project requires, with assistance from quotation through delivery.
Condition options
Tell us whether you need new original, new surplus, used, refurbished or repaired equipment.
International delivery
Shipping options are prepared around your destination, quantity and requested delivery date.
Documentation support
Access available manufacturer product data, manuals and certificates associated with the order number.
5069-L306ERM questions
Answers to common identification and selection questions for this exact controller.
How much user memory does 5069-L306ERM provide?
Rockwell Automation specifies 600 KB of user memory for 5069-L306ERM.
How many local I/O modules and EtherNet/IP nodes does it support?
The controller supports up to eight local Compact 5000 I/O modules and up to 16 EtherNet/IP nodes.
How many integrated motion axes does 5069-L306ERM support?
Rockwell Automation lists two integrated motion axes for 5069-L306ERM.
What is the difference between 5069-L306ER and 5069-L306ERM?
Both use the 600 KB capacity tier, but 5069-L306ERM supports two integrated motion axes while 5069-L306ER has no integrated motion-axis capacity.
What is the lifecycle status of 5069-L306ERM?
Rockwell Automation currently lists 5069-L306ERM as Active.
Request pricing and availability
Send the required quantity, destination and application details so we can confirm 5069-L306ERM for your order.
