Exact product identification
Your quotation references the complete manufacturer part number to keep the requested product clear.

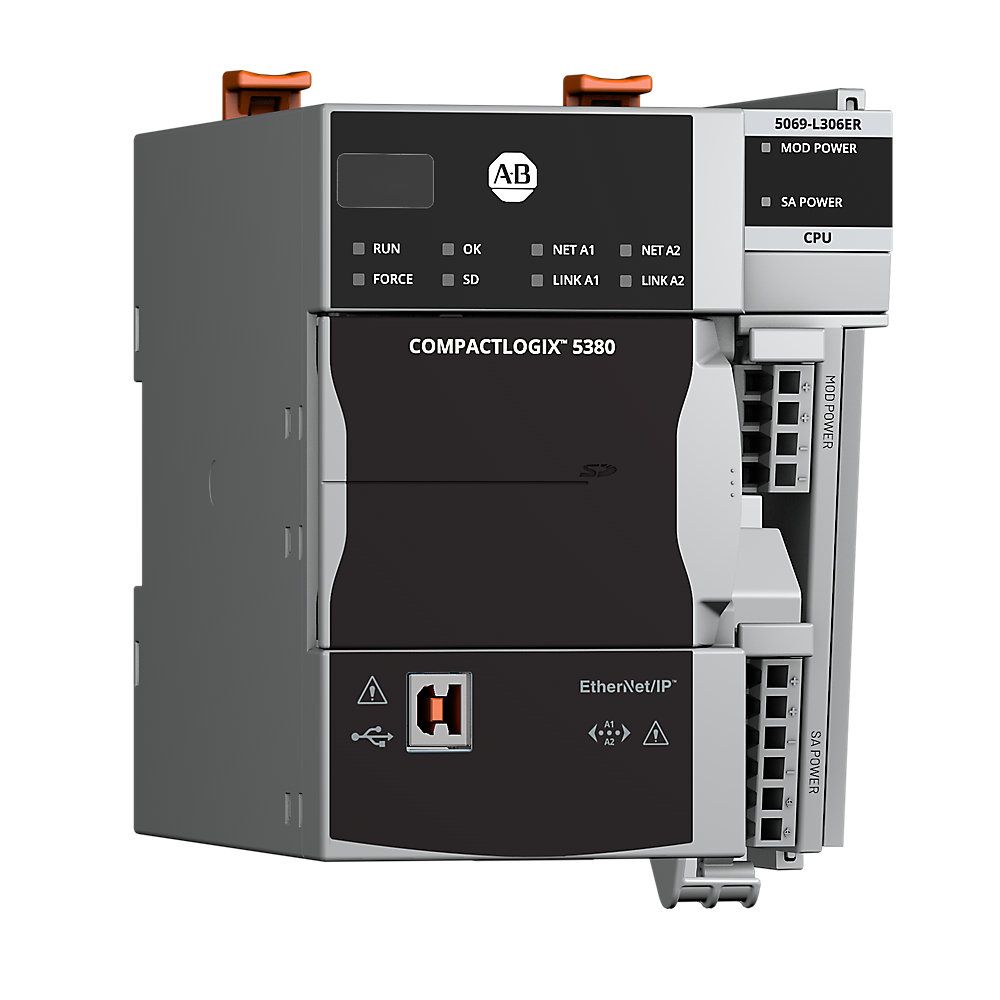

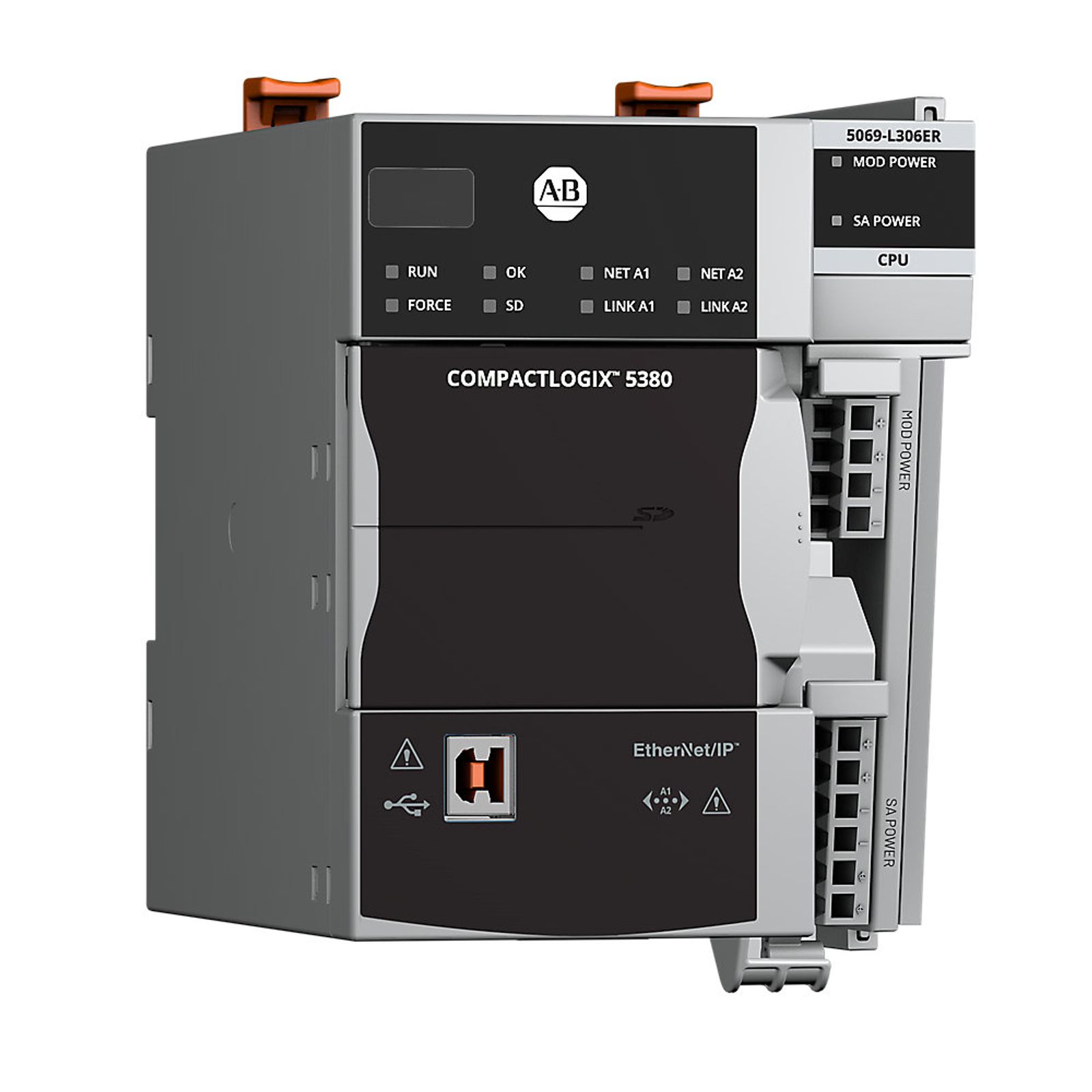

Allen-Bradley CompactLogix 5380 Controller 5069-L306ER
5069-L306ER
CompactLogix 5380 standard controller with 600 KB user memory, support for up to eight local Compact 5000 I/O modules and 16 EtherNet/IP nodes, dual 1 Gb Ethernet ports and no integrated motion axes.
- Availability
- In Stock
- Condition
- New Original
- SKU
- 5069-L306ER
- Lifecycle
- Active
12 months warranty
Warranty coverage and terms are confirmed with your order.
Fast shipping
We coordinate the fastest available shipping option for your destination.
Secure payment
Available payment methods are handled through secure payment channels.
Worldwide delivery
Carrier and delivery options are confirmed for your destination before dispatch.
Independent supplier: Xindustra is not an authorized distributor, reseller, or representative of Allen-Bradley. Brand names are used for identification and compatibility purposes only. Read disclaimer
Technical specifications
Verified Rockwell Automation technical and ordering data for 5069-L306ER.
- Manufacturer part number
5069-L306ER
- Brand
Allen-Bradley
- Controller family
CompactLogix 5380
- Product type
Standard controller
- UPC
889508071268
- Manufacturer lifecycle
Active
- User memory
600 KB
- Maximum local Compact 5000 I/O modules
8
- Maximum EtherNet/IP nodes
16
- Integrated motion axes
None
- Processor
Quad core
- Display and indication
Digit display and status LEDs
- Ethernet interface
2 × 1 Gb EtherNet/IP ports
- Additional communication
USB
- Embedded network support
DLR, linear and dual-IP configurations
- MOD power range
18–32 V DC
- Isolation
300 V continuous
- Special feature
Embedded power transfer
- Mounting
DIN rail
- Enclosure
Open-style
- Operating temperature
0–60 °C
- Width
98.1 mm
- Height
123 mm
- Depth
136.81 mm
Confirm the local I/O, network, firmware and terminal requirements before selecting 5069-L306ER.
Compact 5000 I/O
Up to 8 local modules The controller supports a local bank of up to eight Compact 5000 I/O modules; select modules and field-power arrangements for the application.
EtherNet/IP devices
Up to 16 nodes Two embedded 1 Gb EtherNet/IP ports support networked I/O and automation devices within the controller's node limit.
Confirm removable terminal kits
Ordered separately Rockwell Automation notes that 5380 controllers require the appropriate 5069-RTB64-SCREW or 5069-RTB64-SPRING terminal kit.
Confirm motion requirements
No integrated axes 5069-L306ER has no integrated motion-axis capacity. Select the 5069-L306ERM only when its two-axis capability and full specifications match the application.
Selection and replacement checks
Do not substitute another 5069 controller based on enclosure appearance alone. Verify the complete catalog number, capacity, firmware and accessory requirements.
Downloads and documentation
Use current Rockwell Automation documentation for system design, installation and commissioning.
5069-L306ER product pageProduct data · Exact MPN · English · WebOpen resource5069-L306ER cut sheetProduct cut sheet · Exact MPN · English · WebOpen resourceCompactLogix 5380 controller specificationsTechnical data · English · PDFDownloadCompactLogix 5380 installation instructionsInstallation instructions · English · PDFDownloadCompactLogix 5380 user manualUser manual · English · PDFDownloadConfirm motion requirementsReference resource5069-L306ER has no integrated motion-axis capacity. Select the 5069-L306ERM only when its two-axis capability and full specifications match the application.Download
Sourcing and order support
Order the exact product and condition your project requires, with assistance from quotation through delivery.
Condition options
Tell us whether you need new original, new surplus, used, refurbished or repaired equipment.
International delivery
Shipping options are prepared around your destination, quantity and requested delivery date.
Documentation support
Access available manufacturer product data, manuals and certificates associated with the order number.
5069-L306ER questions
Answers to common identification and selection questions for this exact controller.
How much user memory does 5069-L306ER provide?
Rockwell Automation specifies 600 KB of user memory for 5069-L306ER.
How many local I/O modules and EtherNet/IP nodes does it support?
The controller supports up to eight local Compact 5000 I/O modules and up to 16 EtherNet/IP nodes.
Does 5069-L306ER support integrated motion axes?
No. The official selection data lists no integrated motion axes for 5069-L306ER; 5069-L306ERM is the paired two-axis motion variant.
What is the lifecycle status of 5069-L306ER?
Rockwell Automation currently lists 5069-L306ER as Active.
Request pricing and availability
Send the required quantity, destination and application details so we can confirm 5069-L306ER for your order.
Request a quote
