What are the main characteristics and common applications of the Mitsubishi FX Series PLCs?
The Mitsubishi FX Series is a family of compact, all-in-one programmable logic controllers designed primarily for small to medium-scale automation tasks. Its main characteristics include an integrated CPU and I/O in a single unit, making it cost-effective and space-efficient. Different sub-series (like FX1N, FX2N, FX3U, FX5U) have evolved to offer varying levels of processing speed, I/O capacity, and communication options. Common applications for the FX Series span a wide range of industries: Small Machines: Packaging machines, textile machinery, material handling equipment. Building Automation: HVAC systems, lighting control. Basic Process Control: Water treatment, simple batching. General Industrial Automation: Conveyor systems, pump control, laboratory equipment. Its user-friendly programming environment (typically GX Developer or GX Works2/3 for newer models) also makes it popular for educational purposes and first-time automation users.
What options are available for expanding the I/O and communication capabilities of an FX Series PLC?

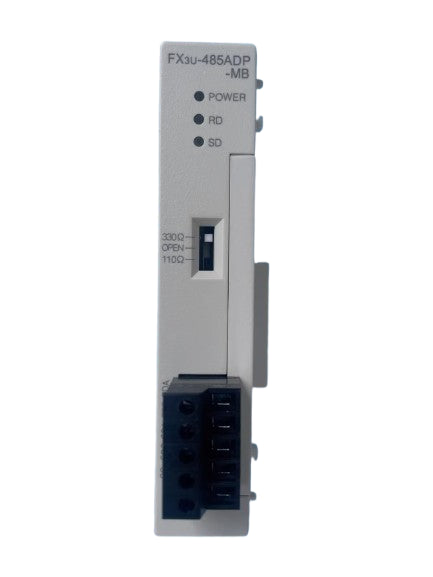

Despite their compact size, FX Series PLCs are designed with impressive expansion capabilities. Users can increase their I/O count by adding various digital and analog expansion modules directly to the main CPU unit. These modules typically snap on or connect via a dedicated bus. For communication, FX Series PLCs offer several options depending on the specific model: Serial Communication: Many models have built-in RS-232/485 ports, supporting protocols like Modbus RTU, ideal for connecting to HMIs, barcode readers, or temperature controllers. Ethernet Modules: Newer generations (like FX3U and especially FX5U) offer built-in Ethernet ports or optional Ethernet modules, enabling integration into broader factory networks using protocols like Modbus TCP/IP. Special Function Modules: Dedicated modules are available for advanced functions such as high-speed counting, pulse output for stepper/servo control, temperature sensing, and specific fieldbus communications. This modularity ensures that FX Series PLPLCs can be tailored to meet diverse application requirements while maintaining a compact footprint.
If I have an older FX Series PLC, what should I consider for an upgrade or replacement in a modern system?

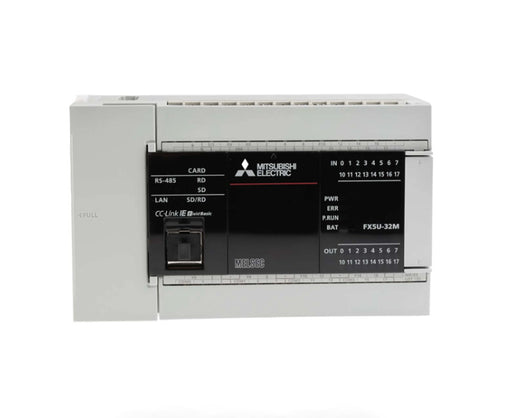

Upgrading from an older FX Series PLC often involves moving to a newer generation within the same family, most notably the FX5U series. This offers significant advantages in processing speed, built-in features (like Ethernet and analog I/O), and expanded connectivity. Key considerations for an upgrade: Software Compatibility: Older programs (e.g., from GX Developer) will need to be converted using GX Works3 for the FX5U. This process is generally straightforward but may require verification. Wiring Changes: While physical dimensions are similar, I/O terminal layouts or wiring conventions might differ slightly, requiring adjustments during replacement. Module Compatibility: Existing FX Series expansion modules are generally not directly compatible with the FX5U. You'll likely need to replace existing expansion modules with FX5U-specific ones if you migrate. Enhanced Functionality: Leverage the upgrade as an opportunity to implement advanced features like more robust networking, integrated motion control, or data logging that newer models offer. Consulting your documentation or a Mitsubishi specialist is highly recommended for a smooth and efficient migration process.
